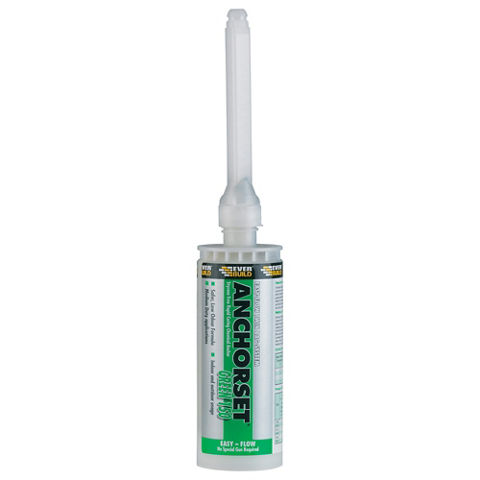

EVERBUILD® ANCHORSET® GREEN 150

EVERBUILD® ANCHORSET® GREEN 150

styrene free rapid curing chemical anchor

EVERBUILD® ANCHORSET® GREEN 150 is a styrene free rapid curing chemical anchoring system designed for high strength fixing of railings, satellite dishes, signs, brackets and other fixtures which carry heavy loads. The unique EASY-FLOW technology of EVERBUILD® ANCHORSET® GREEN 150 means the twin bag system within the cartridge enables the product to be applied using a standard cartridge gun.

  • Easy mix twin bag system.
  • Styrene free low odour.
  • Apply using a standard sealant gun.
  • Rapid curing system.
Product Data Sheet Show all documents

Usage

  • Fixing wall ties.
  • Bolts and screws into a wide range of building substrates.
  • Securing machinery into floors.
  • Fixing studs and starter bars.
  • Can be applied in dry, wet or flooded conditions.


Advantages

  • Easy mix twin bag system.
  • Styrene free low odour.
  • Apply using a standard sealant gun.
  • Rapid curing system.

Packaging

150 ml Cartridge.

Colour

Grey

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • ETA according ETAG 001 Part 1 & 5 Option 7 for anchoring of threaded bars into uncracked concrete
  • ETA according to ETAG 029 for masonry installations
  • Tested according to LEED 2009
  • EQ c4.1, SCAQMD rule 1168 (2005)
Product Information

Shelf Life

Use within 12 months of date of manufacture.

Storage Conditions

Store in cool dry conditions between 5 °C and 25 °C out of direct sunlight.

Density

1.7 g/cm³ (mixed)
Technical Information

Compressive Strength

60 N/mm² 24 hrs   (ASTM D695 @ 20 °C)

70 N/mm² 7 days

Tensile Strength

11.5 N/mm² 24 hours (ASTM D638 @ 20 °C)

12.2 N/mm2 7 days

Application

Application Information

Mixing Ratio

10:1 by volume as supplied in cartridge.

Curing Time

Temperature (°C)

Gel Time (Minutes)

Minimum Loading Time (Minutes)

>5

18

145

5-10

10

145

10-20

6

85

20-25550
25-30440
>30435
Consumption

Consumption

ANCHOR

SIZE

(mm)

HOLE

DIAMETER

(mm)

HOLE

DEPTH

(mm)

Min Concrete

member

thickness

hmin (mm)

  Characteristic

Tension

load

NRK(kN)

  Characteristic

Shear

Load

VRk(kN)

  Fixings

per

unit

150ml

8

10

64

100

16

≤2.5

42

10

12

80

110

19.8

≤2.0

29

12

14

96

126

33.2

≤2.5

19

16

18

128

158

48.2

-

11

20

22

160

190

69.4

-

6

24

26

192

222

102.9

-

4
Application steps

SUBSTRATE QUALITY

Drill hole to the correct diameter and depth (see chart for guide), ideally using a rotary percussion machine. For optimum results the hole must be coarse sided. If the holes are produced by diamond drilling the surfaces should be thoroughly roughened. Remove all dust and debris from the hole using a hand air pump or a stiff rotary brush. All bars should be clean and free from oil or grease and all flaking rust should be removed. Threaded rod or studs should be chisel-ended to prevent them being unscrewed from the cured resin.
