SikaForce®-818 L07

SikaForce®-818 L07

High performance non-sagging structural adhesive

SikaForce®-818 L07 is a structural 2-component polyurethane adhesive, which cures at room temperature.It is designed for bonding composite components. The adhesive is characterised by fast curing and strength build-up. While uncured, it has very good non-sag and compressibility behaviour.

  • Very good non-sag behaviour
  • Short curing time
  • High strength and modulus for structural bonding applications
  • Low smell
  • Does not contain solvents or PVC

Find a Distributor
Product Data Sheet Safety Data Sheet Show all documents

PRODUCT BENEFITS

  • Very good non-sag behaviour
  • Short curing time
  • High strength and modulus for structural bonding applications
  • Low smell
  • Does not contain solvents or PVC



Usage

SikaForce®-818 L07 is used for various bonding applications in the wind turbine manufacturing process, e.g. the attachment of mounting parts, lightning protection etc. This product is suitable for experienced professional users only. Tests with actual substrates and conditions have to be performed ensuring adhesion and material compatibility.

Packaging



SikaForce®-818 L07 (A)

Can

1 kg
Pail20 kg
Drum240 kg

SikaForce®-050 (B)

Can

0.45 kg

1 kg

5 kg

Pail25 kg
Drum250 kg

SikaForce®-818 L07 (A+B)

MixCan

(6x) 1.45 kg

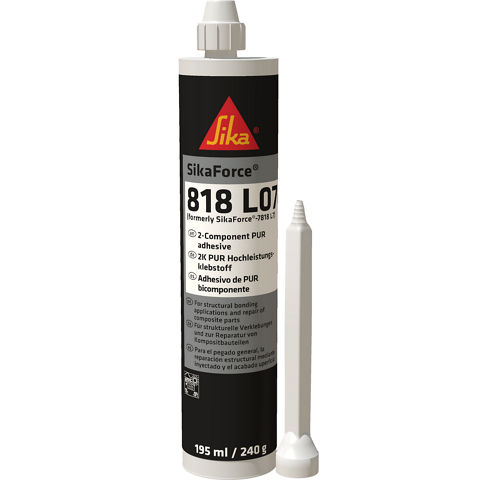

Coaxial cartridge

195 ml

Mixer: MCH 10-24T by Medmix

Dual cartridge

400 ml
Mixer: MFH 10-24T by Medmix



Product Details

Typical Product Data
Properties

Component A

SikaForce®-818 L07

Component B

SikaForce®-050

Chemical base

Polyols

Isocyanate derivatives

Colour (CQP001-1)



mixed

White

Brown

Beige

Cure mechanism

Polyaddition

Density (uncured)



mixed (calculated)

1.25 g/cm3

1.22 g/cm3

1.24 g/cm3

Mixing ratio

by volume

100 : 45

Viscosity (CQP029-4)

25 mm PP, d = 1 mm, 10 s-1

80 Pa·s A

15 Pa·s A

Application temperature

10 ─ 35 °C

Pot life (CQP536-2)

7 minutes A

Open time (CQP046-11 / ISO 4587)

3 minutes A

Shore D hardness (CQP023-1 / ISO 48-4)

75 A, B

Tensile strength (CQP036-2 / ISO 527)

30 MPa A, B, C

Elongation at break (CQP036-2 / ISO 527)

3 % A, B, C

E-Modulus (CQP036-2 / ISO 527)

2 500 MPa A, B, C

Tensile lap-shear strength (CQP046-9 / ISO 4587)

20 MPa A, B, D

Glass transition temperature (CQP509-1 / ISO 6721)

55 °C B

Shelf life

drum

cans and pails

cartridges

12 months

9 months

9 months

24 months

CQP = Corporate Quality Procedure

A) 23 °C / 50 % r. h.

B) cured for 28 days at 23 °C

C) tested at 2 mm/minD) adhesive layer: 25 x 12.5 x 3 mm
Technical Information

CURE MECHANISM

The curing of SikaForce®-818 L07 takes place by a chemical reaction of the two components. Higher temperatures speed up and lower temperatures slow down the curing process. The final glass transition temperature, as well as the tensile and shear strengths, may be increased with higher curing temperature.

CHEMICAL RESISTANCE

In case of chemical or thermal exposure, it is required to conduct project related testing.

Application

Application Information

Surface Preparation

Surfaces must be clean, dry and free from grease, oil, dust and contaminants. After the cleaning process, a physical or chemical pre-treatment might be required, depending on surface and type of material. The type of pre-treatment must be determined by tests.

Application

For the cartridge application use a suitable manual or a compressed air piston-type cartridge dispenser.
To ensure good mixing quality the defined static mixer is to be used.

Extrude adhesive without mixer to equalise the filling levels. Attach the mixer and dispose the first few cm of the bead before the application.

SikaForce®-818 L07 can also be processed from pails with adequate 2-component equipment. For automated applications, contact the System Engineering Department of Sika Industry.

Removal

Uncured SikaForce®-818 L07 may be removed from tools and equipment with Sika® Remover-208. Once cured, the material can only be removed mechanically.

Hands and exposed skin have to be washed immediately using hand wipes such as Sika® Cleaner-350H or a suitable industrial hand cleaner and water.

Do not use solvents on skin.



STORAGE CONDITIONS

SikaForce®-818 L07 has to be kept between 10 °C and 30 °C in a dry place. Do not expose it to direct sunlight or frost. After opening of the packaging, the content has to be protected against humidity.
The lowest allowed temperature during transportation is -20 °C for max. 7 days.
