Sikafloor®-169
Low VOC epoxy resin binder for decorative mortar screeds, terrazzo floorsystems and seal coats
Sikafloor®-169 is a 2-part epoxy resin binder for mortars, screeds, terrazzo floor systems and seal coats. It is used in the aesthetic Sikafloor® Terrazzo and DecoDur range in areas where normal to high mechanical loading and wear is expected.
- Very versatile - can be used as coloured or transparent binder or sealer
- Helps to achieve good indoor air quality due to low VOC emissions
- Good aesthetics over the product's lifetime due to good yellowing resistance
- Low VOC content
- Good mechanical resistance
- Good chemical resistance
- Resistant to staining
- Low viscosity
Usage
The Product can be used as a:- Binder for coloured quartz mortars and screeds
- Coloured binder for Terrazzo floor systems
- Transparent sealer coat for broadcast coloured quartz mortar screeds and Sikafloor® DecoDur systems
Advantages
- Very versatile - can be used as coloured or transparent binder or sealer
- Helps to achieve good indoor air quality due to low VOC emissions
- Good aesthetics over the product's lifetime due to good yellowing resistance
- Low VOC content
- Good mechanical resistance
- Good chemical resistance
- Resistant to staining
- Low viscosity

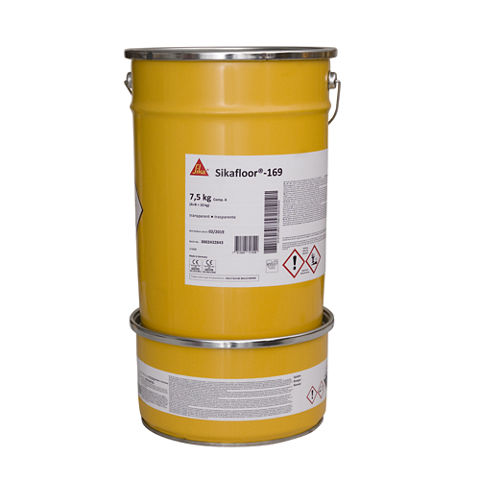

Packaging
Transparent version
| Part A container | 7.50 kg containers |
| Part B container | 2.50 kg containers |
| Part A + Part B | 10 kg unipacks |
Pigmented version
| Part A container | 15 kg containers |
| Part B container | 5 kg containers |
| Part A + Part B | 20 kg unipacks |
Colour
| Part A, transparent | cloudy liquid |
| Part A, coloured | coloured liquid |
| Part B | yellowish, liquid |
| Final floor appearance | Gloss finish |
Note: When the product is exposed to direct sunlight, there may be some discolouration and colour variation. This has no influence on the function and performance of the coating.
Product Details
ENVIRONMENTAL INFORMATION
- Conformity with LEED v4 MRc 2 (Option 1): Building Product Disclosure and Optimization — Environmental Product Declarations
- Conformity with LEED v4 MRc 4 (Option 2): Building Product Disclosure and Optimization — Material Ingredients
- Conformity with LEED v4 EQc 2: Low-Emitting Materials
- IBU Environmental Product Declaration (EPD) available
- VOC emission certificate according to AgBB und DIBt approval requirements
- Class A+ according to French Regulation on VOC emissions
APPROVALS / STANDARDS
- CE Marking and Declaration of Performance to EN 13813:2002 — Screed material and floor screeds — Screed material
- CE Marking and Declaration of Performance to EN 1504-2:2004 — Products and systems for the repair and protection of concrete structures — Part 2: Surface protection systems for concrete — Coating
- Sliding test DIN 51130, Sikafloor®-169, Certificate No. 020109-15-11
- Sliding test DIN 51131, Sikafloor®-169, Roxeler, Certificates No. 020108-13-30a, 020108-13-31a, 020109-15-10a, 020109-15-13a, 020109-15-4a, 020171-14-1a, 020197-15-1a, 020197-15-5a
- Coating compatibility test PV 3.10.7, Sikafloor®-169, HQM, Report No. 14-04-14201871-7
- Biological Stress ISO 846, Sikafloor®-169, CSM Fraunhofer, Certificate No. SI/1008-533
|
|
Chemical Base
Solvent free epoxy
Shelf Life
24 months from date of production
Storage Conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to packaging.
Density
| Part A | ~1.2 kg/l |
| Part B | ~1.0 kg/l |
| Mixed product | ~1.1 kg/l |
Shore D Hardness
~80 (7 days / +23 °C) | (DIN 53 505) |
Abrasion Resistance
| 47 mg | (EN ISO 5470-1) |
Chemical Resistance
Resistant to many chemicals. Contact Sika Technical Services for additional information.
Thermal Resistance
| Short-term, maximum 7 days | +60 °C |
IMPORTANT
No simultaneous mechanical and chemical strain
While the product is exposed to temperatures up to +60 °C, do not also subject it to chemical and/or mechanical strain, as it may cause damage to the product.
Application
Mixing Ratio
| Part A : Part B | 75 : 25 (by weight) |
Product Temperature
| Minimum | +10 °C |
| Maximum | +30 °C |
Ambient Air Temperature
| Minimum | +10 °C |
| Maximum | +30 °C |
Relative Air Humidity
80 % r.h. max
Dew Point
Beware of condensation. The substrate and uncured applied floor material must be at least +3 °C above dew point to reduce the risk of condensation or blooming on the surface of the applied product. Low temperatures and high humidity conditions increase the probability of blooming.
Substrate Temperature
| Minimum | +10 °C |
| Maximum | +30 °C |
Substrate Moisture Content
< 4 % part by weight
Pot Life
| +10 °C | ~60 minutes |
| +20 °C | ~30 minutes |
| +30 °C | ~20 minutes |
Waiting Time / Overcoating
Before overcoating the product, allow:
| Substrate temperature | Minimum | Maximum |
| +10 °C | ~45 hours | ~4 days |
| +20 °C | ~36 hours | ~3 days |
| +30 °C | ~24 hours | ~18 hours |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Applied Product Ready for Use
| Temperature | Foot traffic | Light traffic | Full cure |
| +10 °C | ~3 days | ~5 days | ~10 days |
| +20 °C | ~48 hours | ~3 days | ~7 days |
| +30 °C | ~24 hours | ~48 hours | ~5 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Consumption
| Applied as a seal coat on Sikafloor® smooth substrates | ~0.15 kg/m2 |
| Applied as a seal coat on Sikafloor® broadcast substrates | ~0.6–0.9 kg/m2 |
Note: These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.
EQUIPMENT
MIXING EQUIPMENT
- Electric single paddle mixer (300 to 400 rpm)
- Electric double paddle mixer (> 700 W, 300 to 400 rpm)
- Forced action mixer
MIXING
MIXING PROCEDURE
- Mix Part A (resin) for ~10 seconds with a single paddle mixer (300–400 rpm).
- Add Part B (hardener) to Part A.
- Switch to an electric double paddle mixer (300–400rpm, > 700 W).
- While mixing Parts A + B, gradually add the required filler or aggregates.
- Mix for a further 2 minutes until a uniform mix is achieved.
- To ensure thorough mixing, pour materials into another container and mix again to achieve a smooth and uniform mix.
- During the final mixing stage, scrape down the sides and bottom of the mixing container with a flat or straight edge trowel at least once to ensure complete mixing.
APPLICATION
IMPORTANT
Protect from moisture
After application, protect the Product from damp, condensation and direct water contact for at least 24 hours.
IMPORTANT
Temporary heating
If temporary heating is required, do not use gas, oil, paraffin or other fossil fuel heaters. These produce largequantities of both carbon dioxide and water vapour, which may adversely affect the finish. For heating, use only electric powered warm air blower systems.
BINDER
- Pour the Product onto the surface.
- Apply the Product evenly over the surface with a trowel.
SEAL COAT
- Pour the mixed Product onto the surface. Note: The consumption is specified in Application Information.
- Apply the Product evenly over the surface with a squeegee.
- Back roll the surface in two directions at right angles with a short pile roller. Note: A seamless finish can be achieved if a "wet"edge is maintained during application.
CLEANING OF TOOLS
Clean all tools and application equipment with Sika® Thinner C immediately after use. Hardened material can only be removed mechanically
