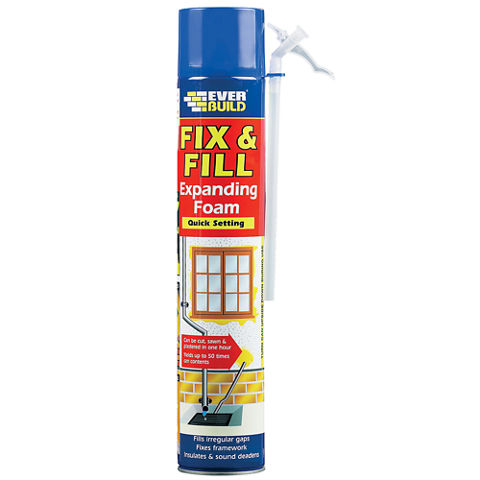

EVERBUILD® FIX & FILL Expanding Foam

EVERBUILD® FIX & FILL Expanding Foam

One-part, quick-setting polyurethane foam

EVERBUILD® FIX & FILL is a quick-setting one-part polyurethane foam in aerosol form. FIX & FILL is supplied with attachable nozzles. The foam expands on application up to 150% its original volume. Once cured the foam can be cut, sawn or plastered over after only one hour providing the working temperatures (can and surfaces) are between +5°C to +30°C, ideally 20°C.

  • Quick setting - can be cut, sawn or plastered in 1 hour.
  • Economical in use - expands up to 55 times its original volume.
  • Fills irregular and broad gaps where most conventional fillers would fail.
  • Possesses insulating and sound deadening properties.
Expansion 41 litres (750ml can) 27 litres  (500ml can)   Cell Structure Medium fine Full Load Bearing Stability App, 24 hours (30mm bead) Working Temps5°C - 30°C. (Optimum 20°C)Temp Res Of Cured Bead Long Term:  -40 to +80°C Short Term: -40 to +100°CBuilding Material ClassB3
Seek a Stockist Contact Us
Product Data Sheet Show all documents

Usage

Filling
  • Gaps around pipe entries through walls
  • Gaps around window frames, door frames
  • Electrical wire chasing prior to plastering
  • Deep joints prior to applying sealant or plaster
  • Irregular gaps in stone, brick, concrete or plaster
Fixing
  • Door frames
  • Timber structures
  • Window sills and thresholds
  • Window frames
Insulating
  • Behind cladding to exterior walls
  • Behind soffit and barge boards


Advantages

  • Quick setting - can be cut, sawn or plastered in 1 hour.
  • Economical in use - expands up to 55 times its original volume.
  • Fills irregular and broad gaps where most conventional fillers would fail.
  • Possesses insulating and sound deadening properties.
Expansion 41 litres (750ml can) 27 litres  (500ml can)   Cell Structure Medium fine Full Load Bearing Stability App, 24 hours (30mm bead) Working Temps5°C - 30°C. (Optimum 20°C)Temp Res Of Cured Bead Long Term:  -40 to +80°C Short Term: -40 to +100°CBuilding Material ClassB3

Packaging

500ml and 750ml aerosol

Product Details

Product Information

Shelf Life

12 months in original containers at stated storage temperatures.

Storage Conditions

Store upright between 10°C and 20°C. Pressurized container. Protect from sunlight and do not expose to temperatures above 50°C. Do not pierce or burn the can even after use. Store as flammable liquid.

Note: Elevated temperatures will reduce shelf life dramatically.
Technical Information

Compressive Strength

2.4-3.1N/cm² (DIN 53427) at 10% stress.

Tensile Strength

4.4-9 N/cm² (DIN 53430)

Shear Strength

4.1-4.7 N/cm² (DIN 53427)

Water Absorption

0.3 Vol % (DIN 53433)

Thermal Conductivity

0.04 W/Mk (DIN 52612)

Application

Application Information

Cutting Time

~150 mins for 30mm

Tack Free Time

~10 minutes
Application steps

SUBSTRATE PREPARATION

Ensure all surfaces are clean, sound and free from dust and loose particles. Moisten surfaces to be sealed with water. This assists the curing process.
