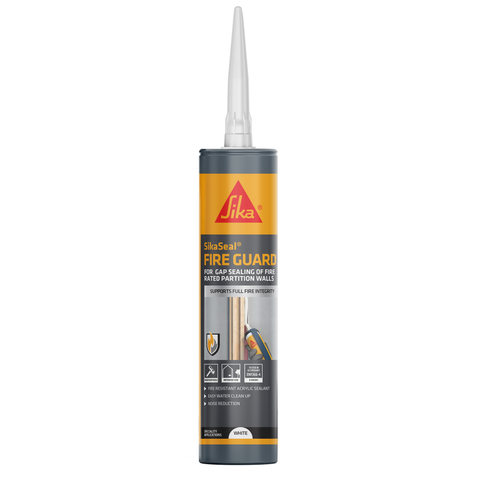

SikaSeal® Fire Guard

For maintaining fire wall integrity

SikaSeal® Fire Guard is a four-hour rated, one part, water based, ablative acoustic sealant that gives a firm yet flexible seal to joints in a variety of internal fire-rated structures. The product, in suitably designed joints, will resist the passage of fire for up to 4 hours.

  • When exposed to heat, SikaSeal® Fire Guard swells greater than 150 % of its original size, creating a char that will resist the passage of fire for up to 4 hours.
  • No priming required for most construction substrates.
  • Permanently flexible with more than 100 % elongation to ISO 8339.
  • For fire resistant joints 12 to 50 mm wide.
  • Excellent acoustic properties for sound deadening; average noise reduction of 24 dB (100-3150 Hz).
  • Non slump - easy to apply and tool off.
  • Fast cure - tack free in 15 minutes.
  • Overpaintable.

Seek a Stockist Contact Us
Product Data Sheet Show all documents

Usage

  • Sealing and filling gaps in fire-rated partition walls and structures.
  • Sealing through gaps in fire-rated walls and service trunkings.
  • Sealing around door frames.
  • Sound deadening around plasterboard panels and joints.
  • Sealing low movement construction joints.

Advantages

  • When exposed to heat, SikaSeal® Fire Guard swells greater than 150 % of its original size, creating a char that will resist the passage of fire for up to 4 hours.
  • No priming required for most construction substrates.
  • Permanently flexible with more than 100 % elongation to ISO 8339.
  • For fire resistant joints 12 to 50 mm wide.
  • Excellent acoustic properties for sound deadening; average noise reduction of 24 dB (100-3150 Hz).
  • Non slump - easy to apply and tool off.
  • Fast cure - tack free in 15 minutes.
  • Overpaintable.


Packaging

295 mL C3 Cartridge

Colour

White and Grey

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • CE / UKCA certified EN 15651-1 F-INT.
  • EN1366-3 (penetration) and EN 1366-4 (linear gap seal) tested up to 4 hours in specific configurations.
  • Certifire CF5026.
  • Acoustic performance ISO 140-3.
  • Air permeability performance EN 13141-1.
Product Information

Chemical Base

VA acrylate binder with filler to deliver fire resistance

Shelf Life

24 Months when stored as directed

Storage Conditions

Store in cool dry conditions between +5 °C and +30 °C. PROTECT FROM FROST
Technical Information

Shore A Hardness

~ 40 (ISO 868)

Elongation

>100 % (ISO 8339)

Shrinkage

<25 % (ISO 10563)

Reaction to Fire

Class E

Resistance to fire

Up to 4 hours

EN 1366-3

EN 1366-4

Service Temperature

-15 °C to +70 °C

Joint Design

Fire performance 12 mm to 50 mm width at half depth

Flow resistance

<3 mm (ISO 7390)

Application

Application Information

Ambient Air Temperature

+5 °C to +35 °C

Substrate Temperature

+5 °C to +35 °C

Curing Time

3 to 5 days dependent on thickness, ambient temperature and humidity

Skin Time

10 minutes depending on conditions
Consumption

Yield

~10.5 linear metres with 6 mm bead
Application steps

SUBSTRATE PREPARATION

All surfaces must be clean, dry and dust free. All loose or flaking surface coatings, and old sealant and mastic joints, should be removed before application.

CLEANING OF TOOLS

Use Sika® Wonder Wipes or wet sponge / cloth when product is wet. Remove cured material mechanically.
