S-Scupper PVC round

Prefabricated PVC roof drain

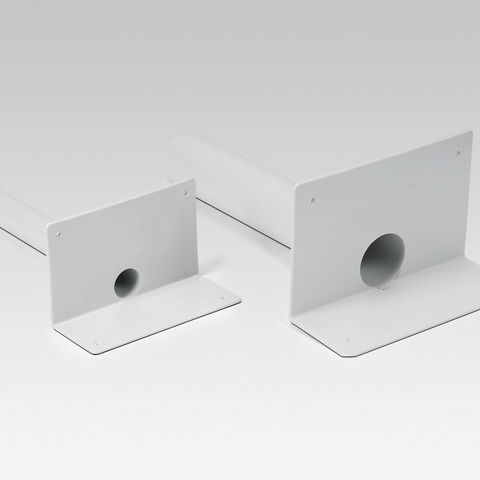

S-Scupper PVC round is a rigid PVC prefabricated injection moulded rainwater outlet through the parapet onflat roofs used with Sika roof sheet membranes which can be heat welded onto the drain.

  • Very good resistance to permanent UV exposure
  • Membrane can be welded directly to the base plate
  • Easy to apply
  • Hot air weldable
  • IMPORTANT Requires named reference to an established recycling programme for post-consumer PVC that is easily accessible for > 65 % of customers and that feeds post-consumer recycling material to production of new products. Delete if no such recycling programme is available.Recyclable through [named] recycling program
Product Data Sheet Show all documents

Product Details

Product Information

Chemical Base

Polyvinyl chloride (PVC)

Shelf Life

5 years from date of production

Storage Conditions

The Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to packaging.

Dimensions

Spigot Ø. outside

Spigot length

Spigot inclination

Base plate

40 mm

450 mm

0°

250 mm × 150 mm × 100 mm

50 mm

450 mm

0°

250 mm × 150 mm × 100 mm

63 mm

465 mm

5°

320 mm × 200 mm × 120 mm

75 mm

465 mm

5°

320 mm × 200 mm × 120 mm

90 mm

465 mm

5°

320 mm × 200 mm × 120 mm

110 mm

490 mm

5°

320 mm × 220 mm × 120 mm

125 mm

490 mm

5°

320 mm × 230 mm × 120 mm

Thickness

3 mm
System information

Compatibility

Compatible with Sikaplan® PVC Roof Waterproofing membranes
Technical Information

Flow rate

Spigot

25 mm height

35 mm height

45 mm height

55 mm height

40 mm

0.15 L/s

0.20 L/s

0.50 L/s

-

50 mm

0.20 L/s

0.30 L/s

0.55 L/s

0.70 L/s

63 mm

0.35 L/s

0.55 L/s

0.80 L/s

1.05 L/s

75 mm

0.35 L/s

0.60 L/s

0.95 L/s

1.25 L/s

90 mm

0.45 L/s

0.75 L/s

1.05 L/s

1.45 L/s

110 mm

0.55 L/s

1.00 L/s

1.50 L/s

2.00 L/s

125 mm

0.55 L/s

1.00 L/s

1.50 L/s

2.10 L/s

Application

Application Information

Ambient Air Temperature

Maximum

+60°C

Minimum

-20°C
Application steps

APPLICATION

IMPORTANT

Strictly follow installation procedures

Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.

IMPORTANT

Application by trained personnel

The application of this Product must only be carried out by an applicator that is trained or approved by Sika. The applicator must also be experienced in this type of application.

IMPORTANT

Ventilation in confined spaces

Always ensure good ventilation when applying the Product in a confined space.

INSTALLATION PROCEDURE

Before applying the roof membrane, fasten the Product securely to the roof deck or parapet.

For mechanically fastened roofs, design the fasteners to resist the wind load forces at the project location.

Reference the current installation instructions for Sarnafil® and Sikaplan® flat-roof waterproofing membranes.

Reference further documentation where applicable, such as relevant method statements, application manuals and installation or working instructions.

Application below +5 °C

Note: Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.

Note: Installation of ancillary products such as contact adhesives or cleaners is limited to temperatures above +5 °C. Refer to the corresponding Product Data Sheets.
