Backing rod for fire resistant joint sealing

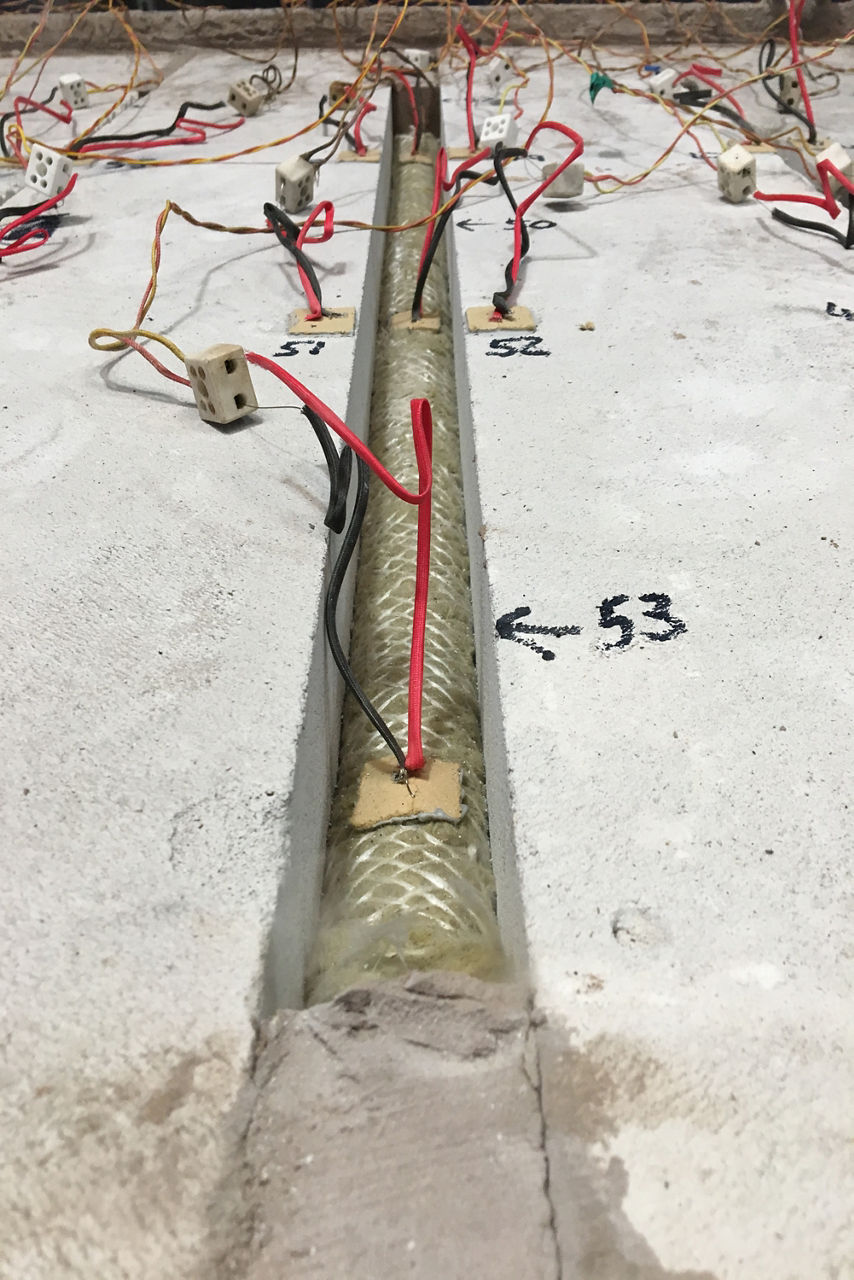

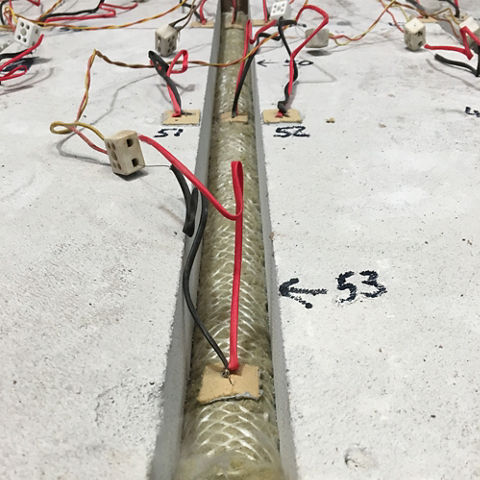

Sika® Backer Rod Fire is a circular, compressible, mineral wool based backing rod wrapped with a glass fibre yarn.

  • Easy to apply.
  • Up to 4 hours fire resistance depending on the configuration.
  • Adapts to joint width and alignment irregularities.
  • Helps to regulate the sealant profile.
Contact Us
Product Data Sheet Show all documents

Usage

Sika® Backer Rod Fire is used as a:
  • Backing rod for fire resistant joint sealing in horizontal and vertical building structure applications.
  • Backing rod in conjunction with any Sika sealant including any Sika owned brands.
Please note:
  • The Product may only be used by experienced professionals.


Advantages

  • Easy to apply.
  • Up to 4 hours fire resistance depending on the configuration.
  • Adapts to joint width and alignment irregularities.
  • Helps to regulate the sealant profile.

Packaging

Diameter

Roll length

12 mm

50 m

15 mm

50 m

20 mm

30 m

30 mm

30 m

40 mm

30 m

50 mm

25 m

60 mm

25 m

Refer to the current price list for available packaging variations.

Colour

Circular profile.



Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • CE marking and declaration of performance based on European Technical Assessment ETA 23/0088. ETA issued on the basis of EAD 350141‐00‐1106 Linear joint and gap seals.

  • European Technical Assessment ETA - 23/0088 of 31/03/2023.
Product Information

Chemical Base

Mineral fibre wool wrapped in a glass fibre yarn.

Shelf Life

6 years from the date of production.

Storage Conditions

The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between -20 °C and +70 °C. Always refer to packaging.

Dimensions

Reference must be made to limitations regarding dimensions and configuration described in the ETA 23/0088.

The Product must be installed at a minimum compression rate of 15 %.

Select the correct diameter using the following table:

Joint width

Diameter

7–10.2 mm

12 mm

9–12.7 mm

15 mm

12–17 mm

20 mm

16–25.5 mm

30 mm

24–34 mm

40 mm

32–42.5 mm

50 mm

40–51 mm

60 mm

Density

~250 kg/m3
Technical Information

Reaction to Fire

A1

(EN 13501-1)

Application

Application steps

APPLICATION

IMPORTANT

Strictly follow installation procedures

Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.



Preconditions

The ends of adjoining rods and at detailing locations such as corners must be in tight contact with each other to maintain maximum fire resistance.

  1. Place the oversized backer rod into the joint and push with a blunt tool to tightly fit against the joint sides at the required depth.
  2. Seal the joint with a Sika® sealant. Refer to individual Product Data Sheets.
