SikaSeal®-626 Fire Board+

SikaSeal®-626 Fire Board+

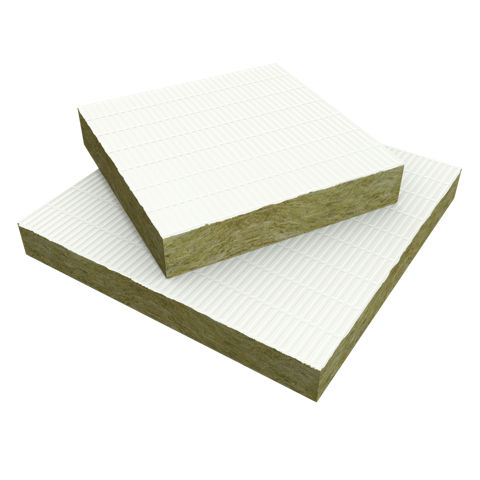

Fire-resistant coated protection board

SikaSeal®-626 Fire Board+ is a mineral wool based protection board coated with the fire resistant, ablative coating Sikacryl®-625 Fire+. Its versatility lets it be combined with many other Sika passive fire protection products for sealing a wide range of installation service penetrations.

  • Up to 4 hours fire resistance.
  • Easy to install, no need for specialist tools.
  • For face-fit (pattress-fit) and internal-fit installations.
  • Provides acoustic insulation.
  • Tested for a large variety of relevant wall and floor types.
Contact Us
Product Data Sheet Show all documents

Usage

  • Restores the fire resistance performance of walls and floors which incorporate single and multiple service penetrations.
  • Can be combined with Sikacryl®-621 Fire+, Sikacryl®-625 Fire+, SikaSeal®-627 Fire Collar+ and SikaSeal®-629 Fire Wrap+.


Advantages

  • Up to 4 hours fire resistance.
  • Easy to install, no need for specialist tools.
  • For face-fit (pattress-fit) and internal-fit installations.
  • Provides acoustic insulation.
  • Tested for a large variety of relevant wall and floor types.

Packaging

Boards individually wrapped in a plastic foil.

Refer to current price list for packaging variations.

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • CE Marking and Declaration of Performance to European Technical Assessment ETA-21/0887, based on EAD 350454-00-1104:2017 - Fire stopping and fire sealing products, penetration seals.
  • Fire Resistance EN 13501-2, UL-EU, Certificate No.UL-EU-01214-CPR.
Product Information

Chemical Base

Mineral wool based core, acrylic coating on one or two sides.

Shelf Life

6 years from the date of production.

Storage Conditions

The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +5 °C and +25 °C.
Always refer to packaging.

Density

~160 kg/m3

(Standard)

Dimensions

Coated board:

length 1,200 mm,

width 600 mm,

thickness 50 mm.

Refer to current price list for packaging variations


Technical Information

Resistance to fire

Refer to ‘Approvals / Certificates’ or contact Sika Technical Services for specific information.

Service Temperature

-20 °C min. / +70 °C max.

Application

Application steps

SUBSTRATE PREPARATION

The substrate must be clean, dry, sound, free from oils, grease, dust and loose or friable particles.
