SikaSeal®-629 Fire Wrap+

SikaSeal®-629 Fire Wrap+

Fire resistant pipe wrap

SikaSeal®-629 Fire Wrap+ is a fire resistant flexible pipe wrap available as pre-cut strips or on a roll for interior and exterior penetration sealing applications that pass through floor and wall service openings. It is ready to use and can be cut to suit varying pipe diameters. SikaSeal®-629 Fire Wrap+ is designed to provide a high volume expansion and pressure seal during a fire to combustible pipes.

  • Up to 4 hours fire resistance.
  • Highly intumescent – Volume expansion 28 times original size.
  • Invisible installation in walls and floors.
  • Large pipe range covered.
  • Tested for a large variety of relevant wall and floor types.
Product Data Sheet Show all documents

Usage

  • Restores the fire resistance performance of a wall or a floor which incorporates combustible pipes, combustible pipe insulations or conduits.
  • Can be combined with Sikacryl®-621 Fire+, SikaSeal®-626 Fire Board+ and Sikacrete®-630 Fire+.


Advantages

  • Up to 4 hours fire resistance.
  • Highly intumescent – Volume expansion 28 times original size.
  • Invisible installation in walls and floors.
  • Large pipe range covered.
  • Tested for a large variety of relevant wall and floor types.

Packaging

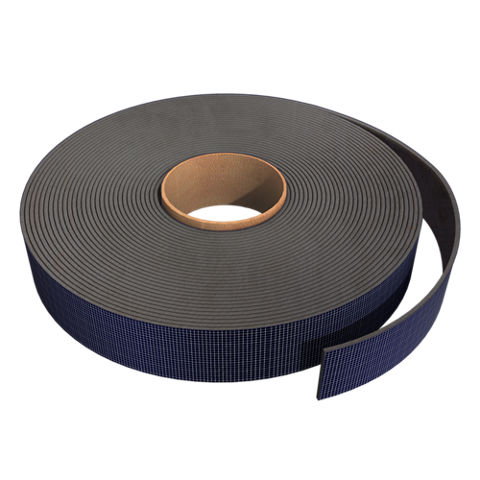

Wraps available in two types: as pre-cut strips in plastic pouch and as a 50 mm x 25 m roll (with adhesive).

Refer to current price list for packaging variations.

Colour

Anthracite

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • CE Marking and Declaration of Performance to European Technical Assessment ETA 21/1032, based on EAD 350454-00-1104:2017 - Fire stopping and fire sealing products, penetration seals.
  • Fire Resistance EN 13501-2, UL_EU, Certificate No.UL-EU-01216-CPR.
Product Information

Chemical Base

Graphite based, intumescent wrap

Shelf Life

6 years from the date of production.

Storage Conditions

The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +5 °C and +25 °C.
Always refer to packaging.

Dimensions

SikaSeal®-629 Fire Wrap+ is available in the following dimensions.

Type: pre-cut strips

Type: roll

55 mm

50 mm x 25 m with adhesive

82 mm

110 mm

125 mm

160 mm

200 mm

Technical Information

Resistance to fire

Refer to ‘Approvals / Certificates’ or contact Sika Technical Services for specific information.

Service Temperature

−20 °C min. / +70 °C max.
