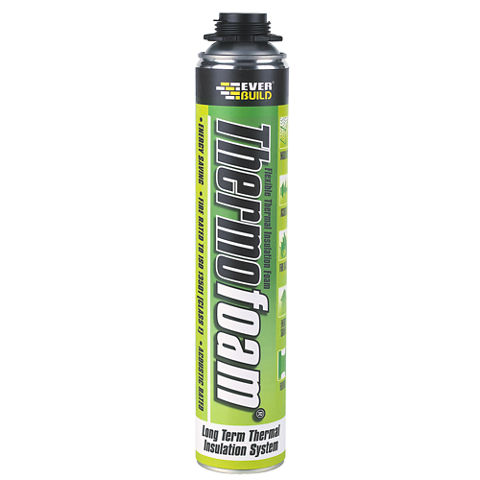

EVERBUILD THERMOFOAM®

EVERBUILD THERMOFOAM®

Long term thermal insulation system

EVERBUILD THERMOFOAM® is a specially formulated, highly flexible PU foam that absorbs component movement thereby giving an airtight seal to reduce heat loss and improve energy efficiency in buildings. The powerful bond strength and flexibility of EVERBUILD THERMOFOAM® gives excellent long term thermal and acoustic insulation by inhibiting cracks from occurring during the contraction of building materials, such as window frame to wall bonds, giving a hermetically sealed barrier.

  • Adheres to all common building materials including concrete, brickwork, wood, plaster, plastic, stone, metal etc.
  • Acoustic insulation up to 64 dB (EN ISO 717-1)
  • Certified air permeability: a<0,1 m³ to EN 12114:2000
  • Temperature Resistant -40°C to +80°C (short term exposure to +100°C)
                                                                                                                                 Expansion Up to 41 litres (output under free release of a 750ml canister) Cell Structure Fine
Product Data Sheet Show all documents

Usage

  • Window installation (clean, controlled back-filling and insulated sealing of window and external roller blind cavities)
  • Gap filling of external door frames (must be used in conjunction with mechanical fixings)
  • Filling cavities in wall break-through for all types of utilities and services.


Advantages

  • Adheres to all common building materials including concrete, brickwork, wood, plaster, plastic, stone, metal etc.
  • Acoustic insulation up to 64 dB (EN ISO 717-1)
  • Certified air permeability: a<0,1 m³ to EN 12114:2000
  • Temperature Resistant -40°C to +80°C (short term exposure to +100°C)
                                                                                                                                 Expansion Up to 41 litres (output under free release of a 750ml canister) Cell Structure Fine

Packaging

750ml pressurized container

Colour

Beige

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Fire Rated to ISO13501 (Class E)
Product Information

Shelf Life

12 months in original containers at stated storage temperatures.

Storage Conditions

Store upright between 10°C and 20°C. Pressurized container. Protect from sunlight and do not expose to temperatures above 50°C. Do not pierce or burn the can even after use. Store as flammable liquid.
Note: Elevated temperatures will reduce shelf life dramatically. Protect from heat and frost.
Technical Information

Compressive Strength

Approx. 1kg/m²

Water Absorption

0.3% Vol-%

Sound Insulation

Max. 64dB

Application

Application Information

Ambient Air Temperature

+10°C to +30°C (optimum 20°C).

Substrate Temperature

Long Term

-40°C to +80°C

Short Term

-40°C to +100°C

Curing Time

Approx. 24 hours (20mm bead)

Cutting Time

10-13 mins (20mm bead, moist application)

Tack Free Time

Approx. 7-10mins
Application steps

SUBSTRATE PREPARATION

Ensure all surfaces are clean, sound and free from dust and loose particles. Moisten surfaces to be sealed with water. This assists the curing process.
