Sika® Expansion Tape-600

Sika® Expansion Tape-600

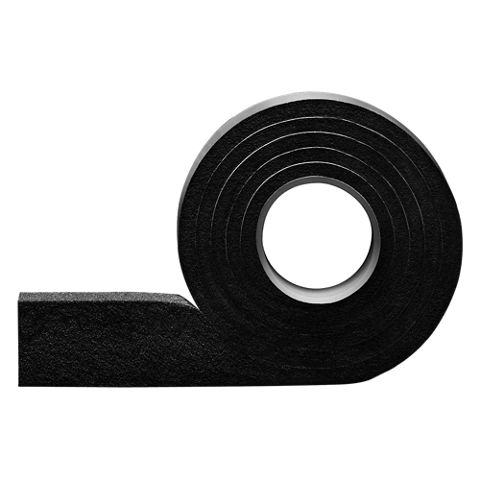

Sika® Expansion Tape-600 is a self-adhering, elastic polymer, dispersion impregnated, expansion tape.

  • Open vapour diffusion structure.
  • Elastic.
  • Sound and thermal insulation.
  • Over-paintable with most dispersion paints.
  • Driving rain tight (600 Pa).
  • Very low emissions.
Product Data Sheet Show all documents

Usage

Sika® Expansion Tape-600 is designed for joint sealing between window and/or door frames and adjacent building components and for other construction sealing applications. Sika® Expansion Tape-600 fulfills the requirements of the energy conservation regulations (EnEV) and the RAL instructions. Sika® Expansion Tape-600 seals against wind, dust, spray water and driving rain.

Advantages

  • Open vapour diffusion structure.
  • Elastic.
  • Sound and thermal insulation.
  • Over-paintable with most dispersion paints.
  • Driving rain tight (600 Pa).
  • Very low emissions.

Packaging

Type of tape*

Joint width [mm]

m per roll

Rolls per box

m per box

10 / 1−4

1−4

13.0

30

390

12 / 2−6

2−6

12.0

25

300

15 / 4−9

4−9

8.0

20

160
15 / 5−125−125.620112
20 / 6−156−154.31564.5
20 / 9−209−203.31549.5
40 / 24−4224−422.6718.2

* 1st figure = width of the tape.

2nd figure = width of the joint (consider future joint movement).

e.g. 20 / 9−20 = tape 20 mm wide for joints 9−20 mm wide.

Colour

Black, pre-compressed rolls.

Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

  • EMICODE EC1PLUS.

APPROVALS / STANDARDS

  • Fire resistant class B1 DIN 4102.
  • ift Rosenheim external control.
  • DIN 18542 BG 1.
Product Information

Chemical Base

Impregnated polyurethane soft foam.

Shelf Life

Sika® Expansion Tape-600 has a shelf life of 24 months from the date of production, if it is stored properly in undamaged, original, sealed packaging, and if the storage conditions are met.

Storage Conditions

Sika® Expansion Tape-600 shall be stored in dry conditions, protected from direct sunlight and at temperatures between +5 °C and +25 °C.
System information

Compatibility

Requirements fulfilled.

(DIN 18542)
Technical Information

Thermal Conductivity

0.052 W/m*K approx. (λ-value).

(ISO 12667)

Joint Permeability to Water Vapour

≤ 1.0 m3 / (h*m*(daPa)2/3) ift Rosenheim external control.

(EN 1026)

Diffusion Resistance to Water Vapour

100 approx. (µ-value).

(ISO 12572)

Equivalent Air Layer Thickness for Water Vapour

0.5 m approx. (at 50 mm width).

(ISO 12572)

Light and Thermal Resistance

Requirements fulfilled.

(DIN 18542)

Application

Application steps

SUBSTRATE PREPARATION

The substrate must be clean, sound and homogeneous, free from oils, grease, dust and loose or friable particles. Paint, cement laitance and other poorly adhering contaminants must be removed. Sika® Expansion Tape-600 adheres without primers and/or activators.
