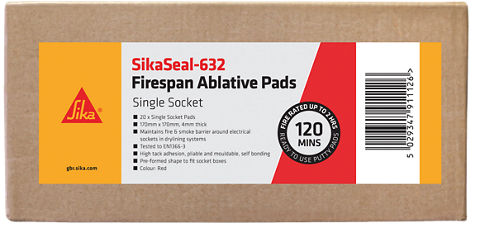

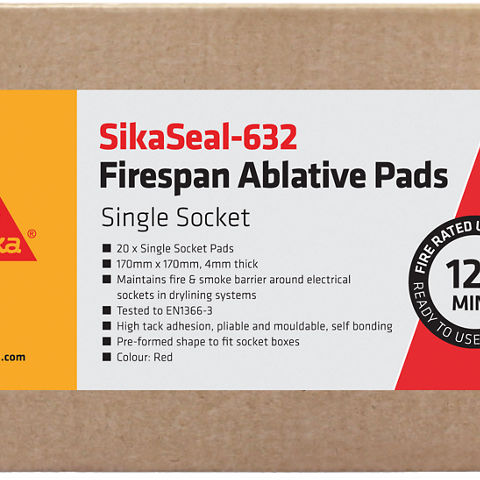

SikaSeal®-632 Firespan Ablative Pads

SikaSeal®-632 Firespan Ablative Pads

Fire resistant putty for use in electrical socket boxes

SikaSeal®-632 Firespan Ablative Pads are designed to be used on the inside or outside of electrical socket boxes to maintain fire and smoke barrier where service holes are cut into dry lining and all types of fire rated boarding.

  • Maintains a fire and smoke barrier around sockets in dry lining systems.
  • High tack adhesion, pliable and mouldable with excellent self-bonding properties.
  • Excellent acoustic properties.
  • Pre-cut to fit most common socket boxes.
  • Up to 2 hour fire rating based on certain configurations.
Contact Us
Product Data Sheet Show all documents

Usage

  • Dry lining systems.
  • Around metal or plastic socket boxes.
  • Fire rated partition walls.


Advantages

  • Maintains a fire and smoke barrier around sockets in dry lining systems.
  • High tack adhesion, pliable and mouldable with excellent self-bonding properties.
  • Excellent acoustic properties.
  • Pre-cut to fit most common socket boxes.
  • Up to 2 hour fire rating based on certain configurations.

Packaging

20 socket pads per box

Colour

Red

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Tested to EN1366-3 to provide up to 2 hours fire protection.
Product Information

Chemical Base

Silicone rubber polymer containing intumescent fillers.

Shelf Life

18 months from date of manufacture

Storage Conditions

Store in cool dry conditions between +5 °C - +35 °C. Do not expose to direct sunlight.

Density

1.55 - 1.60 g/cm3
Technical Information

Resistance to fire

Provide up to 2 hours fire protection (tested to EN1366-3)

Application

Application steps

SUBSTRATE PREPARATION

All services and apertures must be clean, dry and free from any loose dust or contaminants. Do not apply to damp surfaces. The aperture temperature should be at +5 °C or above at the time of installation.
