Sika MonoTop®-3200 Grid
Cementitious R3 Concrete Repair Mortar for the Sika® CarboDur® Grid System
Sika MonoTop®-3200 Grid is a one-part, cementitious, low shrinkage, surfacing or finishing mortar. It is designed to be used in combination with the Sika® CarboDur®-300 Grid as part of the Sika® CarboDur® Grid System which provides an efficient strengthening system for concrete structures.
- Good surface finishing.
- Applied up to 5 mm thick in one layer on vertical and horizontal applications.
- Non-sag overhead at maximum thickness.
- Good workability.
- Hand and machine application (wet spray technique).
- Ready to mix with water.
- Does not contain chlorides or other corrosion promoting additives.
- Sulphate resistant.
Usage
A Component from the Sika® CarboDur® Grid system designed for:- Reinforcing and strengthening concrete civil engineering structures, residential and commercial buildings.
- Restoring the load capacity of structural concrete elements and limit the crack size.
- Producing a thin layer render.
- Repairing minor concrete defects (pores and honeycombed concrete).
Advantages
- Good surface finishing.
- Applied up to 5 mm thick in one layer on vertical and horizontal applications.
- Non-sag overhead at maximum thickness.
- Good workability.
- Hand and machine application (wet spray technique).
- Ready to mix with water.
- Does not contain chlorides or other corrosion promoting additives.
- Sulphate resistant.

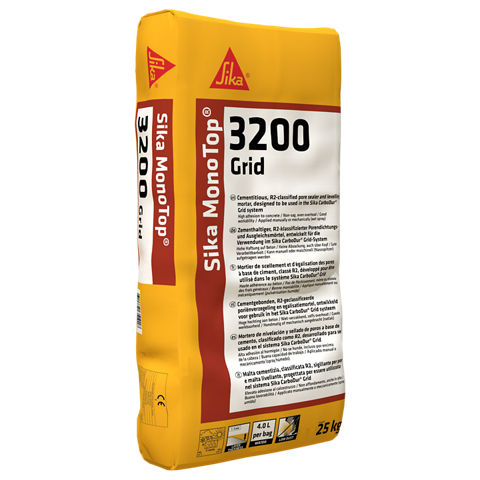

Packaging
25 kg bag.
Colour
Grey powder.
Product Details
APPROVALS / STANDARDS
-
CE marking and declaration of performance based on EN 1504-3:2005 Products and systems for the protection and repair of concrete structures — Structural and non-structural repair.
Product Declaration
Complies with the general requirements of EN 1504-3: Class R3.
Chemical Base
Cement, selected aggregates, additives and polymers.
Shelf Life
12 months from date of production.
Storage Conditions
The Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +35 °C. Protect the Product from direct sunlight. Always refer to packaging.
Refer to the current Safety Data Sheet for information on safe handling and storage.
Maximum Grain Size
Dmax: 1 mm
Soluble Chloride Ion Content
≤ 0,05 % | (EN 1015-17) |
System Structure
Sika MonoTop®-3200 Grid | Embedding layer |
Sika® CarboDur®-300 Grid | Reinforcing grid |
Sika MonoTop®-3200 Grid | Finishing layer |
Compressive Strength
~30 MPa after 28 days at +20 °C | (EN 12190) |
Modulus of Elasticity in Compression
~15 GPa | (EN 13412) |
Flexural Strength
~7,5 MPa after 28 days at +20 °C | (EN 12190) |
Tensile adhesion strength
≥ 2,0 MPa | (EN 1542) |
Application
Mixing Ratio
4 litres of water for 25 kg bag
Fresh mortar density
~1,8 kg/l
Layer Thickness
Application | Minimum | Maximum |
Horizontal | 1 mm | 5 mm |
Vertical | 1 mm | 5 mm |
Overhead | 1 mm | 5 mm |
Product Temperature
Maximum | +30 °C |
Minimum | +5 °C |
Ambient Air Temperature
Maximum | +35 °C |
Minimum | +5 °C |
Substrate Temperature
Maximum | +35 °C |
Minimum | +5 °C |
Pot Life
~40 minutes at +20 °C
Consumption
~1,6 kg/m2/mm
Note: Consumption data is theoretical and does not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.
Yield
25 kg of powder yields ~16 litres of mortar
EQUIPMENT
SUBSTRATE PREPARATION EQUIPMENT
-
Mechanical handheld tools.
-
High / ultra-high-pressure water blasting equipment.
MIXING EQUIPMENT
Suitable mixing container.
-
Small quantities: low speed electric single or double paddle mixer (<500 rpm) with spiral, helix, hoop, basket or impellor paddle.
-
Large quantities or machine application: forced action mixer.
APPLICATION EQUIPMENT
-
Hand applied – Plasterers hawk and trowel.
-
Wet Spray - All-in-one mixing and spraying machine or separate spraying machine and all associated ancillary equipment to suit application volumes.
FINISHING
-
Trowel (stainless steel, steel, wooden or PVC).
-
Sponge.
MIXING
HAND APPLIED AND WET SPRAY APPLICATION
- Pour the minimum amount of water into a suitable clean mixing container or equipment.
- Gradually add the powder to the water while stirring slowly.
- Mix thoroughly for at least for 3 minutes, add additional water if necessary. Note: Do not add more water than the maximum specified amount.
- Adjust to the required consistency to achieve a smooth consistent mix.
- Check the consistency after every mix.
APPLICATION
Protect from frost
Protect freshly applied material from freezing and frost to prevent cracking.
Application in the direct sun or strong winds
Avoid application in direct sun, strong winds or both to reduce the risk of the Product cracking.
REPAIR MORTAR MANUAL APPLICATION
Substrate pre-wetting
Insufficient substrate saturation prior to application will cause the mortar to not gain it's full mechanical properties.
- Only apply the Product to stable, prepared substrates.
- Thoroughly pre-wet the prepared substrate for a minimum of 2 hours before application.
- Keep the surface wet and do not allow to dry.
- The final pre-wetted surface must achieve a dark matt appearance (saturated surface dry).
Sagging or slumping of built up layers
Allow each layer to slightly harden and remain wet before applying subsequent layers.
- Remove excess water from within the surface pores and cavities with a clean sponge.
- Make a scratch coat using the repair mortar.
- Apply the scratch coat over the complete substrate surface to form a thin layer to fill surface pores or cavities.
- IMPORTANT: Do not apply as a "feather edge". Apply the repair mortar onto the scratch coat ‘wet on wet’ between the minimum and maximum layer thicknesses without the formation of voids.
REPAIR MORTAR SPRAYED APPLICATION - WET SPRAY
Substrate pre-wetting
Insufficient substrate saturation prior to application will cause the mortar to not gain it's full mechanical properties.
- Only apply the Product to stable, prepared substrates.
- Thoroughly pre-wet the prepared substrate for a minimum of 2 hours before application.
- Keep the surface wet and do not allow to dry.
- The final pre-wetted surface must achieve a dark matt appearance (saturated surface dry).
Sagging or slumping of built up layers
Allow each layer to slightly harden and remain wet before applying subsequent layers.
- Remove excess water from within the surface pores and cavities with a clean sponge.
- Place the wet mixed repair mortar into the spraying equipment.
- Spray the repair mortar onto the pre-wetted substrate between the minimum and maximum layer thicknesses without the formation of voids.
SURFACE FINISHING
Adding water during surface finishing
Do not add water during the surface finishing as this can cause discolouration and cracking.
- Allow mortar to surface harden.
- Surface finish to the required surface texture using a stainless steel, steel, PVC or wooden float.
CURING TREATMENT
Protect fresh mortar immediately from premature drying using an appropriate curing method, such as curing compound, moist geotextile membrane or polythene sheet.
Curing compounds must not be used when they could adversely affect subsequently applied products and systems.
CLEANING OF TOOLS
Clean all tools and application equipment with water immediately after use. Hardened material can only be removed mechanically.
