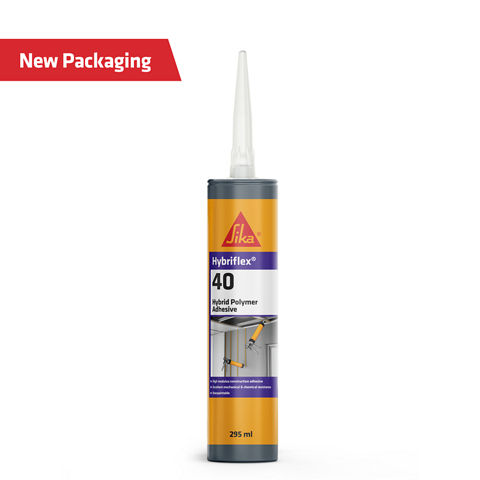

Sika® Hybriflex® 40

Sika® Hybriflex® 40

A high modulus, one component, hybrid based adhesive

Sika® Hybriflex® 40 is a high modulus, one component, hybrid based adhesive which adheres strongly to most substrates. Provides excellent mechanical resistance, resistance to most common chemicals and solvents and can be overpainted when cured.

  • Excellent chemical resistance.
  • Excellent resistance to solvents when cured.
  • Bonds to concrete, wood, metal, aluminium, polyester, glass, uPVC, stone, ceramics, etc.
  • Over paintable with water based gloss and emulsion paints - preliminary test required before use.
  • Moisture cure.
Contact Us
Product Data Sheet Show all documents

Usage

  • Bonding metal panels and trim.
  • Bonding in container fabrication.
  • Suitable for construction and engineering.


Advantages

  • Excellent chemical resistance.
  • Excellent resistance to solvents when cured.
  • Bonds to concrete, wood, metal, aluminium, polyester, glass, uPVC, stone, ceramics, etc.
  • Over paintable with water based gloss and emulsion paints - preliminary test required before use.
  • Moisture cure.

Packaging

295 ml Cartridges

Colour

Grey

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

EN15651-1:2012 type F-EXT-INT-CC Class F20HM.
Product Information

Chemical Base

STP

Shelf Life

12 months from date of manufacture

Storage Conditions

Store in cool dry conditions between + 5 °C and + 25 °C

Density

1.40 - 1.50 g/cm3
Technical Information

Shore A Hardness

50 ± 5

Shrinkage

< 5 %  (ISO 10563)

Elastic Recovery

> 60 %

Movement Capability

± 20 %

Chemical Resistance

Resistance to Acids / Bases / Solvents: Average. Mild acids / bases at < 10 % concentration

Service Temperature

-40 °C to +90 °C



Joint Design

Joint depth should never exceed width.  Where joint depth does exceed width, the user should use Fix & Fill Expanding Foam or Joint Backer Rod. Ensure that the joint design only permits adhesion to two surfaces, as three-sided adhesion will impair flexibility.
Joint Calculation
Joint widths are calculated according to BS6213:
Width = M x 100 + M
                    F
Where M = movement and F = movement accommodation factor

Application

Application Information

Ambient Air Temperature

+5 °C to +30 °C

Curing Rate

2 mm per 24 hours (+23 °C and 50 % RH)

Skin Time

20 - 40 mins (+20 °C and 50 % RH)
Consumption

Consumption

Joint Size in mm

Litre per Metre Run

Metre per 295 ml Tube

5 x 5

0.025

12

5 x 10

0.050

6

10 x 10

10 0.1

3

15 x 10

0.15

2

20 x 10

0.2

1.5
Application steps

APPLICATION INSTRUCTIONS

All surfaces must be clean, dry and dust free. All loose or flaking surface coatings, and old sealant and mastic joints, should be removed before application. Glass, metal and aluminium should be cleaned with a proprietary solvent cleaner prior to application for optimum adhesion. When using solvents, always ensure adequate ventilation. Avoid heat, sparks and open flames. Observe and follow all precautions listed on the solvent container label. It is not recommended for application to surfaces that are below +5 °C as it is impossible to guarantee a dry, frost-free surface at these temperatures.


Priming

  • On porous substrates like concrete use Sika® Primer 3N.
  • On non-porous if needed use silicone Sika® Aktivator 205.
  • Metals – Priming not always necessary.
