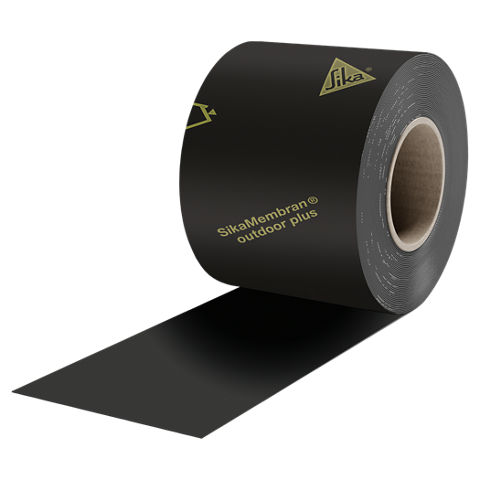

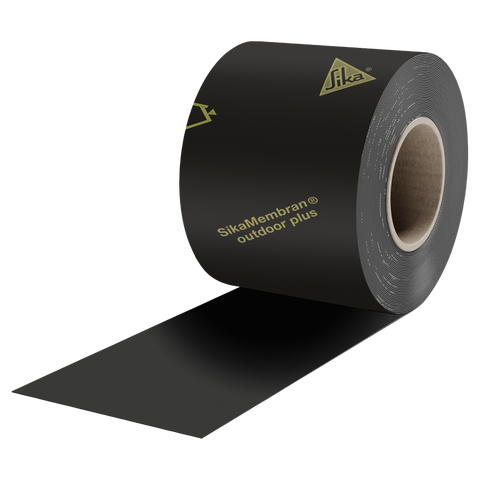

SikaMembran® Outdoor plus

SikaMembran® Outdoor plus

Vapour/waterproofing membrane for facades - high vapour permeability

SikaMembran® Outdoor plus is an EPDM sheet membrane with a low vapour diffusion resistance (sd value 3 m) and is thus recommended on the cold side if there is an extremely high vapour pressure on the warm side. The SikaMembran® system is a high-performance vapour control system comprising of various EPDM sheet membranes providing vapour control layers and waterproof barriers for curtain walls. They are suitable for most climatic conditions in combination with the appropriate adhesive.

  • Highly flexible waterproofing and vapour control system
  • Fast, easy and secure application even in corners
  • Provided with CE-mark according to EN 13984: 2011
  • Meet fire retardant requirements of EN 13501-1 Class E under free suspension
  • No additional mechanical fixing necessary
  • Membrane pre-treatment free
  • Suitable for uneven substrates (blowholes in concrete), leveling of substrate by adhesive
  • Suited to site conditions
  • Durable bond and barrier/seal
  • Ozone- and UV-resistant

Find a Distributor
Product Data Sheet Safety Data Sheet Show all documents

PRODUCT BENEFITS

  • Highly flexible waterproofing and vapour control system
  • Fast, easy and secure application even in corners
  • Provided with CE-mark according to EN 13984: 2011
  • Meet fire retardant requirements of EN 13501-1 Class E under free suspension
  • No additional mechanical fixing necessary
  • Membrane pre-treatment free
  • Suitable for uneven substrates (blowholes in concrete), leveling of substrate by adhesive
  • Suited to site conditions
  • Durable bond and barrier/seal
  • Ozone- and UV-resistant


Usage

The flexible SikaMembran® sheets, installed between structure and incorporated units (e.g. facade elements, windows, etc.) using SikaBond® TF plus N adhesive, provide a secure and durable vapour barrier and waterproof seal at junctions between building elements mainly in curtain wall facades but also in ventilated facades and window installations.
This product is suitable for experienced professional users only. Test with actual substrates and conditions have to be performed to ensure adhesion and material compatibility.

Packaging

Length [m / roll]

25

Width of rolls [mm]

100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 1200, 1400

Product Details

Typical Product Data
Chemical base

Elastic EPDM

Colour

Black

Mass per unit area

0.8 kg/m2

Thickness

0.6 mm

Equivalent air layer thickness sd

sd value

3 m

Elongation at break (ISO 37)

350 %

Application temperature

5 ─ 40 °C

Tensile strength (ISO 37)

4 MPa

Tear propagation resistance (CQP045-1 / ISO 34)

8 N/mm

Ozone resistance (DIN 1431-1)

200 pphm, 40 °C, 20 % Elongation, 168 h

No cracks

Service temperature

-40 ─ 90 °C

Shelf life

18 months A

CQP = Corporate Quality Procedure

A) stored in dry conditions between 5 and 30 °C and protected from direct sunlight

Application

Application Information

Surface Preparation

Prior the bonding process ensure that substrates are sound, clean, dry, free from dust, grease, oil and loose particles.

Application

Apply SikaBond® TF plus N adhesive to the corresponding structure or components (nozzle diameter approx. 8 mm).
By using a clean spatula, spread the adhesive bead to approx. 4 - 5 cm width and 1 mm thickness.
Install the SikaMembran® Outdoor plus sheet tension-free and in a way that movement of the connected building parts can be accommodated without damaging the membrane. Press the membrane sheet on the adhesive by a plastic roller. The membrane must be fully bonded over a width of 4 cm. Where overlaps are required ensure at least an overlap of 5 cm.
The membrane might be re-adjusted during a period of 30 minutes after installation.



Application Limits

SikaMembran® Outdoor plus is not resistant to mineral oils, petroleum, benzene, fuel and toluene etc.
The membrane is not suitable for permanent immersion or standing water.

SikaMembran® Outdoor plus is perforated and thus not resistant to driven rain at wind loads exceeding 0.8 kPa.
