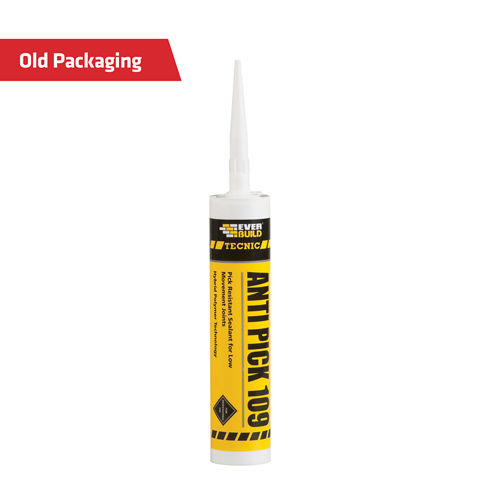

Everbuild Tecnic® AntiPick 109

Everbuild Tecnic® AntiPick 109

Pick-resistant sealant for low movement joints

ANTI PICK 109 is a one-part, chemically-curing, sealant based on Everbuild Hybriflex technology, combining the best qualities of silicone and polyurethane. Anti Pick 109 has been specifically formulated to provide a degree of resistance to finger picking, answering the need for a harder-to-pick by hand seal (in comparison to traditional sealants) where a small movement accommodation is required.

  • Excellent impact and wear resistance.
  • Resistant to picking by fingers.
  • Excellent primerless adhesion to most surfaces, including metals, most plastics and glass.
  • Excellent resistance to chemicals & petrol (10 % dilute acids, alkalis, most solvent).
  • Overpaintable with certain paints (compatibility test should be made).
  • Can be applied on damp surfaces.
  • High mechanical properties.
  • Passed for use on different home office, National Offender management services and Ministry of Justice projects.
Consistency Paste Shrinkage (ISO 10563)<5 %Compatibility With PaintsWater Based: Yes (test compatibility) Solvent Based: No (with Alkyd Paints)
Product Data Sheet Safety Data Sheet Show all documents

Usage

  • Secure environments i.e. prisons & hospitals where the sealant is hard to reach or the person is under supervision.
  • Municipal and public areas.
  • Perimeter sealing of doors, windows.
  • Joints in heavy cladding.


Advantages

  • Excellent impact and wear resistance.
  • Resistant to picking by fingers.
  • Excellent primerless adhesion to most surfaces, including metals, most plastics and glass.
  • Excellent resistance to chemicals & petrol (10 % dilute acids, alkalis, most solvent).
  • Overpaintable with certain paints (compatibility test should be made).
  • Can be applied on damp surfaces.
  • High mechanical properties.
  • Passed for use on different home office, National Offender management services and Ministry of Justice projects.
Consistency Paste Shrinkage (ISO 10563)<5 %Compatibility With PaintsWater Based: Yes (test compatibility) Solvent Based: No (with Alkyd Paints)

Packaging

295 ml Cartridge

Colour

White, Soft Linen and Grey

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

UKCA / CE Marked under EN15651 part 1 classes F20HM and use in cold climates.
Product Information

Chemical Base

STP

Shelf Life

12 months from date of manufacture when stored as directed.

Storage Conditions

Store in cool, dry conditions between +5 ˚C and +25 ˚C. Storage outside these parameters will dramatically reduce shelf life.

Density

~1.42 g/cm3
Technical Information

Tensile Strength

> 1.3 N/mm² (ISO8339)

Movement Capability

±20 % (ISO9047)

Elastic Recovery

> 80 % (ISO7389)

Service Temperature

-40 °C to +100 °C

Resistance to Weathering

Resistance to UV Radiation - Good

Joint Design

Joint Dimensions
For maximum movement accommodation, it is recommended that:
1. The sealant joint depth should be no less than 5 mm.
2. Joint depth should be 5 mm for joints up to 10 mm wide.
3. Joints above 10 mm in width should be half the width in depth up to 20 mm and minimum 10 mm for wider joints.
Joint depth may be adjusted to the correct size using EVERBUILD JOINT BACKER ROD.

Joint Width Calculation
Joint widths are calculated as in BS6213:
Width = M x 100 + M
                       F
Where M = movement and F = movement accommodation factor

Application

Application Information

Sag Flow

Nil (ISO7390)

Ambient Air Temperature

+5 °C to +35 °C

Curing Time

2 mm / 24 hour at @ +23 °C and 50 % RH

Skin Time

30 ± 10 Min @ +23 °C and 50 % RH
Consumption

Consumption

~10.4 m linear bead of 6 mm diameter
Application steps

APPLICATION INSTRUCTIONS

Primer
Priming is not always necessary; but if in doubt use a suitable primer as directed prior to application, especially when joints are to be immersed or require a high movement capability. For mortar/concrete use Sika Primer 3-N. If desired use Sika Aktivator 205 on non porous substrates.

SUBSTRATE PREPARATION

All surfaces must be clean and dust free. Preliminary adhesion tests are strongly recommended prior to full scale application. Surfaces may be damp, but must have no standing water. For most substrates, priming is not required, however, if in doubt contact our technical department.
