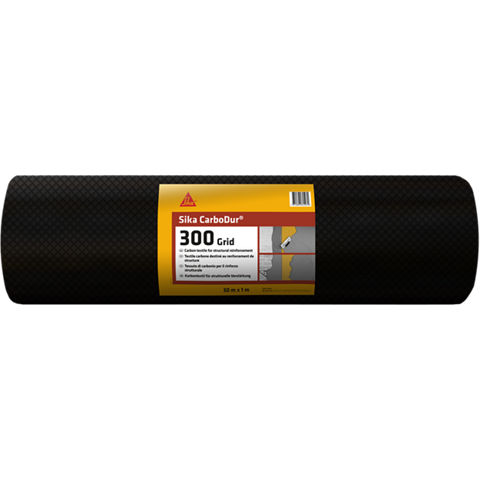

Sika® CarboDur®-300 Grid

Sika® CarboDur®-300 Grid

Bi-directional Carbon Fibre Grid for Textile Reinforced Mortars

Sika® CarboDur®-300 Grid is a carbon fibre, bi-directional grid. It is part of the Sika® CarboDur® Grid System.

  • High tensile resistance in both directions.
  • Economical.
  • Corrosion resistant.
  • Easy to handle and embed into mortar.
Contact Us
Product Data Sheet Show all documents

Usage

Embedded as reinforcement into Sika® MonoTop®-3200 Grid (for concrete) or Sika® MonoTop®-3260 Grid (for mortar) and used for:
  • Reinforcing concrete structures.
  • Reinforcing masonry walls made of brick, blocks or stone.
  • Reinforcing infill masonry walls.
  • Connecting masonry walls to other walls or to reinforced concrete structures.
  • Repair of cracked masonry walls.
  • Interior or exterior use.


Advantages

  • High tensile resistance in both directions.
  • Economical.
  • Corrosion resistant.
  • Easy to handle and embed into mortar.

Packaging

Roll width

1,0 m

Roll length

50 m

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Avis Technique CSTB, No. 3.3/18-965_V1 (issued for Lankostructure Carbogrid).
Product Information

Construction

Fibre orientation

0° / 90°

Black fibre grid with patented coating.

13 filaments. Grid spacing: 10 cm x 10 cm (centre to centre) in both directions.

Fibre type

Carbon fibre.

Shelf Life

24 months from date of production.

Storage Conditions

The product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +10 °C and +30 °C. Always refer to packaging.

Dry fibre density

1,8 kg/l

Area Density

320 g/m2 embedded grid.

Dry fibre modulus of elasticity in tension

~230 000 N/mm2

Dry fibre elongation at break

~1,9 %

(EN ISO 13934-1)
System information

System Structure

  • Sika® CarboDur®-300 Grid.
  • Sika® MonoTop®-3200 Grid (for reinforcement of concrete structures).
  • Sika® MonoTop®-3260 Grid (for reinforcement of masonry structures).
Technical Information

Tensile resistance

> 9500 N/5 cm (grid)

(EN ISO 13934-1)

Application

Application steps

SUBSTRATE QUALITY

Refer to the Sika Method Statement: Sika® CarboDur® Grid System and Sika® MonoTop®-3200 Grid and Sika® MonoTop®-3260 Grid Product Data Sheet.

SUBSTRATE PREPARATION

Refer to the Sika® Method Statement: Sika® CarboDur® Grid System and Sika® MonoTop®-3200 Grid and Sika® MonoTop®-3260 Grid Product Data Sheet.
