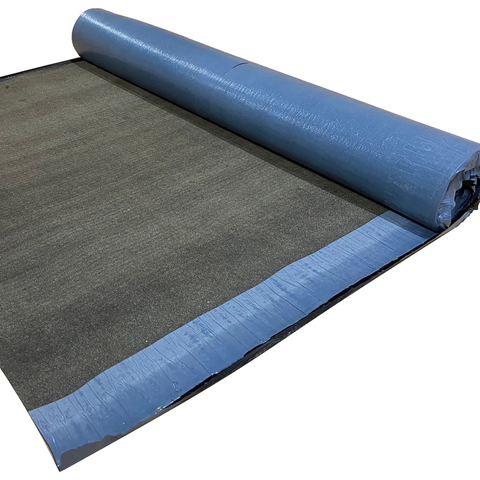

SikaShield® VB E71 PE SA 2,4 mm
SikaShield® VB E71 PE SA 2,4 mm is an SBS modified bituminous, self-adhesive air & vapour control layer with a thickness of 2.4 mm and flexibility at -25°C. It is reinforced with aluminium foil and a dimensionally stable non-woven polyester inlay. The underside has a removable liner over the adhesive compound for an easy application. It can be applied to various substrates. Top surface finish: sand.
- High resistance to water vapour diffusion
- Fast and easy installation from self-adhesive properties
- Good watertightness
- High elongation
- High mechanical properties
- Good adhesion at low temperatures
- Accommodates a wide range of roof system, deck types and substrate combinations
- Choice of substrates primers
Usage
Roof waterproofing membrane for:- Flat and sloping roofs
- As an air & vapour control layer
- Metal
- Timber
- Concrete
Advantages
- High resistance to water vapour diffusion
- Fast and easy installation from self-adhesive properties
- Good watertightness
- High elongation
- High mechanical properties
- Good adhesion at low temperatures
- Accommodates a wide range of roof system, deck types and substrate combinations
- Choice of substrates primers
Packaging
Roll width | 1.0 m |
Roll length | 10.0 m |
Colour
Top surface | Sanded bitumen |
Backing | Release liner |
Product Details
APPROVALS / STANDARDS
CE marking and Declaration of Performance to EN 13970 – Bituminous layers for Vapour Control — Definitions and characteristics
Chemical Base
Composition | SBS modified bitumen |
Reinforcing material | Aluminium foil and a non-woven polyester fabric stabilised with fibreglass |
Shelf Life
12 months from date of production
Storage Conditions
The Product must be stored in original unopened and undamaged packaging in dry conditions and temperatures between +5 °C and +35 °C. Protect the Product from direct weather exposure and sunlight. Store in a vertical position.
Always refer to packaging.
Effective Thickness
| (EN 1849-2) |
Tear Strength
| (EN 12310-1) |
Flexibility at low temperature
≤ -25 °C | (EN 1109) |
Water Tightness
| (EN 1928) |
Water permeability
µ = 1 500 000 -20 % | (EN 1931/EN 1296) |
Reaction to Fire
Class E | (EN 13501-1) |
Application
Ambient Air Temperature
Maximum | +40 °C |
Minimum | +5 °C |
Relative Air Humidity
Maximum | 80 % |
Substrate Temperature
Maximum | +40 °C |
Minimum | +5 °C |
SUBSTRATE QUALITY
SYSTEM DESIGN
Consider the following when designing the system:
-
The supporting structure must be of sufficient structural strength to support all new and existing layers of the system build-up.
-
If used as a roof system, the complete system must be designed to withstand and be secured against wind uplift loadings.
SUBSTRATE CONDITION
The substrate surface must be uniform, firm, smooth and free of any sharp protrusion or burrs, clean, dry, free of grease, laitance, oil, dust and loosely adhering particles.
SUBSTRATE PREPARATION
Installation procedure
Strictly follow installation procedures as defined in method statements, application manuals and working instructions which must always be adjusted to the actual site conditions.
Priming
Apply the appropriate primer, Sika® Primer 600 or Sika® Primer 610, at the correct consumption to the prepared dry surface and allow to dry before next application stage. Refer to the individual Product Data Sheets.
APPLICATION
IMPORTANT
Unrolling at low temperatures
At low temperatures, the membrane becomes less flexible.
- Be careful when unrolling to avoid damaging the membrane.
- Laying the membrane at temperatures ≤+10 °C and or in high humidity conditions, use suitable heat producing equipment to heat and / or dry the substrate.
IMPORTANT
Damage through footwear
Footwear with spikes or sharp protrusions may puncture the membrane.
- Use footwear with a flat profile when walking over the membrane.
IMPORTANT
Application on sloped surfaces
For slopes with an inclination greater than 15 %, multi-layered roofs must be carefully designed and, if necessary, integrated with mechanical fastenings.
Seasonal symbol
Note: If a seasonal symbol is printed on the roll’s label, it is advisable to use the membrane during the indicated season.
Tackiness at high temperatures
Note: When laying the membrane at high temperatures, the integral adhesive will become 'tacky' and may restrict laying operations.
ALIGNMENT
IMPORTANT
Avoid coinciding joints
To avoid coinciding joints, lay the membranes parallel to one another. When applying on another bituminous membrane, make sure to straddle the overlaps of the previous layer.
- Unroll the membrane.
- Align the membrane.
- Re-roll the membrane before application.
MEMBRANE OVERLAPS
- Overlap the membranes by a minimum of 100 mm on the sides and 150 mm on each end or as specified by the supplier.
- At the end overlap, cut off a corner measuring 100 mm per side at an angle of 45°.
BONDING
- Check the alignement of the sheet before bonding. Re-align where necessary.
- At one end of the sheet, peel away part of the silicone release liner from the underside and bond this part to the substrate.
- Peel away the release liner sideways from the rest of the SikaShield® VB E71 PE SA 2,4 mm sheet to allow it to bond on the substrate.
- Roll the entire surface are of the applied membrane with a suitable heavy roller ensuring any air bubbles are removed.
When laying insulating panels over the membrane, they must be mechanically fixed to the substrate through the membrane.
Suitable substrates for bonding
-
Primed Concrete
-
Plywood panels, timber boards, OSB
-
Metal
DETAILING
- Use a sharp knife to cut in all details such as internal and external corners, upstands, vent pipes, drains, support metalwork etc.
Refer to the relevant method statement for further information on detailing.
