SikaRoof® Aluminium Edge Trim UK

SikaRoof® Aluminium Edge Trim UK

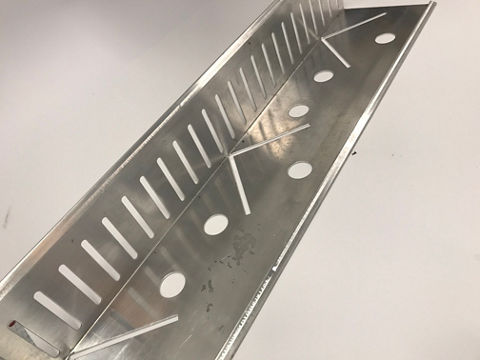

ALUMINIUM EDGING & CORNER TRIM

SikaRoof® Aluminium Edge Trim UK is required for use on exposed roof system edges to restrain the leading edge of a green roof build up. They can be cut to length, and matching corner pieces are available fo ease of installation.

  • Permeable to water with 6 mm Ø holes in the vertical leg
Contact Us
Product Data Sheet Show all documents

Usage

  • As a separator between the substrate and gravel margin where required
  • As water-permeable upstand at the eaves edge of monopitched roofs up to max. 5° roof pitch
  • Not suitable for use as a structurally effective gravel retainer for pitches of > 5°

Advantages

  • Permeable to water with 6 mm Ø holes in the vertical leg

Packaging

Pallet/Package depending on quantity

Colour

Mid sheen natural (unpainted)

Product Details

Product Information

Chemical Base

Aluminium

Shelf Life

3 Years

Storage Conditions

Products should be stored and protected from extremes of temperature.

Dimensions

Available sizes (HxWxL)

  • 80 x 140 x 2000mm
  • 100 x 120 x 2000mm
  • 120 x 140 x 2000mm
  • 150 x 129 x 2000mm

Weight

80mm

800g/m

100mm

850g/m

120mm

900g/m

150mm950g/m

Application

Application steps

APPLICATION INSTRUCTIONS

Installation works should be carried out by suitably trained contractors in strict accordance with the project specification.
