Paving support Pad/ levelling shim

Paving support Pad/ levelling shim

Prefabricated Paving Support Pad and Levelling Shim

$v(name is a prefabricated high density polyethylene (HD-PE) paving support pad manufactured by injection moulding.  It enables the correct positioning of paving slabs and provides water drainage between and underneath the slabs.

  • Ease of application
  • Resistant to UV exposure
  • Correctly positions paving slabs
  • Securely holds paving slabs in place
  • Uniform spacing between paving slabs
  • Very good water drainage between slabs and below the paving level
  • Paving not fixed, allowing slabs to be removed easily
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)
Contact Us
Product Data Sheet Show all documents

Usage

Paving support Pad/ levelling shim may only be used by experienced professionals.
  • Placement of paving slabs on flat roofs, plaza decks, balconies, verandas, courtyards, terraces etc.


Advantages

  • Ease of application
  • Resistant to UV exposure
  • Correctly positions paving slabs
  • Securely holds paving slabs in place
  • Uniform spacing between paving slabs
  • Very good water drainage between slabs and below the paving level
  • Paving not fixed, allowing slabs to be removed easily
  • Recyclable (Delete if recycling facilities or recycling offerings are not available in local country)

Packaging

The products are packed in cartons.

Paving Support Pad Packaging Unit:

50 pieces

Levelling Shim Packaging Unit:

150 pieces

Colour

Colour

Black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Quality management system EN ISO 9001/14001
Product Information

Chemical Base

High density polyethylene (HDPE)

Shelf Life

Will not expire during correct storage.

Storage Conditions

The products must be stored in original, unopened and undamaged sealed packaging in dry conditions, temperatures should not exceed 40ºC.

Dimensions

Pad:

180mm diameter and 15mm high

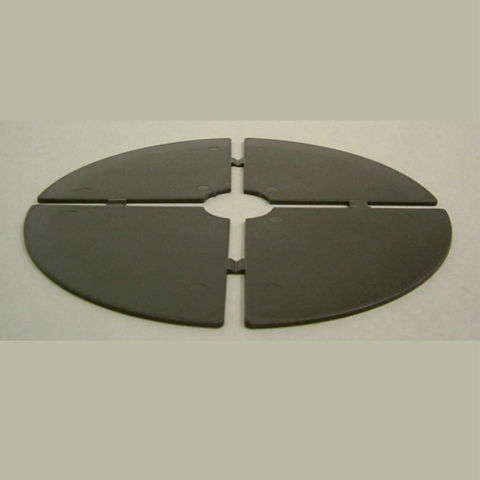

Shim:

180mm diameter and 1mm thick

Pad spacer thickness:

5mm

Surface Support Area

22,000mm²

Maximum Load Capacity1200Kg


System information

System Structure

The following products must be considered for use depending on roof design:

Sika Liquid Plastics S-Felt T 300 as a filtration layer prior to installing a gravel border

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

APPLICATION

Apply protection sheet on top of applied waterproofing membrane.

There is no mechanical fixing required, the weight of the slab holds the pad and shim in place.

Levelling is carried out using the levelling shims.
