Sarnafil® T Scupper square

Sarnafil® T Scupper square

Prefabricated FPO roof drain

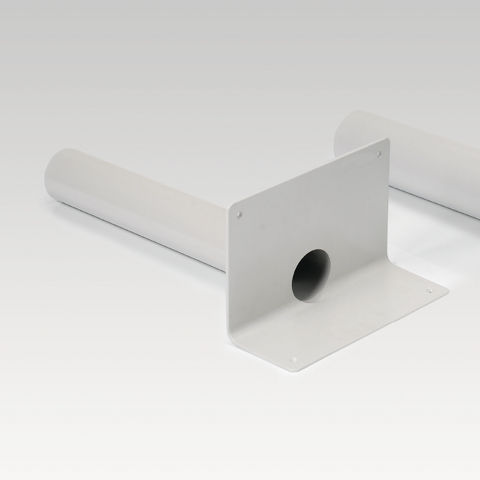

Sarnafil® T Scupper square is a prefabricated FPO (PP) rainwater outlet through the parapet on flat roofs. It is used with Sarnafil® T/AT roofing membranes which are heat-welded onto the baseplate.

  • Very good resistance to permanent UV exposure
  • Membrane can be welded directly to the base plate
  • Easy to apply
  • Hot air weldable
  • IMPORTANT Requires named reference to an established recycling programme for post-consumer FPO that is easily accessible for > 65 % of customers and that feeds post-consumer recycling material to production of new products. Delete if no such recycling programme is available.Recyclable through [named] recycling program
Contact Us
Product Data Sheet Show all documents

Usage

The Product is used as a:
  • Rainwater outlet for use with Sarnafil® T/AT roofing membranes
Please note:
  • The Product may only be used by experienced professionals.
  • The Product must not be used in regions with average monthly minimum temperatures lower than -50 °C. Permanent ambient temperature during use must not be higher than +50 °C.


Advantages

  • Very good resistance to permanent UV exposure
  • Membrane can be welded directly to the base plate
  • Easy to apply
  • Hot air weldable
  • IMPORTANT Requires named reference to an established recycling programme for post-consumer FPO that is easily accessible for > 65 % of customers and that feeds post-consumer recycling material to production of new products. Delete if no such recycling programme is available.Recyclable through [named] recycling program

Packaging

Depending on the order quantity and product size, the products are packaged on pallets or in cartons

Refer to the current price list for available packaging variations.

Colour

Surface

Smooth

Colour

Colour: Beige (Nearest to RAL 7032)

Product Details

Product Information

Chemical Base

Polypropylene (PP)

Shelf Life

5 years from date of production

Storage Conditions

The Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to packaging.

Dimensions

Spigot outside

Spigot length

Spigot inclination

Vertical base plate

Horizontal base plate

128 mm × 68 mm

300 mm

500 mm

600 mm

5°

320 mm × 160 mm

320 mm × 100 mm

188 mm × 88 mm

300 mm

500 mm

600 mm

5°

380 mm × 180 mm

380 mm × 100 mm

308 mm × 88 mm

300 mm

600 mm

5°

500 mm × 180 mm

500 mm × 100 mm

308 mm × 108 mm

300 mm

600 mm

5°

500 mm × 200 mm

500 mm × 100 mm

508 mm × 108 mm

300 mm

600 mm

5°

700 mm × 200 mm

700 mm × 100 mm

758 mm × 108 mm

300 mm

600 mm

5°

950 mm × 200 mm

950 mm × 100 mm

1008 mm × 108 mm

300 mm

600 mm

5°

1200 mm × 200 mm

1200 mm × 100 mm

Thickness

4 mm
Technical Information

Flow rate

Spigot inside

35 mm height

45 mm height

55 mm height

65 mm height

120 mm × 60 mm

1.30 L/s

1.90 L/s

2.70 L/s

3.50 L/s

180 mm × 80 mm

1.90 L/s

2.80 L/s

3.80 L/s

5.00 L/s

300 mm × 80 mm

3.00 L/s

4.40 L/s

6.00 L/s

7.80 L/s

300 mm × 100 mm

3.00 L/s

4.40 L/s

6.00 L/s

7.80 L/s

500 mm × 100 mm

5.50 L/s

7.90 L/s

10.50 L/s

13.40 L/s

750 mm × 100 mm

7.50 L/s

11.00 L/s

14.90 L/s

19.20 L/s

1000 mm × 100 mm

12.60 L/s

17.70 L/s

23.40 L/s

29.40 L/s

Application

Application Information

Ambient Air Temperature

Maximum

+60°C

Minimum

-20°C
Application steps

APPLICATION

IMPORTANT

Strictly follow installation procedures

Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.

IMPORTANT

Application by trained personnel

The application of this Product must only be carried out by an applicator that is trained or approved by Sika. The applicator must also be experienced in this type of application.

IMPORTANT

Ventilation in confined spaces

Always ensure good ventilation when applying the Product in a confined space.

INSTALLATION PROCEDURE

Before applying the roof membrane, fasten the Product securely to the roof deck or parapet.

For mechanically fastened roofs, design the fasteners to resist the wind load forces at the project location.

Reference the current installation instructions for Sarnafil® and Sikaplan® flat-roof waterproofing membranes.

Reference further documentation where applicable, such as relevant method statements, application manuals and installation or working instructions.



Application below +5 °C

Note: Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.

Note: Installation of ancillary products such as contact adhesives or cleaners is limited to temperatures above +5 °C. Refer to the corresponding Product Data Sheets.
