SikaShield® Cable Duct CR

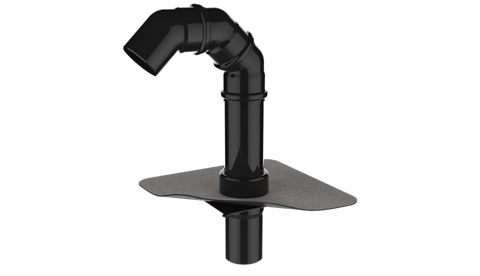

SikaShield® Cable Duct CR is a rigid PVC prefabricated pipe bend used as a cable entry on bituminous roof systems.
- Resistant to UV exposure
- Easily connected over roof penetration
- Product is supplied with integrated welding tap
Usage
The Product is used for:- Providing a watertight cable bushing detail on exposed roofs
- The Product may only be used by experienced professionals.
- The use of the Product is limited to geographical locations with average monthly minimum temperatures of -50 °C. Permanent ambient temperature during use is limited to +50 °C.
Advantages
- Resistant to UV exposure
- Easily connected over roof penetration
- Product is supplied with integrated welding tap
Packaging
Packed in transparent plastic bag.
Refer to the current price list for available packaging variations.
Colour
| Colour | black |
Product Details
Chemical Base
Pipe | Rigid PVC |
Welding tab | Polymer modified bitumen (SBS) |
Shelf Life
5 years from date of production
Storage Conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5°C and +30°C. Always refer to packaging.
Dimensions
| Type | Pipe outside Ø | Total height above waterproofing layer | Pipe length below waterproofing layer |
| DN 70 | 75 mm | 480 mm | 200 mm |
| DN 100 | 110 mm | 520 mm | 200 mm |
| DN 125 | 125 mm | 545 mm | 200 mm |
| DN 150 XL | 160 mm | 610 mm | 300 mm |
*Other dimensions may be available on request
System Structure
The following products must be considered for use depending on roof design:
SikaShield® bituminous roofing membranes
Compatibility
With all SikaShield® bituminous roofing membranes
Application
Ambient Air Temperature
Maximum | +60°C |
Minimum | -20°C |
Substrate Temperature
Maximum | +60°C |
Minimum | -30°C |
APPLICATION
IMPORTANT
Strictly follow installation procedures
Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.
IMPORTANT
Application by trained personnel
The application of this Product must only be carried out by an applicator that is trained or approved by Sika. The applicator must also be experienced in this type of application.
For application information refer to installation instructions: SikaShield® roof waterproofing membranes. The Product must be fastened securely to the roof deck.
Application below +5 °C
Note: Special measures may be compulsory for installation below +5 °C ambient temperature due to safety requirements in accordance with national regulations.
Note: Installation of ancillary products, such as contact adhesives or cleaners is limited to temperatures above +5 °C. Refer to relevant Product Data Sheets for further information.
