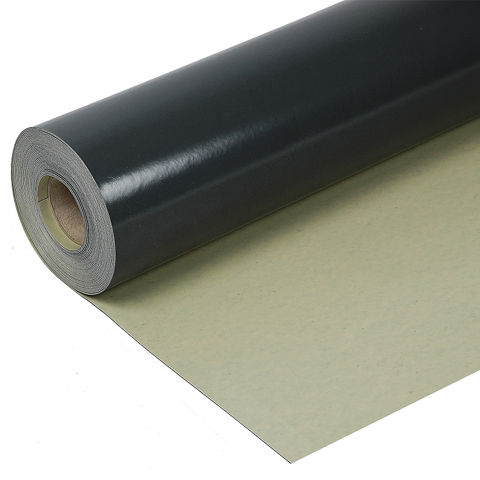

Sarnafil® TG 63-13

FPO Protection Sheet

Sarnafil® TG 63-13 is a protection sheet based on flexible polyolefins (FPO) with a glass non-woven flame retardant inlay.

  • Hot air weldable
  • Good mechanical strength
Product Data Sheet Show all documents

Usage

  • Protective layer on top of Sarnafil® T roof waterproofing membranes for ballasted flat roof systems


Advantages

  • Hot air weldable
  • Good mechanical strength

Packaging

Length

25,00 m

Width

2,00 m

Weight

65,00 kg

Colour

Surface

Smooth

Colour top surface

Greenish

Colour bottom surface

Dark grey

Product Details

Product Information

Chemical Base

Flexible Polyolefins (FPO)

Shelf Life

5 years from date of production.

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between +5 °C and +30 °C. Store in a horizontal position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Length

25,00 m

Width

2,00 m

Thickness

1,3 mm (-5 % / +10 %)

(EN 1849-2)

Mass per unit area

1,3 kg/m2 (-5 % / +10 %)

(EN 1849-2)
System information

System Structure

The following products must be considered for use depending on roof design:

  • All types of Sarnafil® T membranes
  • Sarnacol® T 660

Compatibility

Not resistant to tar and oil.
Technical Information

Resistance to Impact

hard substrate≥  600 mm

soft substrate

≥  800 mm

Resistance to Root Penetration

Pass

(EN 13948)

Tensile Strength

≥  6 N/mm2

(EN 12311-2)

Elongation

≥  400 %

(EN 12311-2)

Dimensional Stability

longitudinal (md)1)

≤  |0,3| %
transversal (cmd)2)≤  |0,3| %

1) md = machine direction
2) cmd = cross machine direction

Foldability at Low Temperature

≤  -10 °C

(EN 495-5)

Reaction to Fire

Class E

(EN 11925-2, classification to EN 13501-1)

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

APPLICATION

Overlap the sheets by 80 mm and hot air welded with a hand welder, Sarnamatic automatic welder or any other similar automatic welder.
