Sika® MetalSheet FBV

Sika® MetalSheet FBV

Coated metal sheet for joint waterstop with adhesion to fresh concrete for waterproofing concrete construction joints

The Sika® MetalSheet FBV joint waterstop is a galvanized metal sheet with a special coating, applied on one side to increase its adhesion to fresh concrete.  This coating produces a durable watertight bond into the concrete structure.

  • Approved for use against water under pressure, up to a 20 m head
  • Easy, quick and safe to install due to the FBV coating
  • Installation is not limited by the weather
Product Data Sheet Show all documents

Usage

Waterproofing of construction joints in reinforced concrete structures (White Box).

Advantages

  • Approved for use against water under pressure, up to a 20 m head
  • Easy, quick and safe to install due to the FBV coating
  • Installation is not limited by the weather

Packaging

Type

Width

Length

Packing unit

Sika® MetalSheet FBV set*

150 mm

15 m

1 roll + accessories in card-box

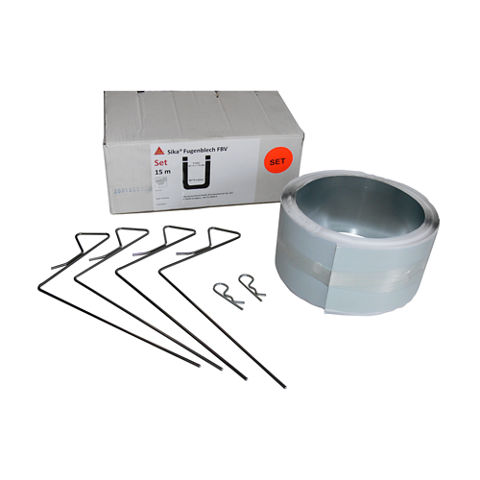

* Set includes the  following accessories: 1roll Sika® MetalSheet FBV, 30 mounting brackets; 4 jointing clamps

Colour

Grey with a transparent coating on one side and a white release-liner.

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

General Approval Certificate, MFPA Leipzig
Product Information

Chemical Base

Hot-dip galvanized steel with polymer coating

Shelf Life

36 months

Storage Conditions

Protect the coated metal sheet from exposure to contamination and direct sunlight, store in a dry place, safe from weathering and mechanical damage. Store at temperatures between +5°C and +35°C.

Surface

Coating Density:  0.96 g/cm3

Thickness

0.8 mm (0.6 mm metal-sheet + 0.2 mm coating)

Mass per unit area

4800 g/m2



Application

Application Information

Ambient Air Temperature

+ 5°C up to + 40°C

Tip: For installing in cold periods, the coating can be warmed up to +5°C with a heating dryer / hot air device; so the connections can be bonded correctly.
