Product Data Sheet
Show all documents

Sikafloor®-3310

2-part, PUR elastic, low VOC, self-smoothing wearing course for Sika® Comfortfloor® Systems

Sikafloor®-3310 is a two-part, solvent free, elastic, self-smoothing, aromatic PUR resin.

  • Very low VOC emission.
  • Solvent free.
  • Permanently elastic.
  • Good mechanical resistance.
  • Reduces contact sound.
  • Easy to apply.
  • Low maintenance finish.
  • Can be filled with quartz sand.
Contact Us
Product Data Sheet
Show all documents

Usage

  • Elastic smooth wearing course for the Sika® Comfortfloor® Systems.
  • Particularly suitable for hospitals, schools, sales premises, showrooms, entrance halls, lobbies, open-plan offices, museums, etc.
  • For interior use only.


Advantages

  • Very low VOC emission.
  • Solvent free.
  • Permanently elastic.
  • Good mechanical resistance.
  • Reduces contact sound.
  • Easy to apply.
  • Low maintenance finish.
  • Can be filled with quartz sand.

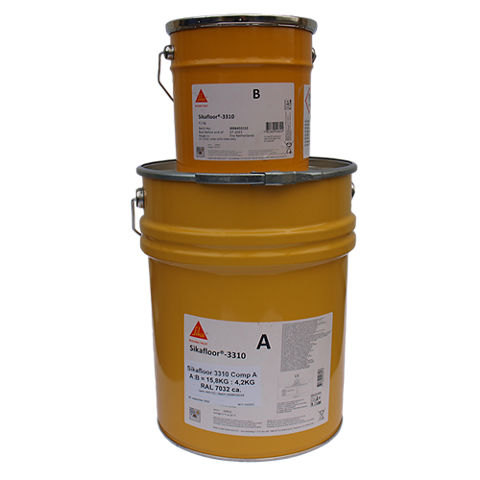

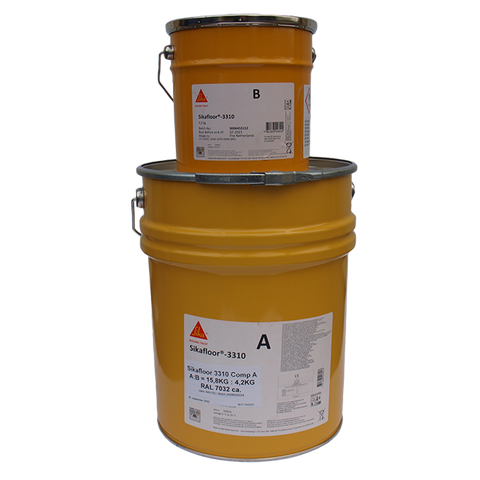

Packaging

Part A

15.8 kg containers

Part B

4.2 kg containers

Part A+B

20.0 kg ready to mix units

Colour

Resin - part A

Coloured, liquid

Hardener - part B

Light brown, transparent, liquid

Available in RAL 1014, RAL 2000, RAL 3009, RAL 5015, RAL 6010, RAL 7042, RAL 8002, RAL 9001, RAL 9005.
The colour of the Sikafloor®-3310 has to be approximately adjusted to the colour of the Sikafloor®-305 W seal / top coat.
Applied colours selected from colour charts will be approximate. For colour matching: Apply colour sample and confirm selected colour under real lighting conditions.
When product is exposed to direct sunlight, there may be some discolouration and colour variation, this has no influence on the function and performance of the floor finish.

Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

Conformity with LEED v2009 IEQc 4.2: Low-Emitting Materials - Paints and Coatings.
Product Information

Chemical Base

PUR

Shelf Life

6 months from date of production

Storage Conditions

The product must be stored properly in original, unopened and undamaged sealed packaging, in dry conditions at temperatures between +5 °C and +30 °C.
Prolonged vibrations and higher ambient temperatures during transportation can result in settling of component A, which makes mixing more difficult. Prolonged storage at low temperatures can result in crystallizing of component B.



Density

Mixed resin

~1.40 kg/l

Mixed resin (with QS 0.1-0.3 mm 1:0.5)~1.70 kg/l

All Density values at +23°C.

Solid content by mass

~100%

Solid content by volume

~100%
Technical Information

Shore A Hardness

~84 (14 days / +23 °C) (unfilled)

(DIN 53505)

Tensile Strength

> 6.0 N/mm² (14 days / +23 °C) (unfilled)

(DIN 53504)

Tensile adhesion strength

> 1.5 N/mm2 (failure in concrete)

(EN 13892-8)

Tear Strength

~20 N/mm (14 days / +23°C) (unfilled)

(ISO 34-1)

Chemical Resistance

Sikafloor®-3310 always has to be sealed with Sikafloor®-305 W. Therefore, refer to chemical resistance of Sikafloor®-305 W.

Application

Application Information

Mixing Ratio

Part A : part B = 79 : 21 (by weight)

Layer Thickness

Film thickness unfilled ~2.0 mm at 2.80 kg/m²
Film thickness filled ~2.0 mm at 3.40 kg/m²

Refer to the respective System Data Sheet.

Product Temperature

+15 °C min. / +30 °C max.

Ambient Air Temperature

+15 °C min. / +30 °C max.

Relative Air Humidity

80 % r.h. max.

Dew Point

Beware of condensation!
The substrate and uncured floor must be at least 3 °C above dew point to reduce the risk of condensation or blooming on the floor finish.

Substrate Temperature

+15 °C min. / +30 °C max.

Substrate Moisture Content

< 4 % pbw moisture content.
Test method: Sika®-Tramex meter, CM - measurement or Oven-dry-method. No rising moisture according to ASTM (Polyethylene-sheet).

Pot Life

Temperature

Time

+10 °C

~24 minutes

+20 °C

~18 minutes

+30 °C~15 minutes

Curing Time

Before overcoating Sikafloor®-3310 allow:

Substrate temperature

Minimum

Maximum

+10 °C

21 hours

72 hours

+20 °C

15 hours

48 hours

+30 °C

12 hours

36 hours

Applied Product Ready for Use

Temperature

Foot Traffic

Light Traffic

Full Cure

+10 °C

~21 hours

~72 hours

~10 days

+20 °C

~15 hours

~60 hours

~7 days

+30 °C~12 hours~48 hours~5 days
Consumption

Consumption

Unfilled ~1.4 kg/m2/mm
Filled: ~1.7 kg/m2/mm
Application steps

MIXING

Prior to mixing, stir part A mechanically. When all of part B has been added to part A, mix continuously for 2 minutes until a uniform mix has been achieved. To ensure thorough mixing pour materials into another container and mix again to achieve a consistent mix. Over mixing must be avoided to minimise air entrainment.



Mixing Tools

Sikafloor®-3310 must be thoroughly mixed using a low speed electric stirrer (300 - 400 rpm) or other suitable equipment.

APPLICATION

Prior to application, confirm substrate moisture content, relative humidity and dew point.
Sikafloor®-3310 is poured and spread evenly by means of a serrated trowel or pin rake. Once Sikafloor®-3310 is “tack-free” apply the seal coat.

CLEANING OF TOOLS

Clean all tools and application equipment with Thinner C immediately after use. Hardened and/or cured material can only be removed mechanically.
Please refer to the Sika® Method Statement Mixing & Application.
