Sikafloor® DecoDur ES-22 Granite
Sikafloor® DecoDur ES-22 Granite is a highly decorative, coloured, smooth, low VOC floor covering with a granite effect designed for indoor applications.
- Highly decorative
- Low VOC-content
- Good mechanical and abrasion resistance
- Easy application
System Structure
Usage
- Particularly used in the life science, pharmaceutical industries and health care industry
- Education (e.g. Schools and Universities)
- Leisure & Culture (e.g. Museums, Stadiums)
- Retail (e.g. Shopping Malls)
Advantages
- Highly decorative
- Low VOC-content
- Good mechanical and abrasion resistance
- Easy application
Packaging
Please refer to the individual Product Data Sheets
Colour
| Iceberg:
| Bordeaux:
|
| Noblesse:
| Mer Du Nord::
|
| Blue Jean:
|
Appearance
Matt finish
System Details
APPROVALS / STANDARDS
- Particle emission certificate, CSM Statement of Qualification Report GMP A- No. SI 1008-533.
- Biological resistance certificate, CSM Statement of Qualification – ISO 846, very good - Report No. SI 1008-533.
- Eurofins Emission tested according to the AgBBscheme. (AgBB – Committee for Health-related Evaluation of Building Products). Sampling, testing and evaluation were performed according to ISO-16000, Report No.G05308C.
- Fire classification in accordance with EN 13501-1, classification report-No. PB-Hoch-170479-2, Hoch Fladungen, Germany, March 2017.
- Slip resistance certificate according to DIN 51130, class R9, Report No.12 6404-S/11, MPI Institute, August 2011, Germany.

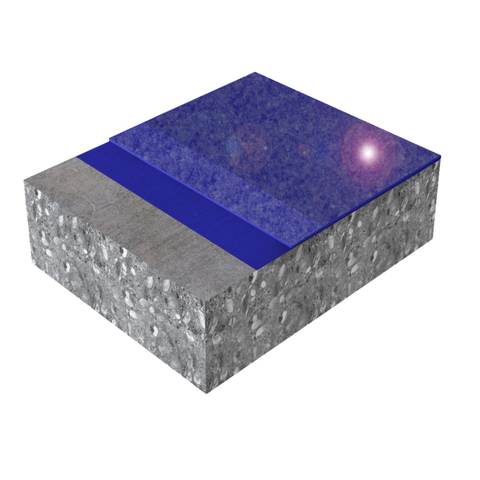

System Structure
Sikafloor® DecoDur ES-22 Granite system
| 1. Primer | Sikafloor®-264N |
| 2. Wearing coat | Sikafloor®-169 + Sika-DecoFiller |
| 3. Top coat | Sikafloor®-304 W |
Composition
Epoxy
Nominal thickness
~2-3 mm
Shelf Life
Please refer to the individual Product Data Sheets
Storage Conditions
Please refer to the individual Product Data Sheets
Compressive Strength
| ~75 N/mm2 (7 days / +23°) | (EN-196-1) |
Reaction to Fire
Bfl-S1 | (DIN EN 13501-1) |
Chemical Resistance
Resistant to many chemicals. Contact Sika technical service for specific information.
Skid / Slip Resistance
| R9 | (DIN 51130) |
Application
Product Temperature
Please refer to the individual Product Data Sheets
Ambient Air Temperature
+10 °C min. / +30 °C max.
Relative Air Humidity
80 % r.h. max.
Dew Point
Beware of condensation!
The substrate and uncured floor must be at least 3 °C above dew point to reduce the risk of condensation or blooming on the floor finish.
Substrate Temperature
+10 °C min. / +30 °C max.
Substrate Moisture Content
When performing application work with Sikafloor® DecoDur ES-22 Granite, the substrate moisture content must not exceed 4 % pbw measured by Tramex.
Test method: Sika®-Tramex meter, CM measurement or oven-dry-method.
No rising moisture according to ASTM (Polyethylene-sheet).
Waiting Time / Overcoating
Before applying Sikafloor®-169 on Sikafloor®-156/-161/-264/-169 allow:
| Substrate temperature | Minimum | Maximum |
| +10 °C | 36 hours | 4 days |
| +20 °C | 12 hours | 2 days |
| +30 °C | 8 hours | 1 day |
Before applying Sikafloor®-304 W on Sikafloor®-169 allow:
| Substrate temperature | Minimum | Maximum |
| +10 °C | 45 hours | 4 days |
| +20 °C | 36 hours | 3 days |
| +30 °C | 24 hours | 2 days |
Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.
Applied Product Ready for Use
Sikafloor®-169
| Temperature | Foot traffic | Light traffic | Full cure |
| +10 °C | ~ 48 hours | ~ 6 days | ~ 10 days |
| +20 °C | ~ 30 hours | ~ 4 days | ~ 7 days |
| +30 °C | ~ 20 hours | ~ 3 days | ~ 5 days |
Sikafloor®-304 W
| Temperature | Foot traffic | Light traffic | Full cure |
| +10 °C | ~ 30 hours | ~ 48 hours | ~ 6 days |
| +20 °C | ~ 16 hours | ~ 24 hours | ~ 4 days |
| +30 °C | ~ 12 hours | ~ 18 hours | ~ 3 days |
Consumption
Sikafloor® DecoDur ES-22 Granite system
| Coating System | Product | Consumption |
| Primer | 1-2 x Sikafloor®-264N | 1-2 × ~0.4–0.5 kg/m² |
| Wearing coat | 1 pbw Sikafloor®-169 + 1.5 pbw Sikafloor®-DecoFiller | ~3.5–4.5 kg/m2 |
| Top coat | 1 x Sikafloor®- 304 W (Matt finish)* | ~0.15 kg/m² |
* Before applying Sikafloor®-304 W please refer to the individual product data sheet
CLEANING
Please refer to Sikafloor®‐ Cleaning Regime
FAQ
Sika Decodur ES-22 is an interior decorative epoxy flooring system used in commercial, public, and institutional buildings. It’s ideal for high-traffic areas such as hospitals, laboratories, universities, shopping malls, museums, and stadiums.
Benefits include an eye‑catching granite effect finish, low‑VOC emissions for healthier indoor air, good wear and abrasion performance, and user‑friendly application. It balances design appeal with functional durability.
Typical system thickness is around 2–3 mm. Reaction to fire classification is Bfl‑s1 under EN 13501‑1. Slip resistance is rated R9 per DIN 51130. It is designed for easy application and includes components like Sikafloor ‑169 and Sikafloor ‑304 W.
This system is ideal for commercial, institutional and decorative interiors - such as retail malls, education and health care spaces, museums and life‑science zones - where a premium look with robust performance is required.
Sikafloor DecoDur ES‑22 Granite is a highly decorative epoxy floor covering offering a smooth granite‑effect finish for indoor environments. It features low VOC content, good mechanical and abrasion resistance, and is designed for areas where aesthetics and performance are both key.
