Sikafloor® DecoDur EB-26 Quartz
Sikafloor® DecoDur EB-26 Quartz is a decorative epoxy coloured flooring system. It provides a hard wearing, seamless, slip resistance gloss finish.
- Good resistance to abrasion
- Good resistance to specific chemicals
- Decorative design
- Good mechanical resistance
- Seamless and hygienic
System Structure
Usage
Sikafloor® DecoDur EB-26 Quartz is used in the following commercial and public buildings and areas:- Airports
- Manufacturing facilities and workshops
- The System may only be used by experienced professionals.
- The System may only be used for interior applications.
Advantages
- Good resistance to abrasion
- Good resistance to specific chemicals
- Decorative design
- Good mechanical resistance
- Seamless and hygienic
Appearance
Slip resistant finish
System Details
APPROVALS / STANDARDS
-
Fire Classification Report EN 13501-1, Ghent, No. CR 22-0345-01
-
Slip resistance test DIN 51130, Roxeler, No.020076-20-11

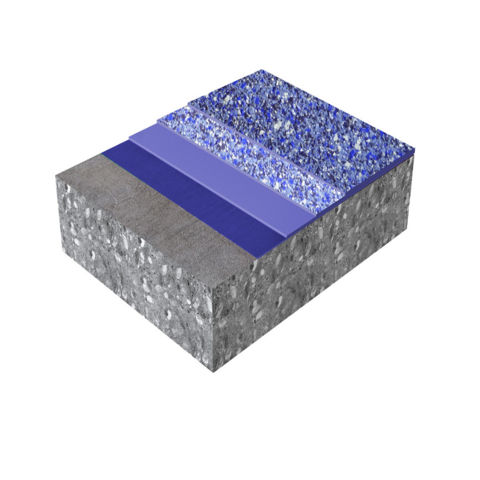

System Structure
Sikafloor® DecoDur EB-26 Quartz (~2-3 mm)
| Layer | Product |
| Primer | Sikafloor®-150 Plus, or Sikafloor®-151, or Sikafloor®-1590 |
| Wearing layer | Sikafloor®-264 Plus |
| Broadcast | Sika® Quartz PU (0.3–0.8 mm or 0.7–1.2 mm) |
| Top coat | Sikafloor®-169 |
Contact Sika Technical Service for information on choosing the right primer for your project.
Composition
Epoxy
Nominal thickness
2 mm to 3 mm
Abrasion Resistance
Cured 7 days at +23 °C | 2 g (H22 / 1000 g / 1000 cycles) |
Tensile adhesion strength
≥ 1.5 MPa | (EN 1542) |
Reaction to Fire
Class Bfl-s1 | (EN 13501-1) |
Chemical Resistance
Laboratory-defined resistance to many individual chemicals. Before proceeding, contact Sika Technical Service for specific information.
Skid / Slip Resistance
| Class | R 11 |
Application
Ambient Air Temperature
Maximum | +30 °C |
Minimum | +10 °C |
Relative Air Humidity
Maximum | 80 % r.h. |
Dew Point
Refer to the individual Product Data Sheet.
Substrate Temperature
Maximum | +30 °C |
Minimum | +10 °C |
Substrate Moisture Content
Refer to the individual Product Data Sheet.
Waiting Time / Overcoating
Decorative slip resistant epoxy quartz finish flooring system
Before applying Sikafloor®-264 Plus on the primer allow:
Substrate temperature | Minimum | Maximum |
+10 °C | 24 hours | 3 days |
+20 °C | 12 hours | 48 hours |
+30 °C | 8 hours | 24 hours |
Before applying Sikafloor®-169 on Sikafloor®-264 Plus allow:
Substrate temperature | Minimum | Maximum |
+10 °C | 30 hours | 4 days |
+20 °C | 24 hours | 2 days |
+30 °C | 16 hours | 1 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Applied Product Ready for Use
Temperature | Foot traffic | Light traffic | Full cure |
+10 °C | 45 hours | 6 days | 10 days |
+20 °C | 36 hours | 4 days | 7 days |
+30 °C | 24 hours | 3 days | 5 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Consumption
| Layer | Product | Consumption |
| Primer | Sikafloor®-150 Plus, or Sikafloor®-151, or Sikafloor®-1590 | 1–2 × 0.3–0.5 kg/m² |
| Wearing layer | Sikafloor®-264 Plus | 0.8 kg/m² |
| Broadcast | Sika® Quartz PU (0.3–0.8 mm or 0.7–1.2 mm) | 3.0–4.0 kg/m² |
| Top coat | Sikafloor®-169 | 0.6–0.9 kg/m² |
Note: Consumption data is theoretical and does not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply the Product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.
FAQ
Ensure substrate preparation is correct: avoid substrates with rising moisture, protect the freshly applied floor from dampness or condensation for at least 24 hours, and apply products from the same batch for colour consistency. For cleaning, adhere to the manufacturer’s cleaning regime. Underfloor heating or high point loads in high temperature may cause imprinting.
Ensure substrate preparation is correct: avoid substrates with rising moisture, protect the freshly applied floor from dampness or condensation for at least 24 hours, and apply products from the same batch for colour consistency. For cleaning, adhere to the manufacturer’s cleaning regime. Underfloor heating or high point loads in high temperature may cause imprinting.
Key features include: decorative appearance with coloured quartz broadcast, a nominal thickness of approx. 2‑3 mm, slip resistance rated R11, fire reaction classification Bfl‑S1 in accordance with EN 13501‑1, and chemical/mechanical resistance appropriate for such flooring environments.
Key features include: decorative appearance with coloured quartz broadcast, a nominal thickness of approx. 2‑3 mm, slip resistance rated R11, fire reaction classification Bfl‑S1 in accordance with EN 13501‑1, and chemical/mechanical resistance appropriate for such flooring environments.
This flooring system is suitable for interior applications such as retail spaces, shopping malls, airports, transport hubs and other commercial/pedestrian heavy zones. It is intended for experienced flooring contractors and should be used on appropriate substrates without rising moisture.
This flooring system is suitable for interior applications such as retail spaces, shopping malls, airports, transport hubs and other commercial/pedestrian heavy zones. It is intended for experienced flooring contractors and should be used on appropriate substrates without rising moisture.
DecoDur EB‑26 Quartz is a decorative coloured quartz broadcast epoxy flooring system designed for indoor use. It’s low in volatile organic compounds (VOC), features a slip‑resistant finish (R11 rating), and is engineered for good mechanical and abrasion resistance - ideal for commercial, retail or high‑footfall areas.
DecoDur EB‑26 Quartz is a decorative coloured quartz broadcast epoxy flooring system designed for indoor use. It’s low in volatile organic compounds (VOC), features a slip‑resistant finish (R11 rating), and is engineered for good mechanical and abrasion resistance - ideal for commercial, retail or high‑footfall areas.
