Sikafloor® MultiDur EB-10 ECC
Sikafloor® MultiDur EB-10 ECC is a broadcast, coloured, rigid flooring coating system, formulated with epoxy resins. It is used for damp substrates in areas subject to high mechanical stress and frequent traffic.
- Good resistance to abrasion
- Good resistance to specific chemicals
- Good mechanical resistance
- Provides a very good bond to green, hardened and damp, or dry concrete
- Seamless
- Tolerant to substrates with high moisture content
System Structure
Usage
Sikafloor® MultiDur EB-10 ECC is used in industrial buildings such as:- Car park decks
- Food and beverage facilities
- Logistics facilities and warehouses
- Manufacturing facilities and workshops
- The System may only be used for interior applications.
Advantages
- Good resistance to abrasion
- Good resistance to specific chemicals
- Good mechanical resistance
- Provides a very good bond to green, hardened and damp, or dry concrete
- Seamless
- Tolerant to substrates with high moisture content
Colour
Available in various colour shades
Appearance
Slip-resistant, gloss finish
System Details

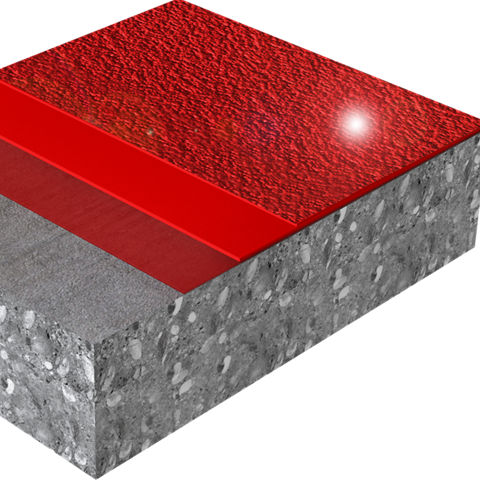

System Structure
Sikafloor® MultiDur EB-10 ECC
| Layer | Product |
| Primer | Sikafloor®-155 WN, or Sikafloor® EpoCem® Modul (AB) |
| Levelling | Sikafloor®-81 EpoCem® |
| Broadcast | Quartz sand (0.3–0.8 mm) |
| Top coat | Sikafloor®-264 Plus |
Composition
Epoxy
Nominal thickness
3 mm to 5 mm
Tensile adhesion strength
≥ 1.5 MPa | (EN 1542) |
Application
Ambient Air Temperature
Maximum | +30 °C |
Minimum | +10 °C |
Relative Air Humidity
Maximum | 80 % r.h. |
Dew Point
Refer to the individual Product Data Sheet.
Substrate Temperature
Maximum | +30 °C |
Minimum | +10 °C |
Substrate Moisture Content
The Product can be applied on green or damp concrete with no standing water. Allow for at least 3 days for early concrete shrinkage to occur to prevent shrinkage cracks from appearing on the wearing surface.
Waiting Time / Overcoating
Before applying Sikafloor®-81 EpoCem® on Sikafloor®-155 WN or Sikafloor® EpoCem® Modul allow:
Temperature | Minimum | Maximum |
+10 °C | 12 hours | 3 days |
+20 °C | 6 hours | 48 hours |
+30 °C | 4 hours | 24 hours |
Sikafloor®-81 EpoCem® can be overcoated with vapour impermeable coatings when the surface humidity falls below 4 %. Not earlier than:
Substrate temperature | Waiting time |
+10 °C | 2 days |
+20 °C | 1 day |
+30 °C | 1 day |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Applied Product Ready for Use
Temperature | Foot traffic | Light traffic | Full cure |
+10 °C | 30 hours | 6 days | 10 days |
+20 °C | 24 hours | 4 days | 7 days |
+30 °C | 16 hours | 2 days | 5 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Consumption
| Layer | Product | Consumption |
| Primer | Sikafloor®-155 WN (diluted with 10 % water), or Sikafloor® EpoCem® Modul (AB) | 1 × 0.3–0.5 kg/m² |
| Levelling | Sikafloor®-81 EpoCem® | 1 × 2.25 kg/m² per mm (resin) |
| Broadcast | Quartz sand (0.3–0.8 mm) | 4–6 kg/m² (broadcast) |
| Top coat | Sikafloor®-264 Plus | 1 × 0.6–0.8 kg/m² |
Note: Consumption data is theoretical and does not account for additional material due to surface porosity, surface profile, variations in level, wastage, or other factors. Apply the Product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.
