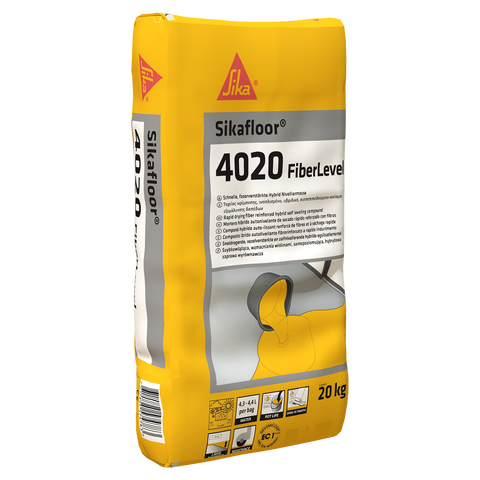

Sikafloor®-4020 FiberLevel

• Contributes towards satisfying Materials and Resources (MR) Credit: Building Product Disclosure and Optimization — Material Ingredients under LEED® v4

• VOC emission classification GEV Emicode EC1^plus

• Environmental Product Declaration (EPD) in accordance with EN 15804. EPD independently verified by Institut für Bauen und Umwelt e.V. (IBU)

• CE marking and declaration of performance based on EN 13813:2002 Screed material and floor screeds — Screed material — Properties and requirements — Calcium sulfate screed material

Hybrid technology, containing calcium sulphate and cement

12 months from the date of production

The Product must be stored in original, unopened and undamaged packaging in dry conditions at temperatures between +5 °C and +35 °C. Always refer to the packaging.

Refer to the current Safety Data Sheet for information on safe handling and storage.

• When using the Product underneath resinous floors, apply a primer. See the Application section for instructions.

• When using the Product under ceramic tiles and stone coverings, use quick-drying primers and rapid setting adhesives.

• When using the Product on substrates with high movement capacity, the flexibility of the tile adhesive must be higher than the movement of the substrate.

A2_fl–S1

≤ 75 %

Before applying a floor covering, make sure the Product has achieved the moisture content value required by the covering manufacturer. Refer to the manufacturer's Product Data Sheet for the respective covering.

The Product can be covered as follows:

Times measured at an ambient temperature of +20 °C, a substrate temperature of +15 °C with a 65 % relative humidity.

Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity. Times are also dependant on layer thickness.

Foot traffic: 2 hours

Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.

1.6 kg/m² per mm of thickness

Note: Consumption data is theoretical and does not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply the Product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.

Select the most appropriate equipment required for the project.

SUBSTRATE PREPARATION EQUIPMENT

• Abrasive blasting cleaning equipment

• Planing machine

• Scarifying machine

• High-pressure water blasting equipment

• Sanding equipment

For other types of preparation equipment, contact Sika Technical Services.

MIXING EQUIPMENT

• Electric single or double paddle mixer (< 600 rpm)  with helical disc-shaped or spiral helix paddle

• Scraper

• Clean mixing containers

For other types of mixing equipment, contact Sika Technical Services.

APPLICATION EQUIPMENT

• Mixed material carrier

• Pin leveller (pin rake)

• Smoothing trowels

For types of pumping equipment, contact Sika Technical Services.

Suitable substrates:

• Concrete

• Cement

• Rapid cement screeds

• Calcium sulphate screeds

• OSB boards (class 3–4)

• Parquet flooring

• Wooden planks

• Chipboard (P4–P7)

• Broadcasted mastic asphalt screeds (IC 10 and IC 15) (EN 13813)

• Magnesia screeds

• Ceramic tiles

• Natural stones

Substrate quality:

• Cementitious substrates, such as concrete and screed, and mastic asphalt must be sound.

• Substrates must be clean, dry and free of all contaminants such as dirt, oil, grease, polish, coatings, water-soluble and water-resistant adhesives, varnish, laitance, surface treatments and loose friable material.

• If using the Product on wooden substrates with high movement capacity, the flexibility of the tile adhesive must be higher than the movement of the substrate.

IMPORTANT

Impaired Product properties due to substrates with rising moisture

1. Do not apply the Product on substrates with rising moisture.
2. If rising moisture can occur, apply an effective damp-proof membrane that complies with the applicable national standard.

IMPORTANT

Surface defects due to voids in the substrate

Voids and blow holes in the substrate will weaken the surface and damage the covering Product if not repaired during the preparation process.

1. Fully expose blow holes and voids during surface preparation to identify the required repairs.

CEMENTITIOUS, CALCIUM SULPHATE, MASTIC ASPHALT, CERAMIC TILE AND NATURAL STONE SUBSTRATES

1. Remove separation and sinter layers.
2. IMPORTANT The final texture of the substrate must be open-textured and gripping. Remove weak cementitious and levelling layers, and fully expose defects such as blow holes and voids. Note Suitable methods for surface preparation are abrasive blast cleaning, grinding, planing or scarifying equipment, depending on the type of substrate.
3. Repair or relay broken or loose tiles and stones.
4. Repair and fill blow holes and voids using appropriate products from the Sikafloor®, Sikadur® and Sikagard® range of materials.
5. Any repair materials must be cured before starting to apply the Product.
6. Before applying the Product, remove all dust, loose and friable material from the application surface with an industrial vacuuming equipment.
7. Apply Sikafloor®-02 Primer or undiluted Sikafloor®-01 Primer to the substrate prior to the application of the Product. Refer to the individual Product Data Sheets for further information.

WOOD-BASED SUBSTRATES SUCH AS CHIPBOARD, OSB, PARQUET, WOODEN PLANKS

1. Confirm that wood substrates are firmly fixed and do not move.
2. IMPORTANT The final texture of the substrate must be rough-textured and gripping. Abrade the substrate using sanding equipment.
3. Fill joints, cracks or holes with wood filler to prevent leakage of the applied Product.
4. Before applying the Product, remove all dust, loose and friable material from the application surface with an industrial vacuuming equipment.
5. Any repair materials must be cured before starting to apply the Product.

SUBSTRATES WITH WATER-SOLUBLE ADHESIVE RESIDUE

1. Prime the substrate with Sika® Primer MB Rapid, or Sikafloor®-150 Plus, Sikafloor®-151.
2. Fully broadcast the primer with kiln-dried quartz sand.
3. If the primer is not fully broadcast, apply Sikafloor®-02 Primer before applying the Product.

IMPORTANT

Incompatibility with Portland cement

The Product is a special cement binder-based mortar which can expand in contact with standard Portland cements.

1. Do not mix or blend the Product with Portland cements or other binders.

IMPORTANT

Reduced Product performance due to overaddition of water

1. Do not add more than the prescribed water amount to the Product.

1. Pour the recommended clean water quantity into a suitable mixing container.
2. IMPORTANT Use an electric single-paddle or double-paddle mixer (< 600 rpm) with a helical, disc-shaped mixing paddle. Mix the water slowly while gradually adding the complete bag of the Product.
3. Mix continuously for 2 minutes to achieve a smooth, uniform mix.
4. Allow to stand for 3 minutes to allow entrained air to escape and for the mixture to mature.
5. Mix for a further 1 minute.

IMPORTANT

Strictly follow installation procedures

Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions, which must always be adjusted to the actual site conditions.

IMPORTANT

Subfloor cracking due to incorrect assessment of site requirements

1. Bring edge and movement joints through to the finished surface and protect them so the Product will not flow into the joint.
2. Use an isolating strip to prevent the Product bonding onto vertical surfaces, such as pipes, ducts, conduits, walls and columns.
3. Protect the freshly-applied Product from high ambient temperatures, direct sunlight and draughts.

IMPORTANT

Corroded metal and galvanised pipes due to contact with Product

1. Wrap metal and galvanised water pipes with an isolating tape.

IMPORTANT

Impaired Product properties due to contact with moisture

Using the Product in wet areas unprotected may affect its mechanical properties.

1. Protect the Product from coming into contact with moisture.

Incorrect layer thickness of mastic asphalt screeds

Note: If using the Product on mastic asphalt screeds IC 10 and IC 15 according to EN 13813, the Product must have a thickness of at least 3 mm and not exceeding 10 mm.

Subfloor thickness and flatness

Note: The Product must be applied to the required thickness and surface flatness as specified by the floor covering manufacturer.

APPLYING A SINGLE LAYER

1. Pour the mixed Product onto the substrate.
2. Spread the product evenly using a smoothing trowel or pin leveller (pin rake) to the required thickness.
3. Allow the Product to smooth over the substrate.

APPLYING TWO LAYERS

1. Pour the mixed Product onto the substrate.
2. Spread the product evenly using a smoothing trowel or pin leveller (pin rake) to the required thickness.
3. Allow the Product to smooth over the substrate.
4. Allow the first layer to harden.
5. Prime the first layer with Sikafloor®-01 Primer diluted 1:1 with water.
6. IMPORTANT: In a two-layer application, do not exceed the maximum layer thickness of 20 mm. The thickness of the second layer must not exceed the thickness of the first layer. Apply a second layer of the Product.

RECOMMENDED SURFACE CONDITIONING FOR RESIN FLOORING

1. Wait until the Product is ready for overcoating.
2. Apply a coat of either Sikafloor®-150 Plus or Sikafloor®-151 using a roller.
3. Allow the primer to harden until the surface is tack-free.
4. Apply a scratch coat of Sikafloor®-151 with 2 % Sika® Extender T.
5. Apply the resin flooring product or system.

Clean all tools and application equipment with water immediately after use. Hardened material can only be removed mechanically.
