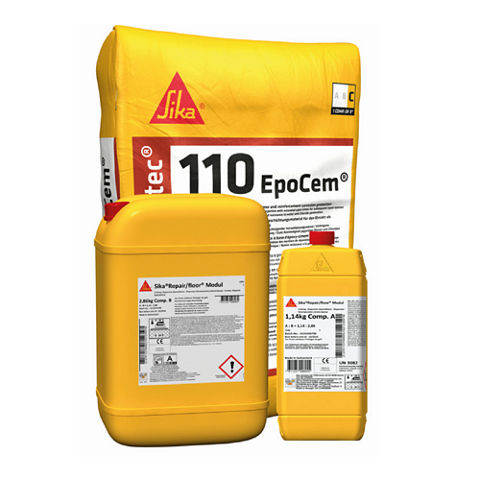

SikaTop® Armatec®-110 EpoCem®

SikaTop® Armatec®-110 EpoCem® meets the requirement of EN 1504-7.

Portland cement, epoxy resin, selected aggregates and additives

12 months

Store properly in undamaged original sealed packaging, in dry cool conditions between +5 °C and +25 °C.

A+B+C density: ~2.0 kg/l at 23 °C

SikaTop® Armatec®-110 EpoCem® is part of the Sika® repair system complying with the relevant part of European Standard EN 1504 and comprising of:

Pass

μH₂O ~500

+5 °C minimum; +30 °C maximum

+5 °C minimum; +30 °C maximum

~ 3 hours (at +20 °C)

Maximum waiting time before application of repair mortar
Sika repair mortars and non-fast setting concrete can be applied on SikaTop® Armatec®-110 EpoCem® within a maximum time of:

As reinforcement corrosion protection coating:
~ 2 kg per m² and application layer (~1 mm thick)
In total minimum 2 layer thickness (~2 mm thick)

As a bonding primer, substrate:
> 1.5 to 2.0 kg per m² /mm dependent on substrate conditions

SikaTop® Armatec®-110 EpoCem® can be mixed with a low speed (< 250 rpm) electric drill mixer.
Shake components A and B thoroughly before opening. Pour liquid components A and B into a suitable mixing vessel and mix for 30 seconds. While still mixing components A and B slowly add powder component C. Mix the three components together for a minimum 3 minutes, minimising addition of air. Leave to stand for 5–10 minutes until mixed coating material exhibits a brush-able, weakly dripping consistency.
DO NOT ADD WATER

As reinforcement corrosion protection:
Apply first layer approx. 1 mm thick, using medium hard brush or spray gun to the cleaned reinforcement. Apply 2^nd layer when the first coat is  fingernail hard (~2–3 hours at +20 °C). Apply subsequent repair mortars wet on dry (so not to wipe off the protection layer).


As a bonding primer:
Apply using medium hard brush or spray gun to prepared substrate. To achieve good bond, SikaTop® Armatec®-110 EpoCem® must be applied well into the substrate, filling all pores (minimum layer thickness 0.5 mm). Apply subsequent repair mortars wet on wet Freshly applied SikaTop® Armatec®-110 EpoCem® must be protected against contamination and rain until application of the repair mortar.

Application under dynamic loading:
SikaTop® Armatec®-110 EpoCem® has been tested with the following Sika repair mortars and is certified for dynamic loading applications. Refer to separate product data sheets for further information.

Dry Spray Process:


Wet Spray Process:

Protect from rain until the material has hardened.

Clean all tools and application equipment with water immediately after use. Hardened material can only be mechanically removed.
