Sikafloor® MultiFlex PS-34 ECF
Sikafloor® MultiFlex PS-34 ECF is a polyurethane, coloured, low VOC emission, conductive, resin based flooring system. It provides a hard-wearing, seamless, chemical resistant, tough-elastic, crack bridging, low maintenance, smooth gloss finish.
- Electrostatically conductive
- Easy to apply
- Flexible and tough elastic
- Good crack-bridging ability
- Good mechanical resistance
- Good resistance to specific chemicals
System Structure
Usage
Sikafloor® MultiFlex PS-34 ECF is used in industrial buildings such as:- Automotive facilities
- Aircraft hangars
- Electronic facilities and data centres
- Logistics facilities and warehouses
- Pharmaceutical facilities
- Manufacturing facilities and workshops
- The System may only be used for interior applications.
Advantages
- Electrostatically conductive
- Easy to apply
- Flexible and tough elastic
- Good crack-bridging ability
- Good mechanical resistance
- Good resistance to specific chemicals
Colour
Available in various colour shades.
Appearance
Smooth gloss finish
System Details
APPROVALS / STANDARDS
-
Reaction to fire EN 13501-1, Sikafloor® MultiFlex PS-34 ECF, GHENT, Test Report No. CR 24-0634-01

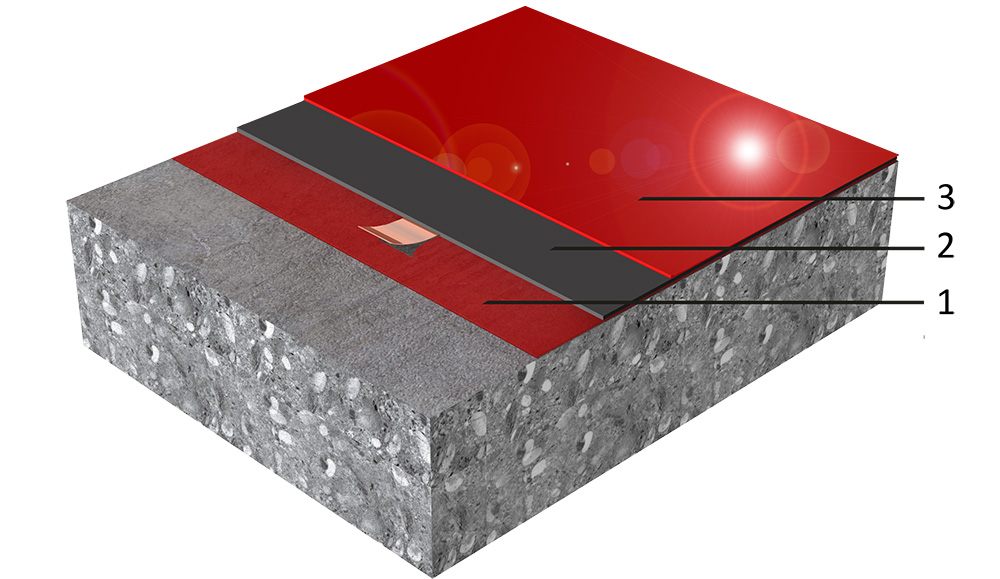

System Structure
Sikafloor® MultiFlex PS-34 ECF
| Layer | Product |
| Primer | Sikafloor®-150 Plus, or Sikafloor®-151 |
| Conductive primer | Sikafloor® Conductive Set Sikafloor®-220 W Conductive |
| Conductive wearing layer | Sikafloor® BC 375 NAS |
System structure: The system structure described in the table must not be changed. Contact Sika Technical Service for information on choosing the right primer for your project.
Composition
Combination of epoxy and polyurethane
Nominal thickness
~1.5 mm
Tensile adhesion strength
| ≥ 1.5 MPa | (EN 1542) |
Electrostatic Behaviour
| Resistance to ground | RG < 109 Ω | (IEC 61340-4-1) |
| Typical average resistance to ground | RG < 105–106 Ω | (EN 1081) |
ECF MEASUREMENT CONDITIONS AND SPECIFICATIONS
All measurement values for the system stated in the System Data Sheet (except those referring to proof statements) were measured using the following equipment and ambient conditions:
| Condition or Equipment | Specification |
| Size of ESD-footwear | 42 (EU) (UK: 8; US: 8,5) |
| Test person weight | 90 kg |
| Ambient conditions | +23 °C and 50 % r.h. |
| Measuring device for measuring resistance to ground | Metriso 2000 or 3000 (Warmbier) or comparable |
| Surface resistance probe | Carbon Rubber electrode. Weight: 2.50 kg |
| Rubber pad hardness | Shore A (60 ±10) |
Measurement results during testing
Note: If values are lower or higher than required, carry out additional measurements about 30 cm around the point where the faulty readings are located. If the re-measured values are in accordance with the requirements, the total area is acceptable. If the requirements cannot be verified, contact Sika Technical Services.
Application
Ambient Air Temperature
Maximum | +30 °C |
Minimum | +10 °C |
Relative Air Humidity
Maximum | 75–80 % r.h. |
Dew Point
Refer to the individual Product Data Sheet.
Substrate Temperature
Maximum | +30 °C |
Minimum | +10 °C |
Substrate Moisture Content
Refer to the individual Product Data Sheet.
Waiting Time / Overcoating
Before applying Sikafloor®-220 W Conductive on the primer layer allow:
Temperature | Minimum | Maximum |
+10 °C | ~17 hours | ~4 days |
+20 °C | ~9 hours | ~48 hours |
+30 °C | ~7 hours | ~24 hours |
Before applying Sikafloor® BC 375 NAS on Sikafloor®-220 W Conductive allow:
Temperature | Minimum | Maximum |
+10 °C | ~26 hours | ~7 days |
+20 °C | ~17 hours | ~5 days |
+30 °C | ~12 hours | ~4 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Applied Product Ready for Use
Temperature | Foot traffic | Light traffic | Full cure |
+10 °C | 48 hours | 3 days | 7 days |
+20 °C | 16 hours | 2 days | 5 days |
+30 °C | 8 hours | 24 hours | 4 days |
Note: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Consumption
| Layer | Product | Consumption |
| Primer | Sikafloor®-150 Plus, or Sikafloor®-151 | 1-2 × 0.3–0.5 kg/m² |
| Levelling | Sikafloor®-150 Plus, or Sikafloor®-151, or | Refer to the individual Product Data Sheet. |
| Conductive primer | Sikafloor® Conductive Set Sikafloor®-220 W Conductive | 1 earthing point per 200–300 m², minimum 2 per room. 0.08–0.10 kg/m² |
| Conductive wearing layer | Sikafloor® BC 375 NAS | 1 × 2.0–2.5 kg/m² |
Note: Consumption data is theoretical and does not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply the product to a test area to calculate the exact consumption of the specific substrate conditions and proposed application equipment.
APPLICATION
ESD CONDUCTIVITY MEASUREMENTS
The recommended number of conductivity measurements is specified in the following table:
| Area | Number of measurements |
| < 10 m² | 6 |
| ≥ 10 m² and < 100 m² | 10 to 20 |
| ≥ 100 m² and < 1000 m² | 50 |
| ≥ 1000 m² and < 5000 m² | 100 |
If the measurements yield values that are outside of the agreed specification, follow these steps:
- Carry out one additional measurement within a radius of approximately 30 cm around the original measuring point.
If the value of the new measurement meets the agreed specification, the original measurement can be disregarded. If the value of the new measurement does not meet the agreed specification, repeat the measurement described above until the fulfilment of the requirements have been verified. If the requirements cannot be verified, contact Sika Technical Services.
INSTALLATION OF EARTHING POINTS
Refer to Sika Method Statement: Sika Method Statement — Sikafloor® Mixing and Application.
Number of earthing connections per room: Minimum of 2 earthing connections. The optimum number of earthing connections depends on the local conditions and must be specified on drawings or other contract documentation.
