Parex® PARLUMIERE STH

HYDRAULIC LIME WATERPROOFING BASE COAT AND BUILDING MORTAR

Hydraulic, lime-based, lightweight, water repellent mortar and render, resistant to sulphates, designed to stabilise masonry which has deteriorated due to salts, saltpetre or damp.

  • Special Damp Treatment
  • Hand or Machine application
Product Data Sheet Show all documents

Usage

PARLUMIERE STH is suitable for waterproofing masonry and for use as a building mortar. It can receive a decorative finish adapted to the PATRIMOINE range of lime renders or it can remain uncovered.

Advantages

  • Special Damp Treatment
  • Hand or Machine application

Packaging

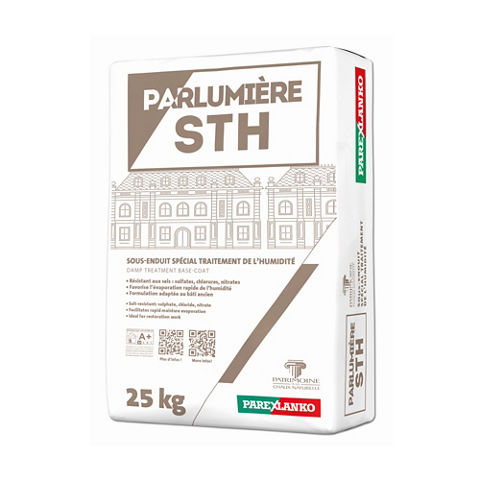

25 kg bags

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

EN998-1
Product Information

Composition

  • Binder: hydrated lime and specific binder resistant to salts (sulphates, chlorides, nitrates).
  • Lime/binder ratio = 55 % minimum by volume
  • Light mineral additives
  • Organic additives: less than 0.3 %

Shelf life

12 Months from date of manufacture

Storage conditions

Dry frost free conditions
Technical Information

Compressive strength

CS I

Capillary absorption

W0

Reaction to fire

 A1

Application

Application Information

Mixing ratio

5.4 – 6.25 L per 25 kg bag
Consumption

Consumption

These values are provided as guidance only and may vary subject to substrate conditions and thickness applied.

  • 1.8 – 2 m2 @ 10 mm per 25 kg bag.
Application steps

EQUIPMENT

  • Manual application: stainless steel trowel/float.
  • Mechanical application:

    MECHANICAL APPLICATION

    SPRAY RENDER MACHINE

    		SPRAYING POT

    Pump pressure

    6 – 8 bars (water)

    Air flow

    60 m3 per hour minimum

    Air pressure

    4 – 6 bars

SURFACE PREPARATION

  • Completely remove existing renders, rake out joints (to approximately 30 mm depth).
  • Systematically clean and dry the substrate.
  • Treat any rising damp (for example with 232 PARINJECTION*).
  • Masonry that is saturated with water must be dried out before being covered.
  • Repairs with PARLUMIERE STH must be carried out a minimum of 7 days before applying a top coat finish.
  • The application of an approved galvanised (internally only) or stainless steel reinforcement mesh may be necessary depending on the type and condition of the masonry.


NB:
PARLUMIERE STH does not stop all, but it slows down the migration of salts and their appearance on the surface.
A long term solution is only possible after completely removing all causes of rising damp.

MIXING

  • Machine mixing time: 5 minutes.
  • Cement mixer mixing time: 5 – 7 minutes.

APPLICATION

  • Mortar should be applied to both sides of the wall.
  • First fill the joints, then when the mortar is dry, apply the base coat to an even depth of 20 mm.
  • Smooth and compact with a notched rule. The surface should be left with a roughend surface if receiving a decorative covering or float-smoothed if left as a final finish.
  • Height of application: minimum 1 m above signs of damp.
  • Drying time before covering PARLUMIERE STH: 7 days minimum.
  • PARLUMIERE FIN*, PARLUMIERE MOYEN*, PAREXAL*: can be applied as a decorative layer of 5 mm plus a textured finish for sprayed finishes or a layer of 7 – 8 mm before float-smoothing or after scraping.
  • CALCIDECO*: 5 mm depth of covering.
