SikaCor®-950 F
HEAVY DUTY COATING FOR STEEL AND CONCRETE
Resistant two-pack coating of low solvent content based on epoxy with mineral fillers. Low solvent content according to Protective Coatings Directive of German Paint Industry Association (VdL-RL 04).
▪ Tough, hard and heavy duty.
▪ Abrasion and impact resistant.
▪ Resistant to water and offers excellent resistance to most chemicals.
Usage
Protective coating for concrete and steel, for buried and submerged structures for hydraulic engineering constructions and as internal coating for tanks and reservoirs (e.g. sewage treatment, agricultural and chemical industries, etc.). Also suitable where application onto damp concrete is inevitable.SikaCor®-950 F can be exposed to water immediately after application. However, please take into consideration that solvents get into the water which leads to temporary contamination. Immediate exposure to water should therefore only be considered in special cases and after consulting the authorities for the protection of environment.
Not suitable for surfaces in contact with drinking water.
Advantages
After complete curing SikaCor®-950 F is:▪ Tough, hard and heavy duty.
▪ Abrasion and impact resistant.
▪ Resistant to water and offers excellent resistance to most chemicals.
Packaging

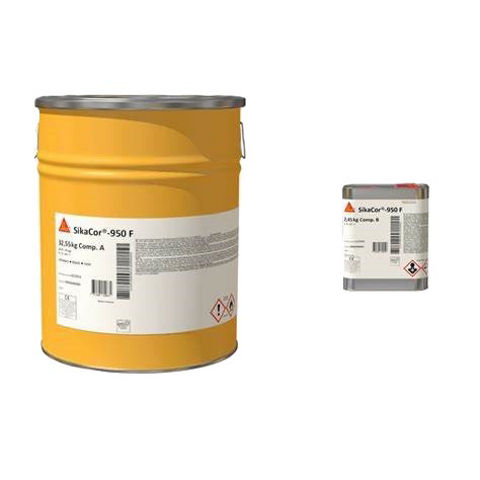

SikaCor®-950 F | 35 kg and 15 kg net. |
Sika® Thinner C | 25 l and 3 l |
Colour
Black, tinted red
Product Details
Shelf Life
2 years
Storage Conditions
In originally sealed containers in a cool and dry environment.
Density
~1.9 kg/l
Solid Content
~75 % by volume
~88 % by weight
Chemical Resistance
Resistant to freshwater, process water, brackish water, seawater, domestic sewage, faeces, diluted inorganic acids and lyes, neutral salts, mineral and fuel oils, grease, detergents, etc.
Industrial wastewater upon request, based on wastewater analysis.
Not resistant to exposure to benzene-hydrocarbons and tar oil.
Thermal Resistance
Dry heat up to approximately +100°C
Warm water up to approximately +60°C
NOTE: Not resistant to warm water at significant differential of temperature gradient!
Application
Mixing Ratio
Components A : B |
By weight | 93 : 7 |
By volume | 100 : 14 |
Product Temperature
Minimum +10°C
Relative Air Humidity
Max. 85 %, except the surface temperature is significantly higher than the dew point temperature, it shall be at least 3 K above dew point.
Under unfavourable conditions, e.g. influence of high air humidity into the fresh coating, surface damages and possibly little alligatoring may occur. However, this will not affect the quality.
Pot Life
At +20°C | ~90 minutes |
At +30°C | ~45 minutes |
Waiting Time / Overcoating
Waiting time between operations up to maximum 150 μm dry film thickness:
Minimum Waiting Time | Maximum Waiting Time | |
At +10°C | 30 hours | 72 hours |
At +15°C | 24 hours | 60 hours |
At +20°C | 12 hours | 48 hours |
At +25°C | 8 hours | 36 hours |
At +30°C | 6 hours | 24 hours |
NOTE: If these maximum waiting times cannot be observed, the surface must be activated by sweep blasting to avoid intercoat adhesion problems.
Prior to application of the next coat, a thorough de-dusting / cleaning is necessary.
Thinner
Use Sika® Thinner S; only thin material where stated.
If necessary, a maximum of 5% Sika® Thinner S may be added to adapt the viscosity.
In this case, an immediate exposure to water is not possible.
Drying time
Drying Time at +20°C:
Dry to touch after ~4 hours, dry to handle after ~12 hours.
Final Drying Time:
At +20°C and good ventilation, final curing is achieved after approximately 7 days.
Curing also takes place at lower temperatures (i.e. below +10°C), but takes longer.
Surface temperature
Minimum +10°C
Consumption
Theoretical material-consumption/coverage without loss for medium dry film thickness of:
Dry film thickness | 150 µm |
Wet film thickness | 200 µm |
Consumption | 0.380 kg/m² |
Coverage | 2.63 m²/kg |
SUBSTRATE PREPARATION
Concrete:
Shall be solid in nature with a gripping surface, free of cement laitance, dust, loose and friable particles and other contamination. Concrete moisture content to be maximum 6%. Sweep blasting increases adhesion. This is particularly important in the case of underwater exposure.
MIXING
Stir component A thoroughly using an electric mixer (start slowly, then increase up to approximately 300 rpm). Add component B carefully and mix both components thoroughly (including sides and bottom of the container). Mix for at least 3 minutes until a homogeneous mixture is achieved. Fill mixed material into a clean container and mix again as described above. During mixing and handling of the materials, always wear protective goggles/glasses/faceshield, suitable gloves and other necessary personal protective equipment.
APPLICATION
The method of application has a major impact on achieving uniform thickness and appearance. Spray application will obtain the best results. The indicated dry film thickness is easily achieved by airless spray. Adding solvents reduces the sag resistance and the dry film thickness. In case of application by roller or brush, additional applications may become necessary to achieve the required coating thickness, depending on type of construction, site conditions, colour shade, etc. Prior to major coating operations, a test application on site may be useful to ensure the selected application method will provide the requested results.
Airless-spraying:
▪ Efficient airless equipment
▪ Pressure minimum 180 bar
▪ Remove sieves
▪ Nozzle size ≥ 0.38 mm (≥ 0.015 inch)
▪ Spraying angle approximately 50°
▪ Diameter of hoses minimum 10 mm (⅜ inch)
▪ Temperature of material minimum +15°C
CLEANING OF TOOLS
Use Sika® Thinner C. Hardened / cured product can only be mechanically removed.
