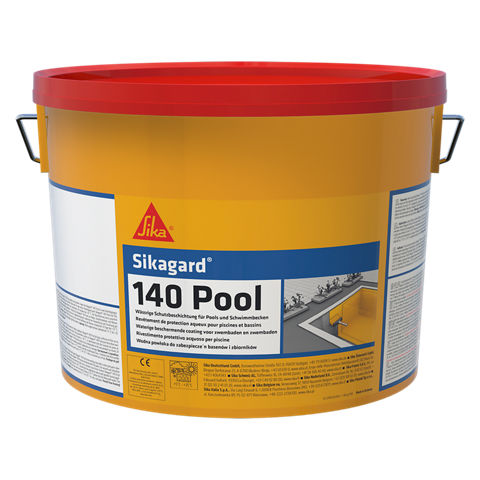

Sikagard®-140 Pool
Acrylic, specialist, water-based coating for swimming pool lining
Sikagard®-140 Pool is a one-part, water-based, coloured, specialist acrylic resin coating with good resistance to chlorine treated water.
- One-part, ready to use.
- Can be applied onto various substrates.
- Easy to apply and to refurbish, can be overcoated directly with itself.
- Good yellowing resistance.
- Good chalking resistance.
- Good resistance to fatty acids from lotions and cosmetics.
- Good resistance to chlorinated water and common swimming pool cleaning chemicals.
- Good opacity (covering power).
- With the addition of kiln-dried quartz sand, slip-resistance can be achieved.
Usage
Sikagard®-140 Pool is used as a:- Protective coating for interior and exterior concrete pools.
- Protective coating for interior and exterior chlorinated swimming pools using automatically controlled water treatment equipment.
- Concrete.
- Sikagard®-720 EpoCem®.
- Sikafloor®-81 EpoCem®.
- Water resistant fibre cement panels (NOT permanently immersed in water).
- Chlorinated rubber coatings.
- Sikagard®-140 Pool.
Advantages
- One-part, ready to use.
- Can be applied onto various substrates.
- Easy to apply and to refurbish, can be overcoated directly with itself.
- Good yellowing resistance.
- Good chalking resistance.
- Good resistance to fatty acids from lotions and cosmetics.
- Good resistance to chlorinated water and common swimming pool cleaning chemicals.
- Good opacity (covering power).
- With the addition of kiln-dried quartz sand, slip-resistance can be achieved.
Packaging
One-Part Container | 10 Litres |
Refer to the current Price List for available packaging variations.
Colour
Cured colour | Available in 4 colours: White, Black, Adriatic Blue and Lake Green. |
Product Details
APPROVALS / STANDARDS
CE marking and declaration of performance based on EN 1504-2:2004 Products and systems for the protection and repair of concrete structures — Surface protection systems for concrete — Coating
Chemical Base
Water-based, specialist acrylic resin
Shelf Life
12 months from date of production
Storage Conditions
The Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +25 °C. Always refer to the packaging.
Refer to the current Safety Data Sheet for information on safe handling and storage.
Density
1.34 kg/l | (EN ISO 2811-1) |
Solid content by mass
63.5 %
Solid content by volume
50.9 %
Chemical Resistance
Resistant to acidic and alkaline detergents, disinfectants and chlorinated water in swimming pools with controlled water treatment equipment.
NOT resistant to organic solvents.
At a higher chlorine concentration (> 0.6 mg/l) or water treatment by ozone (DIN 19643-2) chalking of the surface and discoloration might occur. A refurbishment layer of Sikagard®-140 Pool might become necessary for aesthetic reasons. Sikagard®-140 Pool is NOT suitable for pools using disinfection treatment based on electrolysis.
Skid / Slip Resistance
To achieve a slip / skid resistant texture, add ~5 % by weight kiln-dried 0.1-0.3mm quartz sand. Whilst stirring, add the appropriate amount of sand (for each 10 litre unit, 670 g of sand is sufficient) to the unit and continue mixing for at least 1 minute until evenly dispersed.
Application
Layer Thickness
~120 µm wet film thickness per layer
Product Temperature
Maximum | +30 °C |
Minimum | +8 °C |
Ambient Air Temperature
Maximum | +30 °C |
Minimum | +8 °C |
Relative Air Humidity
Maximum | 80 % r.h. |
Dew Point
Beware of condensation. The substrate and uncured applied Product must be at least +3 °C above the dew point to reduce the risk of condensation or blooming on the surface of the applied Product. Low temperatures and high humidity conditions increase the probability of blooming.
Substrate Temperature
Maximum | +30 °C |
Minimum | +8 °C |
Substrate Moisture Content
Substrate | Test Method | Moisture Content |
Cementitious substrates | Calcium carbide method (CM-method) | ≤ 6 % |
No rising moisture (ASTM D4263, polyethylene sheet).
Waiting Time / Overcoating
Temperature | Minimum | Maximum |
+20 °C | ~16 hours | ~3 days |
+10 °C | ~40 hours | ~4 days |
NOTE: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Applied Product Ready for Use
Before filling the pool leave Sikagard®-140 Pool to cure for at least 14 days after the final application. The temperature must NOT be below +10 °C during the curing process.
NOTE: Times are approximate and will be affected by changing ambient conditions, particularly temperature and relative humidity.
Consumption
160 g/m² per layer, minimum 2 layers to be applied.
NOTE: Consumption data is theoretical and does not allow for any additional material due to surface porosity, surface profile, variations in level, wastage or any other variations. Apply the Product to a test area to calculate the exact consumption for the specific substrate conditions and proposed application equipment.
APPLICATION INSTRUCTIONS
IMPORTANT
Strictly Follow Installation Procedures
Strictly follow installation procedures as defined in Method Statements, Application Manuals and Working Instructions, which must always be adjusted to the actual site conditions.
EQUIPMENT
APPLICATION EQUIPMENT
-
Brush
-
Fleece roller
-
Airless spray equipment
For airless spray application use the following settings:
Pressure: | 180 bar |
Nozzle bore: | 0.38 – 0.66 mm |
Spray angle: | 40 – 60 ° |
SUBSTRATE QUALITY
Existing coatings must be tested to confirm their adhesion to the substrate and their compatibility. As guidance, adhesion test average ≥ 0.8 N/mm2 with no single value below 0.5 N/mm2.
SUBSTRATE PREPARATION
IMPORTANT
Surface defects due to voids in the substrate
Voids and blow holes in the substrate will weaken the surface and damage the covering Product if not repaired during the preparation process.
- Fully expose blow holes and voids during surface preparation to identify the required repairs.
EXPOSED CONCRETE OR CEMENTITIOUS RENDER
- Remove weak cementitious substrates.
- Prepare cementitious substrates mechanically using abrasive blast cleaning, abrasive planing or scarifying equipment to remove cement laitance.
- Before applying thin layer resins, remove high spots by grinding.
- Before applying the Product, remove all dust, loose and friable material from the application surface with an industrial vacuuming equipment.
- Use Sikagard®-720 EpoCem® or Sikafloor®-81 EpoCem® to level the surface or fill cracks, blow holes and voids.
For additional information on Products for levelling and repairing defects, contact Sika® Technical Services.
COATED SUBSTRATE WITH INADEQUATE ADHESION
- Remove existing coatings using suitable removal equipment such as abrasive blast cleaning or high pressure water jetting.
- Prepare cementitious substrates mechanically using abrasive blast cleaning, abrasive planing or scarifying equipment to remove cement laitance.
- Before applying thin layer resins, remove high spots by grinding.
- Before applying the Product, remove all dust, loose and friable material from the application surface with an industrial vacuuming equipment.
- Use Sikagard®-720 EpoCem® or Sikafloor®-81 EpoCem® to level the surface or fill cracks, blow holes and voids.
COATED SUBSTRATE WITH ADEQUATE ADHESION
- Thoroughly clean the surface of all contaminants using pressured water cleaning equipment.
- Lightly abrade or grind the surface with mechanical grinding or abrading equipment to achieve a sheen free surface.
- Before applying the Product, remove all dust, loose and friable material from the application surface with an industrial vacuuming equipment.
APPLICATION
IMPORTANT
Ventilation in confined spaces
Always ensure good ventilation when applying the Product in a confined space.
Exposure to direct sunlight
NOTE: When the product is exposed to direct sunlight, there may be some discolouration and colour variation. This has no influence on the function and performance of the coating.
SPRAY APPLICATION
- Spray apply the Product in a continuous operation and at a speed to achieve a consistent thickness and surface finish.
- Control the layer thickness during application using a thickness gauge.
- The coating must be continuous, pore free and to the required surface finish.
- Protect Product from rain, condensation and water for at least 24 hours at +20 °C and at least 48 hours at +10 °C.
- Apply additional coats as required.
MANUAL APPLICATION
- Apply the Product evenly over the surface with a short pile fleece roller at the required consumption.
- Control the layer thickness during application using a thickness gauge.
- To achieve a smooth finish, smooth the surface with a brush.
- The coating must be continuous, pore-free and to the required surface finish.
- Protect Product from rain, condensation and water for at least 24 hours at +20 °C and at least 48 hours at +10 °C.
- Apply additional coats as required.
CLEANING OF TOOLS
Clean all tools and application equipment with water immediately after use. Hardened / cured material can only be removed mechanically.
