Sika® FastFix®-231 Permeable Bedding Concrete

BS 7533 compliant, free-draining, highly permeable bedding mortar for paving units

Sika® FastFix®-231 Permeable Bedding Concrete is a one-component, cement-based, polymerised, bedding mortar for clay, concrete, natural stone or porcelain paving units. It can also be used to lay Cropped Granite Setts. The low water requirement enables the placed mortar to rapidly develop compressive strength, required to support the placed paving elements. The mix design creates a high permeability substrate (ideal for Sustainable Urban Drainage Systems) which is fully compliant with BS 7533.

  • High water permeability (free-draining).
  • Fully compliant with BS 7533 (Type 35 bedding mortar).
  • Available in splashproof, 'contractor-friendly' 25 kg bags, ideal for site use.
  • Pre-batched for simplicity: one-component only requiring a measured addtion of water.
  • Wide range of application thicknesses achievable (30 to 75 mm).
  • Key component of Concrete Block Permeable Paving (CBPP).
  • Prevents surface water developing, eliminating surface ice, thereby reducing the likelihood of slippages.
  • No surface ponding means no rain splashing from standing water, nor allowing pothole formation.
  • Large void capacity to act as a 'granular reservoir', for storm water management.
  • May form part of Sustainable Urban Drainage Systems (SuDS).
  • Aligns with 'sponge cities' urban planning principles.
  • Can be used to alleviate flooding.
  • Can help mitigate urban 'heat island effect'.
  • Ability to be used in rainwater capture systems (e.g. for irrigation).
  • May help satisfy 'net biodiversity gain' requirements (can produce a better-quality natural habitat than previous).
  • Drainage 'problem solver' for areas with little, or no, gradient.
    • When used for tree pits, it enables irrigation and free air-carbon dioxide exchange essential for roots, preventing them from migrating upwards, satisfying National Planning Policy Framework (NPPF) requirements.
    • Utilises igneous rock, ensuring stability and durability.
    • EuroClass A1 reaction to fire rating.

    Contact Us
    Product Data Sheet Show all documents

    Usage

    • Bedding of paving units for vehicular traffic.
    • Bedding of slabs, pavers and setts for all pedestrianised zones.
    • Key component of Concrete Block Permeable Paving (CBPP).
    • Prevents surface water forming.
    • Can form part of Sustainable Urban Drainage Systems (SuDS).
    • Helps alleviate flooding by providing a 'granular reservoir' for water.
    • Inner city paving areas.
    • Footpaths, courtyards, patios and carriageways.
    • Tree pits, proprietary planters and 'Stockholm Systems'.
    • Can be used as part of three main permeable pavement systems:
      • Full infiltration ('zero discharge').
      • Partial infiltration.
      • Full attentuation.


    Advantages

    • High water permeability (free-draining).
    • Fully compliant with BS 7533 (Type 35 bedding mortar).
    • Available in splashproof, 'contractor-friendly' 25 kg bags, ideal for site use.
    • Pre-batched for simplicity: one-component only requiring a measured addtion of water.
    • Wide range of application thicknesses achievable (30 to 75 mm).
    • Key component of Concrete Block Permeable Paving (CBPP).
    • Prevents surface water developing, eliminating surface ice, thereby reducing the likelihood of slippages.
    • No surface ponding means no rain splashing from standing water, nor allowing pothole formation.
    • Large void capacity to act as a 'granular reservoir', for storm water management.
    • May form part of Sustainable Urban Drainage Systems (SuDS).
    • Aligns with 'sponge cities' urban planning principles.
    • Can be used to alleviate flooding.
    • Can help mitigate urban 'heat island effect'.
    • Ability to be used in rainwater capture systems (e.g. for irrigation).
    • May help satisfy 'net biodiversity gain' requirements (can produce a better-quality natural habitat than previous).
    • Drainage 'problem solver' for areas with little, or no, gradient.
      • When used for tree pits, it enables irrigation and free air-carbon dioxide exchange essential for roots, preventing them from migrating upwards, satisfying National Planning Policy Framework (NPPF) requirements.
      • Utilises igneous rock, ensuring stability and durability.
      • EuroClass A1 reaction to fire rating.


      Packaging

      25 kg splashproof bags, and 1,000 kg bulk bags.

      Colour

      Grey granular powder-coated aggregate.

      Product Details

      Product Information

      Chemical Base

      Cementitious, polymer modified, with igneous aggregate and synergistic chemicals.

      Shelf Life

      6 months from date of manufacture when stored in the correct conditions.

      Storage Conditions

      Bagged Sika® FastFix®-231 Permeable Bedding Concrete will have a shelf-life of 6 months when kept in original, unopened and undamaged packaging in dry conditions at a temperature of +5°C to +35°C. Storage at higher temperatures or high humidity may reduce the shelf-life. Bulk bags should be used as soon as possible after delivery. Bags not to be used immediately should be stored on pallets and under cover.

      Density

      ~2.0 kg/m3 - Fresh mixed density when compacted.

      ~1.9 kg/m3 - Dry, cured Product when compacted.

      Maximum Grain Size

      Dmax: 3 mm
      System information

      System Structure

      Sika® FastFix®-231 Permeable Bedding Concrete is part of the Parex / Sika Streetscape System complying with the relevant parts of BS 7533 and comprising of:
      Bedding Mortar:
      Sika® FastFix®-231 Permeable Bedding Concrete
      Priming Scrub Coat:
      Parex Bond Plus Mortar
      Pointing / Jointing Mortar:
      Parex Granatech
      Parex Granatech 40 Fine

      NOTE: Sika® FastFix® All Weather can be used as a pointing / jointing mortar to offer increased permeability, but (as it does NOT comply with the requirements of BS 7533) should only be used for lightly foot-trafficked areas (e.g. patios, pavements and paths).

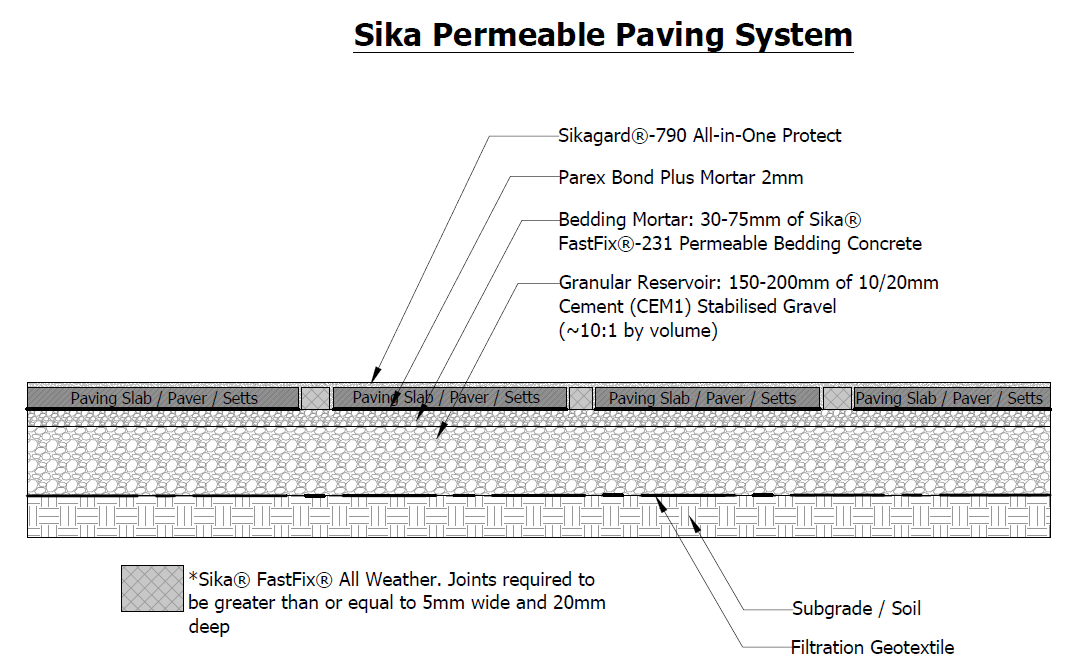

      The drawing below shows an example of the construction detail for a domestic patio area:

      Sika Permeable Paving System Diagram
      Technical Information

      Compressive Strength

      ≥35 MPa

      Modulus of Elasticity in Compression

      (18000 ± 3500) MPa

      Flexural Strength

      ≥4.5 MPa

      Shrinkage

      ≤0.09%

      Tensile adhesion strength

      ≥2.0 MPa

      Water permeability

      Horizontal = 7.7 x 10-4 m/s

      Vertical = 1.5 x 10-3 m/s

      NOTE: Product lightly tamped for compaction.

      Application

      Application Information

      Mixing Ratio

      1.7 litres of clean, potable water per 25 kg bag or 6.8%.

      Layer Thickness

      30 mm minimum / 75 mm maximum

      Ambient Air Temperature

      +5 °C minimum / +35 °C maximum

      Substrate Temperature

      +5 °C minimum / +35 °C maximum

      Pot Life

      ~30 minutes at 20 °C
      Consumption

      Yield

      ~13.4 litres per 25 kg bag.
      Application steps

      MIXING

      Ideally, mixing of Sika® FastFix®-231 Permeable Bedding Concrete requires a forced action mixer such as a Rojo or Creteangle (using a drill and paddle can be difficult due to the granularity of the Product).

      Pour the recommended amount of clean water into a suitable, clean mixing vessel. Gradually add the powder and mix thoroughly until a homogeneous Product is achieved. Once mixed, apply within the pot life. Additional water should NOT be added to 'revive' the Product past its pot life.

      Small quantities of Sika® FastFix®-231 Permeable Bedding Concrete can be mixed using a suitable drill and paddle, however the powder mix must be added slowly to prevent inconsistent mixing. Ensure the paddle mixes from the bottom up, confirming before laying the Product that all powder has been suitably mixed (i.e. scrape the insides of the mixing vessel and remix if necessary).

      APPLICATION

      Apply the mixed Sika® FastFix®-231 Permeable Bedding Concrete to the primed substrate (if applicable - installing onto an open-graded sub-base, such as Type 3 or Type 1X, may NOT be feasible) before the priming coat has dried. Lightly compact the Sika® FastFix®-231 Permeable Bedding Concrete to ensure adequate contact with the underlying primed surface. It is advisable to dip small paving units (e.g. Setts and Cubes) in water to clean them prior to priming. For larger paving units (e.g. slabs), clean off with fresh water. Prime the back of the paving units being used and place the units onto the wet Sika® FastFix®-231 Permeable Bedding Concrete and adjust the levels as required, using rubber-headed mallets (white rubber will NOT mark and stain the paving units).

      NOTE: A priming layer of 4 mm has been found to achieve adequate bond / tensile adhesion strength for all applications.

      CURING TREATMENT

      In temperate ambient conditions, no special curing is required. In severe drying conditions of high temperatures and high wind, the paved surface should be lightly sprayed with water to assist with temperature control of the paving surface and provide water for additional curing of the Sika® FastFix®-231 Permeable Bedding Concrete.

      CLEANING OF TOOLS

      Clean all tools and application equipment with water immediately after use. Hardened material can only be mechanically removed.
