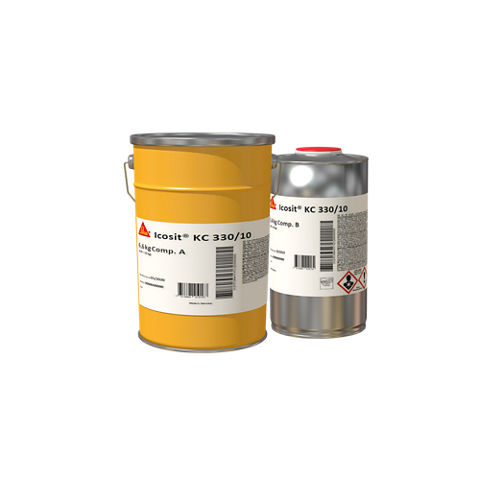

Sika® Icosit® KC 330/10
2-part polyurethane grout for heavy wheel load rail fixing (shore D 75)
Sika® Icosit® KC 330/10 is a flexible two-part polyurethane polymer resin grout. It is designed as a vibration absorbing, load-bearing, flexible grout for discrete or continuous trackwork baseplates where particularly high wheel loads are involved.
- Heavy axle load main line vehicles and loading cranes.
- Noise and vibration suppression.
- Reduces erosion of concrete under baseplate.
- More uniform load distribution into substructure.
- Watertight undersealing.
- Flexible and elastic (shore D 75).
- Damping and compressible.
- Good electrical insulation against stray currents.
- No stress peaks on anchor bolts.
- Good adhesion on various substrates.
- Levels out tolerances.
- Powerful, shear-resistant adhesive.
- Absorbs dynamic stresses and prolongs the life of concrete substructure.
- Long durability, less maintenance.
Usage
- As a noise and vibration reducing grout under discrete baseplates or continuous embedded rails for high wheel loads (e.g. for heavy cranes, container gantry cranes, working pits and other similar applications).
- As a flexible levelling layer for fixing heavy industrial machines to reduce vibration transmission.
Advantages
- Heavy axle load main line vehicles and loading cranes.
- Noise and vibration suppression.
- Reduces erosion of concrete under baseplate.
- More uniform load distribution into substructure.
- Watertight undersealing.
- Flexible and elastic (shore D 75).
- Damping and compressible.
- Good electrical insulation against stray currents.
- No stress peaks on anchor bolts.
- Good adhesion on various substrates.
- Levels out tolerances.
- Powerful, shear-resistant adhesive.
- Absorbs dynamic stresses and prolongs the life of concrete substructure.
- Long durability, less maintenance.
Packaging
|
Colour
Black
Product Details
Chemical Base
2-part polyurethane grout
Shelf Life
12 months from date of production
Storage Conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +10 °C and +25 °C. Always refer to packaging.
Density
| Part A | ~1,1 kg/l |
| Part B | ~1,2 kg/l |
| Parts A + B | ~1,1 kg/l |
System Structure
- Sika® Icosit® KC 330/10
- Sikadur®-32+: For 'green' and wet concrete
- Icosit® KC 330 Primer
Shore D Hardness
| 75 ± 5 (after 28 days) | (ISO 868) |
Shore hardness assists with material identification and assessing the curing progress on site.
Compressive stiffness
Load-Deflection Diagram
Static stiffness determined according to DIN 45673-1.
Test specimen dimensions: 360 × 160 × 25 mm
(pure material value measured without rail)
Preload: 1,000 N
Testing speed: 2 kN/s
Maximum load: 50 kN
Bedding figure kstat = ~218 [(kN/mm)/m] (±10 %)*, determined as per the secant method between 17 and 68 kN.
*Deviation of the bedding figure and the curve are ±10%.
Tensile Strength
| ~25 N/mm2 | (ISO 527) |
Service Temperature
-40 °C minimum / +80 °C maximum
Short term maximum +150 °C
Chemical Resistance
Long-term resistant against:
- Water
- Most detergents
- Sea water
Temporary resistant against:
- Mineral oils, diesel fuel
Short-term or no resistance against:
- Organic solvents (ester, ketone, aromatase) and alcohol
- Concentrated acids and lyes
Contact Sika® Technical Services for specific information.
Application
Mixing Ratio
Part A : Part B = 100 : 52 (parts by weight)
Layer Thickness
Minimum 15 mm
Maximum 60 mm
Product Temperature
Condition product parts before application preferably at ~+15 °C to assist with flow and curing speed
Ambient Air Temperature
+5 °C minimum / +35 °C maximum
Relative Air Humidity
70 % maximum
Substrate Temperature
+5 °C minimum / +35 °C maximum
Substrate Moisture Content
Dry
Pot Life
~8 minutes at +20 °C (+68 °F)
After this time, the mixture becomes unusable.
Higher temperatures will shorten pot life.
Curing Time
| Tack-free | ~2 hours at +20 °C |
| Trafficable | ~12 hours at +20 °C |
Curing Rate
| Shore D Hardness Values at Different Curing Temperatures | |||
| Curing Time | 5 °C | 23 °C | 35 °C |
| 1 Hour | - | ~50 | ~55 |
| 2 Hours | ~35 | ~55 | ~60 |
| 3 Hours | ~45 | ~60 | ~65 |
| 4 Hours | - | ~65 | ~65 |
| 5 Hours | ~55 | ~65 | ~70 |
| 6 Hours | ~55 | ~70 | ~70 |
| 7 Hours | ~60 | - | - |
| 1 Day | ~70 | ~75 | ~75 |
| 4 Days | ~75 | ~75 | ~75 |
| 7 Days | ~75 | ~75 | ~75 |
| 14 Days | ~75 | ~75 | ~75 |
Waiting Time / Overcoating
On primer or coating at +20 °C
| Minimum | Maximum | |
| Icosit® KC 330 Primer | 1 hour | 3 days |
| Sikadur®-32+ | 24 hours | 7 days |
Consumption
~1,1 kg per litre of volume to be sealed
SUBSTRATE QUALITY
- Substrate must be sound, free from oil, grease, loose and friable particles.
- Apply Sika® Icosit® KC 330/10 only on dry contact surfaces.
SUBSTRATE PREPARATION
- To improve adhesion, apply Icosit® KC 330 Primer as a primer on absorbent substrates (concrete).
Note: Refer to the individual Product Data Sheets for more information.
MIXING
Sika® Icosit® KC 330/10 is supplied in pre-weighed composite units consisting of Parts A + B. Part A must be stirred thoroughly before being mixed with part B.
The following mixing instructions must be carried out:
- Use an electric or pneumatic mixer with basket type stirrer or helical stirrer, diameter 120–140 mm, speed ~600–800 rpm.
- Mixing time ~60 to 80 seconds.
- Ensure material is mixed from the container walls and the base by the stirrer during mixing.
CLEANING OF TOOLS
Mixing and application tools must be cleaned at regular intervals and immediately after use with Sika® Thinner C. Hardened material can only be removed mechanically.
