Sika® Injection-307
Sika® Injection-307 is a very low viscous, elastic polyacrylic injection resin with a versatile and adjustable reaction time.
- Providing passivising environment for embedded steel reinforcement
- Adjustable curing time between 5 and 50 minutes
- Permanently elastic, can absorb limited movements
- Capable of reversibly absorbing (swelling) and releasing (shrinking) moisture
- Solvent free acrylic resin
- Very low viscosity comparable to water
- Cured Sika® Injection-307 is insoluble in water and hydrocarbons and resistant to alkalis.
Usage
- Sika® Injection-307 is used for crack and joint injection
- Sika® Injection-307 is used for the injection of SikaFuko® injection hoses to seal construction joints
- Sika® Injection-307 is used to seal water-bearing cracks and voids
- Sika® Injection-307 is used for making new sealing walls (curtains) in damp or water saturated ground conditions, situated in close proximity to the building component or within the building structure
- Sika® Injection-307 is used as a post-construction, external injection sealing system for construction and limited movement expansion or drainage pipe joints, that are, or will be, covered with damp or water saturated soil
- Sika® Injection-307 can also be used for the repair by injection of damaged waterproofing membranes (single and double layer system)
Advantages
- Providing passivising environment for embedded steel reinforcement
- Adjustable curing time between 5 and 50 minutes
- Permanently elastic, can absorb limited movements
- Capable of reversibly absorbing (swelling) and releasing (shrinking) moisture
- Solvent free acrylic resin
- Very low viscosity comparable to water
- Cured Sika® Injection-307 is insoluble in water and hydrocarbons and resistant to alkalis.
Packaging

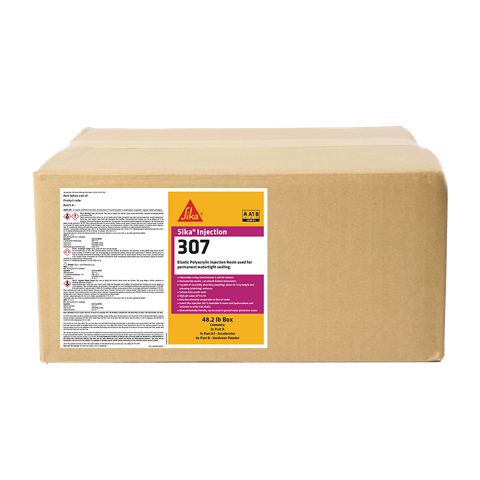

Sika® Injection-307 SET "Ready to use" contains:
Component A (Resin) | 2 × 9,6 kg |
Accelerator Component A1 | 1 × 1,05 kg |
Component B | 4 × 0,4 kg |
Components available separately, Volume packaging:
Component A (Resin) | 1 × 19,2 kg |
Accelerator Component A1 | 1 × 5,25 kg |
Component B | 36 × 0,4 kg |
Colour
Component A (Resin) | blue – transparent |
Accelerator Component A1 | yellow – transparent |
Component B | white |
Product Details
APPROVALS / STANDARDS
- Concrete injection for swelling fitted filling of cracks, (S) according to EN 1504-5:2004, Declaration of Performance 70573661, certified by notified factory production control certification body 0921, and provided with the CE marking
- Watertightness test report 1201/011/16a of 7 bar according to EN14068 - tested by MPA Braunschweig
- Corrosion test report M2208 in Steel - according to EN480-14 - tested by RWTH Aachen
- Function test report use of Sika® Injection-307 in combination with SikaFuko VT-1 PB-2016-204 - tested by Wissbau Essen
- Compatibility tests on PVC/TPO Membranes 1200/554/17 - according to EN12637-3 - tested by MPA Braunschweig
Chemical Base
3-part polyacrylic resin
Shelf Life
12 months shelf life from date of production if stored properly in undamaged, unopened, original sealed packaging.
Storage Conditions
Dry storage at temperatures from +5 °C up to +30 °C. Protect from direct sunlight and humidity.
Density
Component A (Resin) | ~1,073 g/cm3 |
Accelerator Component A1 | ~1,052 g/cm3 |
Component B | ~2,100 g/cm3 |
Viscosity
3,8 mPa∙s (mixture, at 20 °C) | (EN ISO 3219) |
Application
Mixing Ratio
ml Accelerator | Ambient Temperature | ||||
Reaction time | 5 °C (41 °F) | 10 °C (50 °F) | 20 °C (68 °F) | 30 °C | 40 °C (104 °F) |
5 min | - | 1000* | 750* | 725* | 700* |
10 min | 1000* | 875* | 500 | 490 | 480 |
20 min | 620* | 570* | 375 | 340 | 250 |
30 min | 545* | 500 | 310 | 250 | 215 |
40 min | 510* | 450 | 270 | 225 | 200 |
50 min | 475 | 440 | 260 | 210 | 170 |
Quantity of Accelerator per 9.6 kg component A, to yield 20 litres mixed resin. The total Accelerator solution must always be 1000 ml – see example below.
* reaction at cold temperatures – more accelerator than included in the set is required.
Note for processing in one component pumps
Workability time (pot life) = Reaction time (see metering chart) – 10 minutes
Note:
The given data are laboratory parameters and may deviate depending on the object and conditions on site. Reaction time measured in 100ml specimen.
Mixing ratio depends on water temperature and local site conditions. If reaction times and local conditions require less accelerator than those stated above, the product performance will not be affected.
A trial sample should be completed prior to injection to ensure reaction times meet the requirements.
Example
Ambient temperature: 20 °C (68 °F)
Required reaction time: 30 min.
Accelerator = 310 ml
Water = 690 ml
Total volume = 1000 ml
Ambient Air Temperature
+5 °C min. / +40 °C max.
Substrate Temperature
+5 °C min. / +40 °C max.
Gel time
5–50 minutes
Yield
~ 40 litres per Sika® Injection-307 SET
MIXING
1. Prepare Hardener SolutionPour 10 litres of water in a clean container. Dissolve the content of 2 bags (total 800 g) of Component B in the water. Stir the hardener solution thoroughly until Component B is completely dissolved.
2. Prepare Accelerator Solution
Determine the required quantity of accelerator from the chart provided under mixing ratio, based on ambient processing temperature and required reaction time. Dilute the selected quantity of accelerator with water, to a total quantity of 1 litre accelerator solution.
3. Mix Accelerator Solution with Resin Component A
Pour the 1 litre of accelerator solution into one 9.6 kg canister of Component A and shake/mix thoroughly.
4. Mix Resin with Hardener
Depending on the type of injection pump used activate the injection resin using one of the methods below:
- One component pump: Pour partial amount of the pre-mixed components in a ratio of 1:1 by volume into a clean mixing container. Mix thoroughly using an electric mixer and fill into the storage container of the pump.
- Two component pump: Fill partial amount of the pre-mixed components into the storage container of the pump. Set the pump to work at a ratio of 1:1 by volume.
CLEANING OF TOOLS
Clean all tools and application equipment thoroughly with clean water immediately after use.
