Parex Highway CA45

Parex Highway CA45

Highway CA45 is a pre-mixed, 1-part, cementitious, non-shrink, rapid setting bedding and repair mortar

Parex Highway CA45 is a pre-mixed, one-part, cementitious, non-shrink bedding and repair mortar, suitable for the support of road ironwork and highway furniture. The mixed mortar, when placed, will harden in approximately 10 minutes. Compressive strength will reach ~20 N/mm² within only 45 minutes, allowing early opening of roads to vehicular traffic.
The self-contained product only needs to be mixed with water on site, and the rapid setting assists the re-bedding of manhole frames and the setting of new frame systems. The product is 'chloride-free' and can be safely used with cast iron and steel units.
The mortar can be placed in sections of 15 mm to 75 mm in thickness. Greater thicknesses can be built up in layers. Alternatively thicker beds may be formed by the addition of up to 30 % of the Parex Highway CA45 weight of clean dry pea shingle. No additional mixing water is required. After placement no special curing is required in moderate ambient conditions.

  • Easy to use - just add water and mix.
  • Supplied in convenient 25 kg bags.
  • Application range: 15 to 75 mm per layer.
  • Non-shrink.
  • Consistency: stiff workable mortar.
  • High bond strength.
  • Does not require a primer.
  • Very rapid setting.
  • Ready to receive traffic after only 45 minutes.
  • Compressive strength ~55 N/mm2 at 28 days.
  • Very rapid strength gain, even at low temperatures.
  • Resistant to freeze / thaw action.
  • Proven durability and performance.
Contact Us
Product Data Sheet Show all documents

Usage

  • Re-bedding of raised manhole frames.
  • Bedding of frames in new roads.
  • Support of road furniture.
  • Rapid placement of paving (i.e. pavers, slabs, blocks, granite setts, etc.).
  • Speedy installation of kerbs.
  • Expeditious support, and fixing, of street furniture.
  • Emergency repairs.


Advantages

  • Easy to use - just add water and mix.
  • Supplied in convenient 25 kg bags.
  • Application range: 15 to 75 mm per layer.
  • Non-shrink.
  • Consistency: stiff workable mortar.
  • High bond strength.
  • Does not require a primer.
  • Very rapid setting.
  • Ready to receive traffic after only 45 minutes.
  • Compressive strength ~55 N/mm2 at 28 days.
  • Very rapid strength gain, even at low temperatures.
  • Resistant to freeze / thaw action.
  • Proven durability and performance.

Packaging

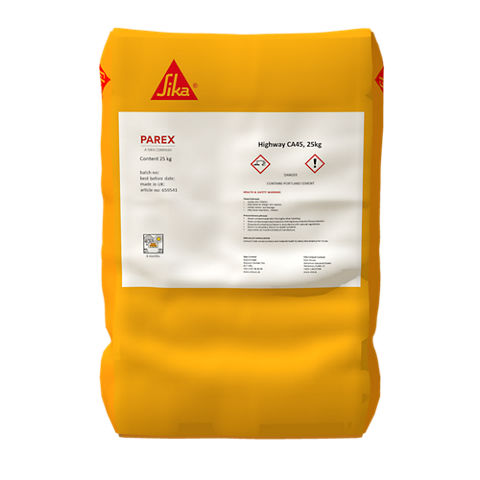

25 kg bags

Product Details

Sustainability / Certifications / Approvals

CERTIFICATES AND TEST REPORTS

Parex Highway CA45 has been tested in accordance with the appropriate parts of BS EN 12390.

The product complied with the requirements of the Design Manual for Roads and Bridges Volume 7 Pavement Design and Maintenance Section 2 Pavement Design and Construction Part 4 HD 27/15 - Pavement Construction Methods (superseded by Design Manual for Roads and Bridges CD 226 - Design for new pavement construction). Mortars for bedding ironwork, such as manhole cover frames during repairs, may be trafficked when the strength is expected to be >20 N/mm². For rapid construction, this strength should be achieved within 2 hours. Parex Highway CA45 will achieve the required strength of 20 N/mm² after only 45 minutes at a temperature of +20 °C.


Product Information

Composition

Cement based

Shelf life

6 months

Storage conditions

Store in unopened packaging at a temperature of +5 °C to +35 °C.

Storage at higher temperatures and / or humidity may reduce the shelf life.

Maximum grain size

Dmax 2.0mm

Density

~2250 kg/m³
Technical Information

Compressive strength

Age

45 Minutes

24 Hours

28 Days

Compressive Strength

~20 N/mm2

~35 N/mm2

~55 N/mm2

Mechanical strength profile (+20 °C / 90 % RH).

Reaction to fire

Non-flammable (EuroClass A1)

Application

Application Information

Mixing ratio

2.5 to 3.0 litres of water for 25 kg powder

Pot Life

~10 minutes at +20 °C
Consumption

Yield

Each 25 kg bag of Parex Highway CA45 will enable a manhole frame 600 x 600 mm to be raised approximately 25 mm.
The volume yield of each 25 kg bag of Parex Highway CA45 is approximately 12.75 litres.
Application steps

SUBSTRATE PREPARATION

Laitance and all loose material including dust, oil and grease should be removed in order to produce a sound substrate. The work area should be pre-wetted (ideally saturated surface dry), taking care to remove any standing water before placing the mortar.

MIXING

To achieve the most consistent mortar mix, mechanical mixing is recommended. Thorough hand mixing is suitable, but care should be taken to ensure that the mix is fully wetted out without the use of excess water.

Mechanical mixing may be carried out in a suitable vessel using a slow speed high torque drill and paddle. Hand mixing may be carried out using a clean spot board or wheelbarrow.

25 kg of Parex Highway CA45 requires 2.5 to 3.0 litres of water to give a stiff mortar. Excess water should not be added.

Once setting has commenced, further mixing should not be used to rework the mix.

The mortar should be placed within approximately 10 minutes of mixing. The working time may be extended in cold ambient conditions, and may be slightly shortened in hot ambient conditions.

APPLICATION

Required mixing water is 2.5 to 3.0 litres. Do not add excessive water for mixing.

Variations in water content for particular applications may alter mortar consistency and compressive strength achieved.

Set suitable levelling shims onto the working surface ready to receive the frame or unit.

Place the mixed mortar onto the prepared surface and lower the frame or unit onto the mortar and knock down onto the pre-set shims to line and level.

The bed thickness applied in a single application should be between 15 mm to 75 mm.

Thicker support beds can be achieved by applying further material as soon as the lower bed has hardened sufficiently not to distort under the additional work.
The placed mortar will have hardened sufficiently to carry out further work, such as haunching, within some 20 minutes, depending on the ambient conditions.

CURING TREATMENT

No special curing is required at temperatures between +5 and +35 °C.

For placing at temperatures outside this range, contact Sika® Technical Services.

CLEANING OF EQUIPMENT

Clean all tools and application equipment with water immediately after use. Hardened material can only be mechanically removed.
