Parex E20 Epoxy Grout
Parex E20 Epoxy Groutis part of the Parex E Epoxy grout range cover a wide range apllications and void thicknesses. Parex E20 Epoxy Grout is a 3 component, high performance, precision, epoxy grouting system. Suitable for placing at temperatures between +5°C and +45°C.
- High early strength and fast curing
- Suitable for application at lower temperatures (in conjunction with Parex E33 winter additive)
- Ready to mix, pre-batched units
- Non-shrink
- Good resistance to most chemicals
- Stable against seawater & petroleum products.
- Resists freeze thaw cycles
- Stress and impact resistant
- Exceptional mechanical properties
Usage
- Machinery base plates
- Crane rail tracks
- Bridge Bearings
- Compressors and pumps
- Reciprocating machinery
- High impact loads
- Space filling and stress transfer
Advantages
- High early strength and fast curing
- Suitable for application at lower temperatures (in conjunction with Parex E33 winter additive)
- Ready to mix, pre-batched units
- Non-shrink
- Good resistance to most chemicals
- Stable against seawater & petroleum products.
- Resists freeze thaw cycles
- Stress and impact resistant
- Exceptional mechanical properties
Packaging

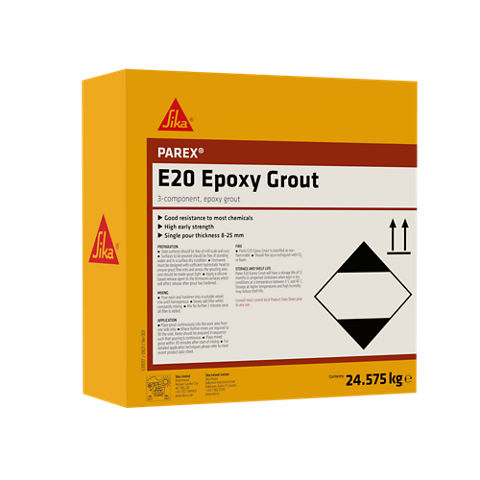

Pre-batched unit | 24.57 kg (A + B + C) |
Product Details
Composition
Epoxy resin
Shelf life
24 months
Storage conditions
Stored properly in original, unopened, sealed and undamaged packaging in dry conditions at temperatures between +5 °C and +30 °C. Protect from direct sunlight.
Density
~1950 kg/m³
Compressive strength
1 day | 63 N/mm² |
3 days | 81 N/mm² |
7 days | 85 N/mm² |
Typical grout values @ 20°C
Modulus of elasticity in compression
~11.9 kN/mm² @ 7 days
Tensile strength
~21 N/mm² @ 7 days
Ring test
Result from 50mm concentric ring test = 200mm.
Flow result of 50mm represents nil flow.
Application
Layer thickness
Minimum grout depth: 8mm
Maximum grout depth: 25mm
Material temperature
+5°C min. / +35°C max.
Ambient air temperature
+5°C min. / +45°C max.
Substrate temperature
+5°C min. / +35°C max.
Pot Life
~ 30 mins after mixing @ 20°C
Yield
Each pack will yield approximately 12.5 litres of mixed material.
SUBSTRATE QUALITY
Mortar and concrete must be older than 28 days (dependent on minimum strength requirements).
Verify the substrate strength (concrete, natural stone etc.).
The substrate surface (all types) must be clean, dry and free from contaminants such as dirt, oil, grease, existing surface treatments and coatings etc. Steel substrates must be de-rusted to a standard equivalent to Sa 2.5.
The substrate must be sound and all loose particles must be removed.
Substrate must be dry or mat damp and free from any standing water, ice etc.
SUBSTRATE PREPARATION
Remove laitance and all loose material including dust, oil and grease to achieve a sound substrate. Steel surfaces should be free of mill scale and rust. Surfaces to be grouted should be free of standing water and in a surface dry condition. Formwork must be designed with sufficient hydrostatic head to ensure grout flow into and across the grouting area and should be made grout tight. Apply a silicone based release agent to the formwork surfaces which will effect release after grout has hardened. Alternatively use thick polythene sheet firmly fixed to the formwork.
MIXING
Mixing of Parex E20 Epoxy Grout should be carried out with full packs only. Pour all of the resin and hardener into a clean mixing vessel. Mix with a slow speed drill (200-300rpm) and Mortar Stirrer (MR4) until homogeneous. Slowly add the filler to the mixed resin and hardener. When all the filler has been added, mix for a further two minutes until an even colour is achieved.
Try and ensure that air entrainment is kept to a minimum by keeping the mixing head below the surface level of the grout at all times. Larger volumes may be mixed using a forced action mixer such as the Creteangle.
APPLICATION
Allow mixed grout to stand for 5 minutes prior to placing to allow entrained air from mixing to be released. Place grout continuously into the work area from one side only. Where further mixes are required to fill the void, these should be prepared in sequence such that pouring is continuous. Place mixed grout within 30 minutes after start of mixing. Place in nominally parallel gap widths between 8mm and 25mm. Tapered sections may be placed down to a featheredge. For thicker sections use E33, E70 or E140 variants. Do not disturb the grouted section until the grout has hardened.
CURING TREATMENT
No special curing is required. Material should be protected for the initial 24 hours from rain and adverse weather conditions
CLEANING OF EQUIPMENT
Sweep excess grout into appropriate containers for disposal before it has hardened.
Dispose of in accordance with applicable local regulations.
Uncured material can be removed with Sika Thinner C. Cured material can only be removed mechanically.
