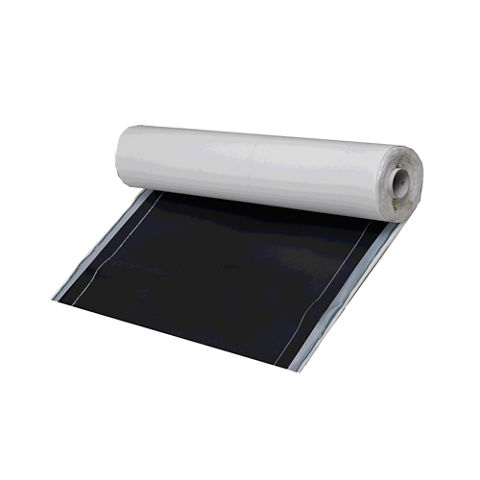

Sika® BituSeal S-115

Post applied self-adhesive bituminous sheet waterproofing membrane

Sika® BituSeal S-115 is a post applied self-adhesive waterproofing sheet membrane. It is based on a top layer of polyethylene film bonded to a layer of bitumen/polymer adhesive carried on a release paper, with a selvedge strip.

  • High tensile strength and elongation
  • Resistant against natural aggressive mediums in ground water and soil
  • High water vapour permeability
  • Dimensional stable
  • High flexibility in cold
  • No welding of membrane overlaps required
  • Quick and easy installation by self-adhesion
  • Good elasticity and adhesion
  • Tested for Radon permeability (membrane 1.1 x 10-11 m2/s, joints 8.3 x 10-12 m2/s in accordance with the K124/02/95 method) )
Contact Us
Product Data Sheet Show all documents

Usage

Sika® BituSeal S-115 is designed for use as an underlayer in fully self-adhesive multi-ply built-up systems.
Waterproofing and damp-proofing of foundations:
  • Exterior walls of basements against percolating water and damp soil retaining walls (multilayer build-up) (EN 13967)


Advantages

  • High tensile strength and elongation
  • Resistant against natural aggressive mediums in ground water and soil
  • High water vapour permeability
  • Dimensional stable
  • High flexibility in cold
  • No welding of membrane overlaps required
  • Quick and easy installation by self-adhesion
  • Good elasticity and adhesion
  • Tested for Radon permeability (membrane 1.1 x 10-11 m2/s, joints 8.3 x 10-12 m2/s in accordance with the K124/02/95 method) )

Packaging

Roll size: 1.05 m x 19.05 m (each individual roll is supplied packed in a cardboard box)

Roll weight: 33 kg
Thickness: 1.5 mm
Weight: ~1.7 kg/m2

Colour

Rolled sheet membrane, reinforced with polyester non woven fabric.

Surface: protective silicone-treated release liner, Reverse: protective silicone treated release liner

Colour: black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Conforms to the requirements of  EN 13967: 2013 Product Type T

BBA Approved Certificate No. 16/5291, 22.02.2016
Product Information

Shelf Life

12 months from date of production

Storage Conditions

Store in dry conditions between +5°C to +35°C.Rolls must be stored in their original package, in vertical position and under cool and dry conditions. They must be protected from direct sunlight, rain, snow and ice.

Product Declaration

EN 13967: 2013 Product Type T

Length

19.05 m (Tolerance -0% to +5%)

(EN 1848-2)

Width

1.05 m (tolerance -5% to +5%)

(EN 1848-2)

Thickness

1.50 mm (tolerance -5% to +10%)

(EN 1849-2)

Mass per unit area

1650 g/m² (tolerance -10% to +10%)

(EN 1849-2)
Technical Information

Resistance to Impact

≥ 500 mm

(EN 12691)

Resistance to Static Load

≥ 20 kg

(EN 12730)

Tensile Strength

Max Tensile Stress CD

≥ 2.5 N/mm²

Max Tensile Stress MD

≥ 2.5 N/mm²

Elongation at Break MD

≥ 130%
Elongation at Break CD≥ 130%

Joint Strength

≥ 30 N

Resistance to Tearing (nail shank)

(Nail Shank) CD

≥ 100 N

(Nail Shank) MD

≥ 100 N

Water Tightness

Watertightness to liquid water

Pass

Durability of Water Tightness against Ageing

Pass

(EN 1847 Method A 60 KPa)

Durability of Water Tightness against Chemicals

Pass

(EN 1847 Method A 60 KPa)

Reaction to Fire

NPD

(EN 13501)
