Sikaplan®-1652 Bonded VOC Gas Barrier

Sikaplan®-1652 Bonded VOC Gas Barrier

A pre-applied, multi-layer, polyethylene membrane for below ground waterproofing and gas protection

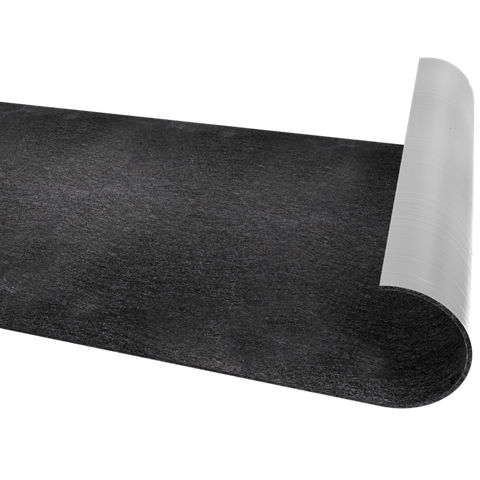

Sikaplan®-1652 Bonded VOC Gas Barrier is a pre-applied fully bonded waterproofing membrane incorporating Sikaplan®-1651 Loose VOC Gas Barrier membrane and a heavy duty virgin polypropylene geotextile.  The geotextile is laminated to the membrane to provide a dual function; protecting the membrane from damage and providing an integrated 'bond' to poured concrete, ensuring a fully bonded waterproofing barrier which has exceptionally high resistance to ground gas and VOCs.  Sikaplan®-1652 Bonded VOC Gas Barrier is used for the Gas/Waterproofing/Tanking of underground structures where harmful ground gases are anticipated.

  • Quick and easy installation
  • A fully welded system
  • High resistance to ground gases
  • Exceptional chemical resistance
  • Manufactured to meet the most up-to-date British Standards and guidance
  • Long-term durability (performance guaranteed for the lifetime of the building)
Sikaplan®-1652 Bonded VOC Gas Barrier
Contact Us
Product Data Sheet Show all documents

Usage

  • Suitable for use as a ground gas hydrocarbon protection and waterproofing at ground level or below ground installations.


Advantages

  • Quick and easy installation
  • A fully welded system
  • High resistance to ground gases
  • Exceptional chemical resistance
  • Manufactured to meet the most up-to-date British Standards and guidance
  • Long-term durability (performance guaranteed for the lifetime of the building)

Packaging

1.9m x 25m roll

Weld Strip - 100mm x 10m roll

Edge Strip - 1m x 25m roll

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Conforms to the requirements of EN13967:2012
  • NHBC Standards Compliant
  • BS 8485:2015 + A1:2019 Compliant (Methane and Carbon Dioxide Barrier)
  • CIRIA C748 Compliant (VOC barrier)
  • BS 8102:2022 Compliant (Type A Waterproofing Barrier)
  • BBA Certified - Certificate No: 19/5681
Product Information

Shelf Life

Indefinite

Storage Conditions

Must be stored horizontally, indoors in original packaging.

Overall Thickness

Thickness

2.0 mm

Width

1.9 m

Length

25 m

Weight650 G/M2


Technical Information

Resistance to Impact

> 1650 mm

(EN 12691-B)

Resistance to Static Load

> 20 kg

(EN 12730-B)

Resistance to Static Puncture

> 2.5 kN

(EN 12236)

Tensile Strength

MD

> 550 N/50 mm

CMD

> 400 N/50mm

Elongation

Tensile Elongation (MD)

> 550%

Tensile Elongation (CMD)

> 550%

Adhesion in peel

Concrete Peel Adhesion

> 3.0 kN/m

Resistance to Tearing (nail shank)

> 300 N

(EN 12310-1)

Water Tightness

(60 kPa) - PASS

(EN 1928)

(196 kPa - 20 m Water Head) (Basement Application) - PASS(EN 1928)

Chemical Resistance

PASS

(EN 1847 / EN 1928)


Vapour Permeability 100% Concentration


Transmission rate of Benzene

<3.6 mg/m2/day

Transmission rate of Toluene

<13.8 mg/m2/day

Transmission rate of Ethyl Benzene

<2.7 mg/m2/day

Transmission rate of Xylene (M,P,O)<7.7 mg/m2/day
Transmission rate of Hexane<0.6 mg/m2/day
Transmission rate of Vinyl Chloride<0.05 mg/m2/day
Transmission rate of Trichloroethene (TCE)<54.7 mg/m2/day
Transmission rate of Terachloroethene (PCE)<26.2 mg/m2/day
Transmission rate of Naphthalene<0.0006 mg/m2/day
Transmission rate of CIS-1,2-Dichloroethene<1.1 mg/m2/day



Gas Permeability


Methane Permeability0.13 ml/m2/day/atm
Methane Permeability (jointed)1.00 ml/m2/day/atm
Carbon Dioxide Permeability3.01 ml/m2/day/atm
Vinyl Chloride Gas Permeability0.04 ml/m2/day/atm
Radon Permeability1.0 x 10-12 M2/S




FOR FULL DURABILITY AND CHEMICAL RESISTANCE INFORMATION, PLEASE CONTACT SIKA WATERPROOFING TECHNICAL


Reaction to Fire

E Class

(EN 13501-1)

Application

Application steps

APPLICATION INSTRUCTIONS

INSTALLATION

Sikaplan®-1652 Bonded VOC Gas Barrier should be installed in accordance with the product installation guidelines, and in accordance with BS 8485:2015 + A1:2019 and Ciria C748.




JOINTING AND SEALING

Sikaplan®-1652 Bonded VOC Gas Barrier must be heat welded on all laps, with welding carried out by competent personnel with suitable qualifications in accordance with best practice, and guidance contained within BS 8485:2015 + A1:2019. Sikaplan®-1652 Bonded VOC Gas Barrier should be overlapped by at least 50mm. Pre-formed corner pieces are available for sealing corners. A separate strip is available for detailing.
