2019
East Sussex
PROJECT DESCRIPTION

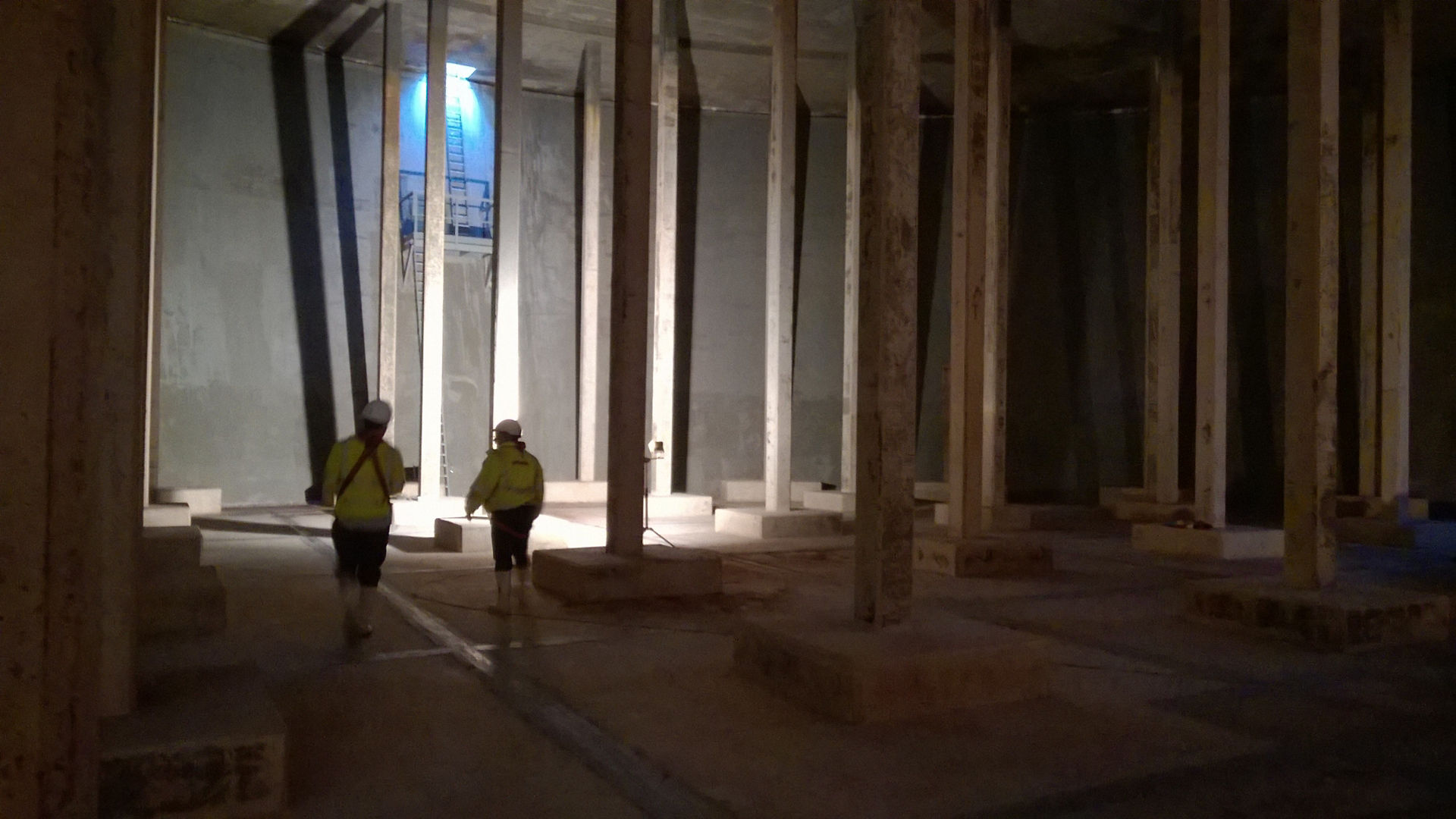

This service reservoir is located on the chalk hills above Eastbourneat well-known beauty spot Beachy Head. The undergroundreservoir required joint replacement and internal waterproofing toprevent moisture loss or ingress.
PROJECT REQUIREMENT
The contract required the removal of all existing contaminationback to sound concrete. A moisture tolerant adhesive and jointbandage were needed that could provide a fast return to servicetime while sealing the leaking joints. A flexible cementitiousmembrane to coat the concrete and accommodate any futuremovement within the structure completed the specification. Allmaterials had to be Regulation 31 approved for use in contact withpotable water.
PROJECT SOLUTIONS
The concrete surface was treated with high pressure water toremove all contaminants. Sikadur-Combiflex®-930 bandage wasapplied onto Sikadur- Combiflex®-933 moisture tolerant adhesiveto seal the vertical and horizontal joints. SikaTop®-588 Seal wasapplied to the concrete by brush in two coats of 1mm per coat. SikaTop®-588 Seal White was applied followed by a second coat of SikaTop®-588 Seal Grey..
PROJECTS FACTS AT A GLANCE
- Potable water reservoir servicing Eastbourne
- Preparation of the concrete surface
- Regulation 31 approved joint bandage and coating applied.
Project Participants
Owner: South East Water
Contractor: Browne
Market sector: Clean Water
Sika Products: SikaTop®-588 Seal, Sikadur-Combiflex®-930 and Sikadur- Combiflex®-933
