S-Drain PVC

Prefabricated PVC roof drain

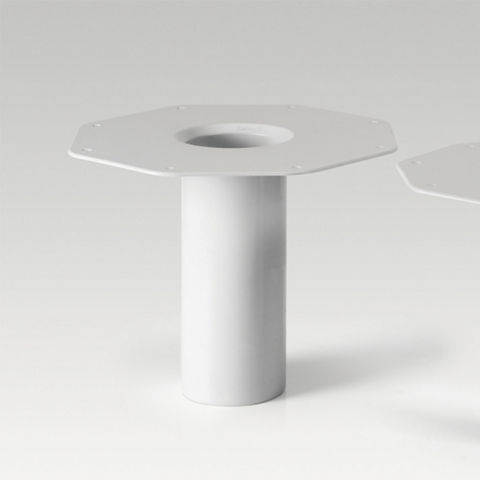

S-Drain PVC is a PVC prefabricated injection moulded rainwater outlet for flat roofs used with Sika roof sheet membranes which can be heat welded onto the drain.

  • Resistant to UV exposure
  • Membrane can be welded directly to the base plate
  • Ease of application
  • Heat weldable
  • Recyclable
Product Data Sheet Show all documents

Usage

  • Rainwater outlet for use with Sarnafil® and Sikaplan® sheet membranes.


Advantages

  • Resistant to UV exposure
  • Membrane can be welded directly to the base plate
  • Ease of application
  • Heat weldable
  • Recyclable

Packaging

Depending on the order quantity and product size, the products are packaged on pallets or in cartons.

Colour

SurfaceSmooth
Colour

Light grey (nearest RAL 7047)



Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Complies with DIN EN 1253 - Gullies for buildings
  • Roof outlet testing DIN EN 1253-3,Sarnafil G/S,TUV,Rheinland,Report No.57216040-50
Product Information

Chemical Base

Polyvinyl chloride (PVC)

Shelf Life

5 years from date of production

Storage Conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to packaging. Do not stack pallets of rolls or any other material on top during transport or storage.

Dimensions

Spigot

Flow rates

outside / length

Base plate

Depth of water

mmmmEN 1253*55 mm65 mm
40 × 450

250 × 250

squared

2,65 l/s2,95 l/s3,05 l/s
50 × 450

250 × 250

squared

3,10 l/s5,20 l/s5,30 l/s
56 × 300

300 × 300

octagonal

3,90 l/s6,65 l/s6,80 l/s
63 × 300

300 × 300

octagonal

3,90 l/s6,65 l/s6,80 l/s
75 × 300

300 × 300

octagonal

4,60 l/s9,50 l/s11,.25 l/s
90 × 300

330 × 330

octagonal

5,40 l/s9,50 l/s11,75 l/s
95 × 300

330 × 330

octagonal

5,40 l/s9,50 l/s11,75 l/s
110 × 300

330 × 330

octagonal

5,50 l/s9,75 l/s12,75 l/s
125 × 300

380 × 380

octagonal

9,25 l/s11,50 l/s14,75 l/s
140 × 300

380 × 380

octagonal

9,25 l/s11,50 l/s14,75 l/s
160 × 300

380 × 380

octagonal

10,00 l/s13,25 l/s16,90 l/s

* EN 1253: Measured with S-Leafguard (Art. No. 111185) Depth of water: Until Ø 110 mm: 35 mm, from Ø 125 mm: 45 mm

Thickness

4,0 mm
System information

System Structure

The following system accessory must be used:

  • S-Leafguard (Art. no. 111185)

Compatible products:

  • Sarnafil® G 410-types
  • Sarnafil® G 476-types
  • Sarnafil® S 327-types
  • Sikaplan® G / VG / VGWT / S / SG / SGmA
  • Sikaplan® SGK (with special connection strips)

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
