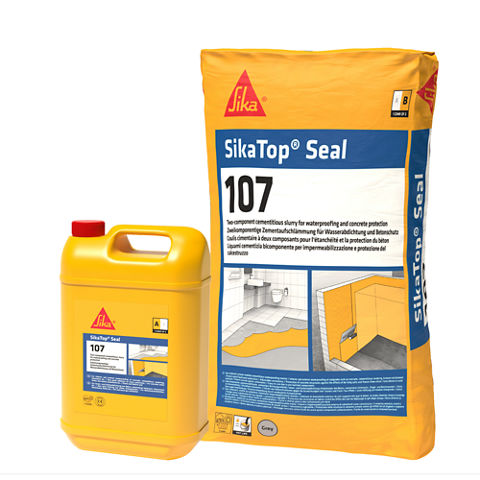

SikaTop® Seal-107 Standard
SikaTop® Seal-107 Standard is a two part polymer modified cementitious waterproof mortar slurry comprising of a liquid polymer and a cement based mix incorporating special admixtures.
- Easy to apply by brush or in thin trowel applications
- No water required
- Prebatched components
- Hand or spray applied
- Easy and fast mixing
- Very good adhesion
- Protects concrete against carbonation
- Protects against water penetration
- Non-corrosive to steel or iron
- Overpaintable
Usage
SikaTop® Seal-107 Standard is used for:- Interior and exterior waterproofing and damp-proofing of concrete, cementitious rendering, brickwork and blockwork
- Protection of concrete structures against the effects of de-icing salts and freeze-thaw attack
- Rigid waterproofing of basement walls in new construction and refurbishment
- Pore / blowhole filling
- Sealing fine “hairline” cracks in concrete structures (not subject to movement)
- Levelling mortar for concrete repair works
Advantages
- Easy to apply by brush or in thin trowel applications
- No water required
- Prebatched components
- Hand or spray applied
- Easy and fast mixing
- Very good adhesion
- Protects concrete against carbonation
- Protects against water penetration
- Non-corrosive to steel or iron
- Overpaintable
Packaging
25 kg units (20 kg bag and 5 kg pail)
Colour
Part A: white liquid Part B: grey or white powder
Mixed product: cement grey
Product Details
APPROVALS / STANDARDS
Conforms to the requirements of BS EN 1504-2:2004 Principles 2.2 & 8.2, Annex ZA2 Table ZA.2
Chemical Base
Part A: liquid polymer and additive
Part B: portland cement selected aggregate and admixtures
Shelf Life
9 months from date of production if stored properly in undamaged and unopened original sealed packaging
Storage Conditions
Store in dry and cool conditions. Liquid component must be protected from frost
Compressive Strength
3 days | ~ 20 N/mm2 |
28 days | ~ 35 N/mm2 |
Modulus of Elasticity in Compression
Static: ~ 8.4 kN/mm2
Flexural Strength
3 days | ~ 6 N/mm2 |
28 days | ~ 10 N/mm2 |
Tensile Strength
Cured in water: ~ 3.2 N/mm2 after 14 days exposure | (According to DIN 53455) |
Cured in air: ~ 4.5 N/mm2 after 14 days exposure |
Tensile adhesion strength
2.0 to 3.0 N/mm2 (failure in substrate)
Application
Fresh mortar density
~ 2.00 kg/l
Layer Thickness
0.75 mm min.
4.0 mm max.
Ambient Air Temperature
+8°C min. / +35°C max.
Substrate Temperature
+8°C min. / +35°C max.
Pot Life
~ 30 minutes at +20°C
Waiting Time / Overcoating
Waiting time between coats
+10°C | ~ 12 hours |
+20°C | ~ 6 hours |
+30°C | ~ 3 hours |
If waiting time period exceeds 24 hours, lightly blastclean the surface.
SikaTop® Seal-107 Standard can be overpainted using solvent based primers or coatings. SikaTop® Seal-107 Standard must cure for a minimum of 7 days before overcoating.
Consumption
Dependent on the substrate roughness, surface profile and thickness of the layer applied.
As a guide, ~ 2.0 kg/m2/mm (excluding allowances for loss wastage, surface profile and porosity, etc.).
1 unit of 25 kg yields ~ 12.5 l of mortar.
MIXING
Used as slurry: A : B = 1 : 4 (parts by weight)
Used as mortar: A : B 1 : 4.5 - 5.1 ( parts by weight)
Mixing Time: ~ 3 minutes
SikaTop® Seal-107 Standard must be mechanically mixed using a forced action mixer or in a clean drum using a drill and paddle (max. 500 rpm). A normal concrete free fall mixer is NOT suitable.
CURING TREATMENT
It is essential to cure SikaTop® Seal-107 Standard immediately after application for a minimum of 3 to 5 days to ensure full cement hydration and to minimise cracking. Use polythene sheeting or similar approved methods.
CLEANING OF TOOLS
Clean all tools and application equipment with clean water immediately after use. Hardened / cured material can only be removed mechanically.
