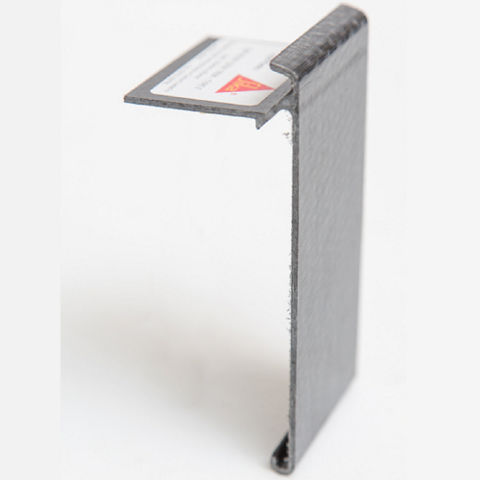

Decotrim®

Decotrim®

GRP Roof Edge and Termation Trims

A range of GRP (Glass reinforced plastic) roof edge trims used to terminate the Sika Liquid Plastics Liquid Applied Roof Membranes systems.

  • Will not corrode, rust or dent and are not affected by atmospheric pollution
  • Will retain colour/appearance
  • Once installed - maintenance free
  • Any RAL colour is available (subject to minimum order)
Contact Us
Product Data Sheet Show all documents

Usage

The Decotrim® range includes the following:-
  • Check trims
  • Drip trims
  • Termination bar
  • Counter flashing


Advantages

  • Will not corrode, rust or dent and are not affected by atmospheric pollution
  • Will retain colour/appearance
  • Once installed - maintenance free
  • Any RAL colour is available (subject to minimum order)

Packaging

DecoTrims A, B, C, D & E

Available in boxes of 10 x 3 metre lengths or individual items

DecoTrim F

Available in boxes of 5 x 3 metre lengths or individual items

Termination Bar & Counter Flashing Bar

10 x 3 metres lengths per pack - 3 packs per box or individual items

Product Details

Product Information

Shelf Life

N/A

Storage Conditions

Storage in dry conditions

Dimensions

Decotrim Type A

50mm/65mm (face depth/overall width) available in 3 metre lengths

Gauge: 2mm

Decotrim Type B

80mm/65mm (face depth/overall width) available in 3 metre lengths

Gauge 2mm

Decotrim Type C

100mm/65mm (face depth/overall width) available in 3 metre lengths

Gauge 2mm

Decotrim Type D

100mm/60mm (face depth/overall width) available in 3 metre lengths

Gauge 2mm

Decotrim Type E

150mm/65mm (face depth/overall width) available in 3 metre lengths

Gauge 2mm

Decotrim Type F

200mm/85mm (face depth/overall width) available in 3 metre lengths

Gauge 3mm

Termination Bar

62mm/10mm (face dpeth/overall width) 3 metre lengths/pack of ten

Gauge 2mm

Counter Flashing

75mm/18mm (face dpeth/overall width) 3 metre lengths/pack of ten

Gauge 2.6mm

Internal and external corners are available

Application

Application steps

APPLICATION

Choose the appropriate profile for site conditions, screw fixed using stainless steel screws.  Butt plates are to be inserted at all joints (with Decotrim® Type A, B, C, E and F) and preformed corner units are to be used where appropriate.

Decotrim® Type A, B, C and D
Trims must be fixed at a maximum 300mm staggered centres

Decotrim® Type E and F
Trims must be fixed at a maximum 150mm staggered centres.
The appropriate Sika Liquid Plastics mechanical fasteners must be used in these scenarios, and depends upon the substrate that is being fixed into:

Timber

IW-S (45mm)

Concrete

TI-S-Z10 (45mm)

Steel

BS-S (60mm)

Pre-Formed Corners
Pre-formed corners are to be fixed with a minimum of two staggered fixings per leg.

Note:

For advice regarding waterproofing into the trim please refer to the Sika Liquid Plastics specification
