Sikaplan®-1650 DPM Gas Barrier

Sikaplan®-1650 DPM Gas Barrier

Multi-layer, low density polyethylene membrane for ground level damp-proofing

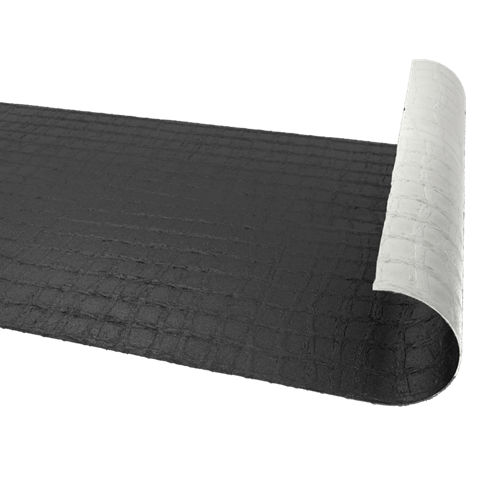

Sikaplan®-1650 DPM Gas Barrier is a multi-layer, low density polyethylene membrane, reinforced with a polypropylene reinforcing grid with an integral aluminium foil. Sikaplan®-1650 DPM Gas Barrier is specifically designed and manufactured to perform as a Methane, Carbon Dioxide, Radon Ground Gas, air and moisture protection system.

  • Fully tested to BS 8485:2015+ A1:2019
  • Welded joints for improved sealing
  • In-built grid to give greater strength
  • Fully compatible with below ground waterproofing systems
Sikaplan®-1650 DPM Gas Barrier
Contact Us
Product Data Sheet Show all documents

Usage

  • Ground level DPM
  • Building protection from ground gases, radon, methane and carbon dioxide


Advantages

  • Fully tested to BS 8485:2015+ A1:2019
  • Welded joints for improved sealing
  • In-built grid to give greater strength
  • Fully compatible with below ground waterproofing systems

Packaging

2m x 50m roll.  Roll weights can be in excess of 20kg and hence appropriate care and equipment is required for unloading and handling.

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Conforms to the requirements of EN13967:2012 and BS 8485:2015+ A1:2019
  • NHBC Standards Compliant
  • BBA Certified – Certificate No: 20/5738
Product Information

Shelf Life

Indefinite

Storage Conditions

Rolls of Sikaplan®-1650 DPM Gas Barrier should be stored on stable/level ground and stacked not more than five rolls high, with no other material stacked on top. The rolls can be stored outdoors when packaged, but should be protected from exposure to UV.

Overall Thickness

Thickness

0.6 mm

Thickness - between scrim

0.4 mm Micrometre

Width / Length

2 m x 50 m

Weight370 G/m2
Technical Information

Tensile Strength

Tensile Strength (MD)

600 N/50mm

Tensile Strength (CMD)

480 N/50mm

Elongation

Tensile Elongation (MD)

20%

Tensile Elongation (CMD)

20%

Resistance to Static Puncture

1.25 kN

(EN 12236)

Resistance to Static Load

20 kg

(EN 12730-B)

Water Tightness

Pass

(EN 1296, EN 1367, EN 1928)

Resistance to Tearing (nail shank)

(Nail Shank) MD

330 N

(Nail Shank) CMD

400 N

Chemical Resistance

Methane Permeability

<0.09 ml/m2/day/atm

Carbon Dioxide Permeability

<0.09 ml/m2/day/atm

Radon Permeability

8.0 x 10-15 m2/s

Reaction to Fire

Class E

(EN 13501-1)

Application

Application steps

APPLICATION INSTRUCTIONS

INSTALLATION

Sikaplan®-1650 DPM Gas Barrier should be installed in accordance with the product installation guidelines, and in accordance with BS 8485:2015+ A1:2019.

JOINTING AND SEALING

It is recommended Sikaplan®-1650 DPM Gas Barrier be heat welded where possible, with welding carried out by competent personnel with suitable qualifications in accordance with best practice, and guidance contained within BS 8485:2015+ A1:2019. Sikaplan®-1650 DPM Gas Barrier should be overlapped by at least
100mm. If taping joints, only suitable tape must be used, ensuring application with a silicone roller to remove trapped air. Pre-formed details, or Self Adhesive Gas Membrane are available for sealing around protuberances.
