SikaRoof® Decor Profile PVC

SikaRoof® Decor Profile PVC

Decor Profile for PVC Roof System

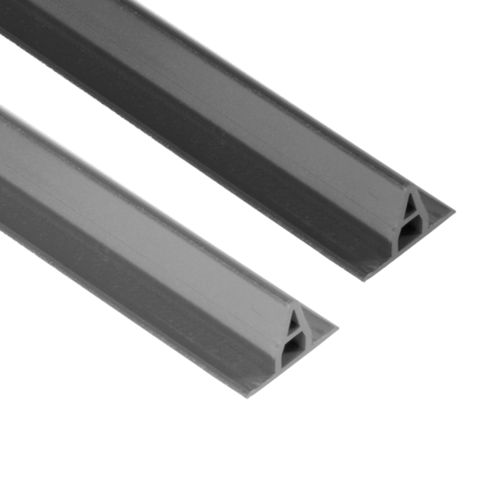

SikaRoof® Decor Profile PVC is a polyvinyl chloride (PVC) extruded profile for welding to PVC sheet waterproofing membranes to replicate standing seam metal roofing systems.

  • Easily applied
  • Suitable for any roof slope
  • Hot air weldable
Contact Us
Product Data Sheet Show all documents

Usage

SikaRoof® Decor Profile PVC creates an appearance of a standing seam metal roof

Advantages

  • Easily applied
  • Suitable for any roof slope
  • Hot air weldable

Packaging

Cardboard tube of 25 pieces including connecting plugs.

Colour

Surface:

smooth

Colour:

light grey (nearest RAL 7047)
lead grey (nearest RAL 7012)
Pale green (nearest RAL 6021)

Product Details

Product Information

Chemical Base

Polyvinyl chloride (PVC), profile extruded

Shelf Life

5 years from date of production

Storage Conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Always refer to packaging.

Length

3000 mm (+10 mm / -5 mm)

Width

35 mm ± 1,3 mm
System information

System Structure

The following products/tools must be considered for use depending on roof design:

  • Sikaplan® SGK-types
  • Sikaplan® G-types

Compatibility

Compatible with Sikaplan® PVC Roof waterproofing membranes

Application

Application Information

Ambient Air Temperature

-20 °C min. / +60 °C max.

Substrate Temperature

-30 °C min. / +60 °C max.
Application steps

SUBSTRATE PREPARATION

The Roof waterproofing membrane must be clean to achieve proper hot air welding

APPLICATION

Installation procedure

Ensure  the SikaRoof® Decor Profile PVC is tacked into position at the desired centres and hot air weld into place to the roof membrane. Join two or more SikaRoof® Decor Profile PVCs together, using the connector plugs supplied. Finish the end of the profile with a piece of hot air welded membrane if required.
