Sikagard®-403 W

Sikagard®-403 W

Single component, waterborne, modified acrylic resin wall coating

Sikagard®-403 W is a single component, waterborne modified acrylic resin based intermediate and surface coating, containing an antimicrobial additive.

  • Seamless, easy to clean finish
  • Good resistance to repeated cleaning regimes using mild detergents and cleaning solutions
  • Tough and highly durable
  • Good water vapour permeability
  • More flexible in comparison to standard acrylic paints, improves resistance to cracking and flaking
  • Ultra-low emissions
  • Good opacity
  • Odourless
  • Easy to apply
Product Data Sheet Show all documents

Usage

  • Application on concrete, bricks, cement and gypsum based substrates, metal surfaces, timber, tiles and plastic
  • Embedment, intermediate and top coat for internal walls and ceilings
  • Suitable for production facilities in the pharmaceutical, medical engineering, food and beverage industry, as well as, hospitals, prisons, healthcare and leisure facilities

Advantages

  • Seamless, easy to clean finish
  • Good resistance to repeated cleaning regimes using mild detergents and cleaning solutions
  • Tough and highly durable
  • Good water vapour permeability
  • More flexible in comparison to standard acrylic paints, improves resistance to cracking and flaking
  • Ultra-low emissions
  • Good opacity
  • Odourless
  • Easy to apply

Packaging

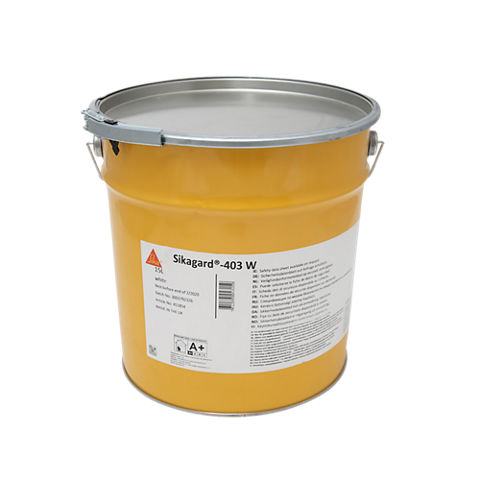

5.0 l = 6.60 kg drums
15.0 l = 19.80 kg drums

Colour

Available colours BS08B15, BS12B21, BS14C31, BS18E49, BS18E50, RAL1013, RAL3015, RAL7035, RAL9001, White


Product Details

Sustainability / Certifications / Approvals

ENVIRONMENTAL INFORMATION

LEED Rating
Conformity with LEED v2009 IEQc 4.2: Low-Emitting Materials - Paints and Coatings



APPROVALS / STANDARDS

  • Eurofins, test report No. 392-2014-0027 0301, VOC emission acc. French Regulations Decret DEVL 11019093D, March 23, 2011 and Decret DEVL 11034675A, February 15, 2016.
  • PRA, test report No. 77388-004, gloss, fineness, grind wet scrub resistance and contrast ratio according to EN 13300, September 30, 2014.
  • Exova Warrigtonfire, test report No. WF 343711, classification reaction to fire according to EN 13501-1:2007+A1:2009, September 15, 2014.
  • IMSL, test report No. 2014/02/011.1A-1, determination of antibacterial activity according to ISO 22196, December 29th 2014.
  • IMSL, test report No. 2014/12/009.2A, determination of resistance of surface coatings to mould growth according to BS 3900, Part G6, April 21, 2015
  • 4wardtesting, test report No. C2882, water vapour transmission rate and water vapour permeability according to ISO 7783-1:2000 (superseded by EN ISO 7783:2011, November 30, 2011), August 29, 2014.
  • Eurofins, test report No. 392-2015-00292201, determination of VOC and SVOC content according ISO 11890-2, CEPE/EC/2015-04-13 and Commission Decision 2014/312/EU, October 6, 2015
  • KIWA GmbH Polymer Institute, test report P10108-E, determination of crack bridging properties according to DIN EN 1062-7, April 12, 2016
  • Campden BRI Group, test report No. S/REP/139540/1Sensory Evaluation of the Taint Potential, Triangle Test Method TES -S-002, Odour Transfer Method, July 15, 2016


Product Information

Chemical Base

Styrene-acrylic copolymer dispersion, waterborne

Shelf Life

12 months from date of production

Storage Conditions

Store in closed, sealed and undamaged packaging in dry conditions at temperatures between +5 °C and +30 °C. Protect from direct sunlight and frost.

Density

~1.34 kg/l (+23 °C)

(EN ISO 2811-1)

Solid content by weight

~61 %

Solid content by volume

~47 %
Technical Information

Tensile Strength

~2.8 N/mm² unreinforced

(EN ISO 527-3)

Tensile adhesion strength

> 1.5 N/mm²          to concrete primed with Sika Bonding Primer

(ISO 4624)

Chemical Resistance

Resistant to mild detergents and cleaning agents. Please contact Sika technical service for specific information.

Disinfection with Hydrogen Peroxide Vapour:

  • Resistant when using Steris VHP technology
  • Resistant to PEA vaporisation technology, when a system build up with glass fibre reinforcement is used
  • Resistant when using Oxypharm vaporiser type NOCOSPRAY under following conditions:

Disinfectant

Concentration

Setting at vaporiser

Contact time

NOCOLYSE Mint (6 %)

1 ml/m³

20 m³
(1.5 minutes vaporisation)

30 min

NOCOLYSE One Shot (12 %)

3 ml/m³
(2 cycles)

45m³
(5 minutes vaporisation)

30 min

NOCOLYSE Food (7.9 %)

1 ml/m³

20 m³
(1.5 minutes vaporisation)

30 min

NOCOLYSE Food (7.9 %)5 ml/m³
(2 cycles)		75m³
(5 minutes vaporisation)		60 min

Permeability to Water Vapour

~37.5 g/m² in 24 hours

(EN ISO 7783-1)

Application

Application Information

Layer Thickness

Wet film thickness

~200 µm per layer unreinforced

Dry film thickness

~100 µm per layer unreinforced

Product Temperature

+8 °C min. / +35 °C max.

Ambient Air Temperature

+8 °C min. / +35 °C max.

Relative Air Humidity

< 80 %

Dew Point

Beware of condensation substrate temperature must be at least +3 °C above dew point

Substrate Temperature

+8 °C min. / +35 °C max.

Substrate Moisture Content

Visible damp free

Curing Time

Before overcoating with Sikagard®-403 W

Temperature

Minimum

Maximum

+10 °C

4 hours

7 days
+20 °C

 2 hours

7 days
+30 °C

 1 hour

 7 days



Before overcoating with 2-comonent top coats

Temperature

Minimum

Maximum

+10 °C16 hours7 days
+20 °C8 hours7 days
+30 °C 4 hours7 days
Consumption

Consumption

~0.28 kg/m² per layer unreinforced

~0.80 kg/m² per layer for reinforcement with Sika Reemat Premium
Application steps

APPLICATION

Stir product mechanically until a uniform liquid has been achieved.
Use a low speed electrical stirrer (300-400 rpm) to avoid air entrapment.
For roller application use short piled roller.

For airless application use tip sizes from 0.38 to 0.53 mm and angle from 40° to 60°.

CLEANING OF TOOLS

Clean all tools with water immediately after use. Hardened and/or cured material can only be removed mechanically.
